Automation technology - Sensors and actuators
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures, connectors that are mounted on cables, and other connection componentsdistributing signal and power.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of the cable outgoing.
Locking Type
The locking system describes how the pin and socket elements are joined.
Coding
The connector elements, pin and socket, must be brought into form-fitting alignment with one another (coding) before locking. This prevents mismating.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
IP-Rating
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.
Mounting orientation
The mounting orientation for flange connectors defines the side from which an item can be mounted.
Mounting thread
There are different thread sizes for the device-side connection, depending on the design. These are available in different variants.
Show products
  1. Products
  2. Automation technology - Sensors and actuators
  3. Adapter and Control cabinet feedthroughs

M12/M8 Adapters and Lead throughs for Control Cabinet

Our M12/M8 adapters as well as lead throughs for control cabinet are the ideal choice for industrial environments requiring robust and compact signal and power connectivity. Available in 3-, 4-, 5-, and 8-pin versions, these connectors are engineered for versatility across automation, control cabinets, and sensor applications.


Designed with A-coding and locking options including M8/M8, M12/M8, and M12/M12, they support rated voltages of 30V, 60V, and 250V and currents up to 4A. Their IP67 protection rating ensures resistance to dust and moisture, making them suitable for harsh industrial conditions. Options include both shielded and unshielded versions for optimal EMC performance, and select models carry UL approval for use in the US and Canada.


The durable metal locking system provides secure connections in environments exposed to vibrations. These panel mount solutions ensure simple and secure installation for reliable signal transmission.

Automation Technology - Sensors and Actuators--Adapter_765_Adapter_1
09 5283 00 03
09 5283 00 03 - M8/M12 Adapter, Contacts: 3, unshielded, pluggable, IP67
series 765, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Adapter_765_Adapter_1
09 5284 00 04
09 5284 00 04 - M12/M8 Adapter, Contacts: 4, unshielded, pluggable, IP67
series 765, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Adapter_765_Adapter
09 5280 00 03
09 5280 00 03 - M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67
series 765, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Adapter_765_Adapter
09 5281 00 04
09 5281 00 04 - M12/M8 Adapter, Contacts: 4, unshielded, pluggable, IP67
series 765, Automation Technology - Sensors and Actuators
Details

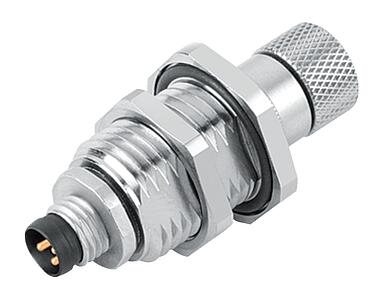

Automation Technology - Sensors and Actuators--Lead-through for control cabinet_765_1_SSDF_M8
09 5250 00 03
09 5250 00 03 - M8/M8 Lead-through for control cabinet, Contacts: 3, shielded, pluggable, IP67, M8x1.0
series 765, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Lead-through for control cabinet_765_1_SSDF_M8
09 5251 00 04
09 5251 00 04 - M8/M8 Lead-through for control cabinet, Contacts: 4, shielded, pluggable, IP67, M8x1.0
series 765, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Lead-through for control cabinet_763_2_SSDF_DS4pol
09 5240 10 04
09 5240 10 04 - M12 Lead-through for control cabinet, Contacts: 4, shielded, pluggable, IP67, UL 2238, M12x1.0
Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Lead-through for control cabinet_763_2_SSDF_DS5pol
09 5241 10 05
09 5241 10 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, UL 2238, M12x1.0
Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators--Lead-through for control cabinet_763_2_SSDF_DS8pol
09 5244 10 08
09 5244 10 08 - M12 Lead-through for control cabinet, Contacts: 8, shielded, pluggable, IP67, UL 2238, M12x1.0
Automation Technology - Sensors and Actuators
Details
