  1. Products
  2. Miniature connectors
  3. M16-X

Miniature M16 connector X-coded

Series PDF (598 KB)
Accessory as PDF (148 KB)

The binder 415 series X-coded M16 connectors from binder can handle data transfer rates up to an impressive 10 Gbits/s. The 8-contact series includes a male and female cable connector and a female flange connector for front connection. When mated, they have IP67 protection. They are available with dip solder or insulation displacement connections.

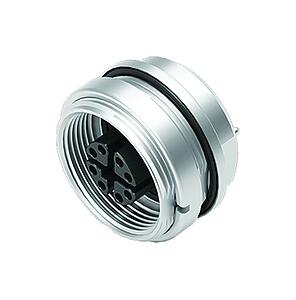

Automation Technology - Data Transmission--Female panel mount connector_415-X_4_FD
99 4174 90 08
M16 Female panel mount connector, Contacts: 8, shieldable, THR, IP67, M18x0,75, Rear mounting
M16-X, series 415, Miniature Connectors
Details

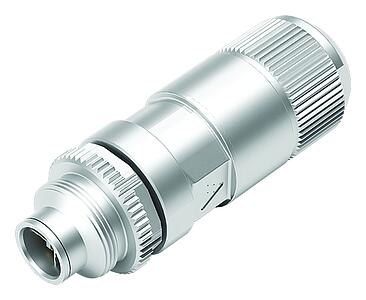

Automation Technology - Data Transmission--Male cable connector_415-X_1_KS
99 4171 00 08
M16 Male cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67
M16-X, series 415, Miniature Connectors
Details

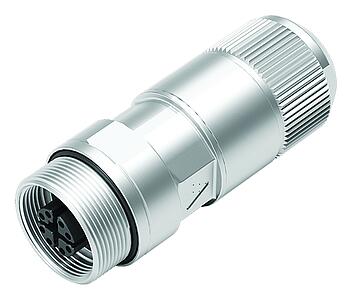

Automation Technology - Data Transmission--Female cable connector_415-X_2_KD
99 4172 00 08
M16 Female cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67
M16-X, series 415, Miniature Connectors
Details
