  1. Products
  2. Subminiature connectors
  3. Push-Pull IP67

Subminiature push pull connectors IP67

Series PDF (559 KB)
Accessory as PDF (65 KB)

With a push-pull locking system and protection of up to IP67, the 430 series comes in both cable connector and panel mount versions – both of which are shieldable if required. Available with 3 to 8 contacts rated between 1A and 4A, termination is solder with wire sizes from 0.14mm² to 0.25mm². The diameter of the cable connector is 14.5mm while the panel mount version measures 17.5mm.

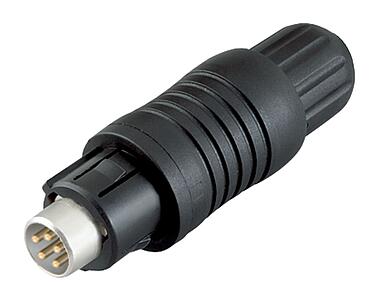

--Male cable connector_430_1_KS_o.K
99 4905 00 03
Male cable connector, Contacts: 3, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Male cable connector_430_1_KS_o.K
99 4909 00 04
Male cable connector, Contacts: 4, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Male cable connector_430_1_KS_o.K
99 4913 00 05
Male cable connector, Contacts: 5, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Male cable connector_430_1_KS_o.K
99 4925 00 07
Male cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Male cable connector_430_1_KS_o.K
99 4929 00 08
Male cable connector, Contacts: 8, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details

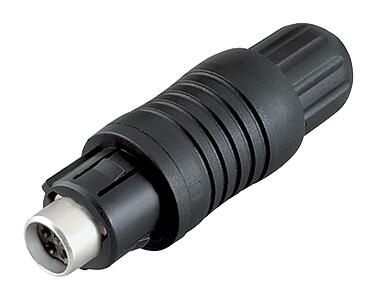

--Female cable connector_430_2_KD_o.K
99 4906 00 03
Female cable connector, Contacts: 3, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Female cable connector_430_2_KD_o.K
99 4910 00 04
Female cable connector, Contacts: 4, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Female cable connector_430_2_KD_o.K
99 4914 00 05
Female cable connector, Contacts: 5, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Female cable connector_430_2_KD_o.K
99 4926 00 07
Female cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details
--Female cable connector_430_2_KD_o.K
99 4930 00 08
Female cable connector, Contacts: 8, 3.5-5.0 mm, shieldable, solder, IP67
Push Pull, series 430
Details

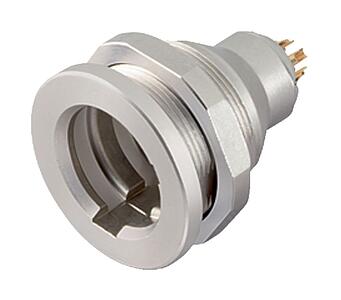

--Female panel mount connector_430_3_FD_vh
09 4907 025 03
Male panel mount connector, Contacts: 3, unshielded, solder, IP40
Push Pull, series 430
Details
--Female panel mount connector_430_3_FD_vh
09 4911 025 04
Male panel mount connector, Contacts: 4, unshielded, solder, IP40
Push Pull, series 430
Details
