Automation Technology - Voltage and Power Supply
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • M12The connectors can be screwed together to secure the connection. M stands for metric thread and the number stands for the external diameter.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
  • IP68Fully protects against touch and against the intrusion of dust. Protects against water intrusion in sustained submersion (depth: 2 m; duration: 24 hours), requirements specification by agreement between producer and user.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Automation TechnologyAdvancing digitisation and current manufacturing technologies make possible ever smaller and more high-performance elements in the areas of sensor technology and networking. Here, sensor technology means the detection of physical values and their conversion into electric values. These electric values are converted into a digital signal that can be transmitted by means of bus communication to other bus devices. This will make automated production more modular and flexible in the future, with a preference for standardised connectors like the models M8 and M12. The worldwide availability of the connectors and their adaptation to a broad range of applications have already led to numerous versions, e.g. codings.
Coding
To avoid mismating, the connector elements – the pin and socket – must be brought into form-fitting alignment with one another (coding) before being locked.
  • M12-KThe M12 K-Coding is a power coding designed for voltages of up to 630 V AC. It allows the use of conductors of up to 2.5 mm².
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • screw clampThe wires in a cable are pressed in the contact element radially by means of a screw, establishing the electrical contact.
  • single wiresConnectors with contacts attached to individual wires ex factory. These can then be connected individually.
  1. Products
  2. Automation Technology - Voltage and Power Supply
  3. M12-K

M12-K coded connectors - Automation technology

Series PDF (2 MB)
Accessory as PDF (578 KB)

Connectors of the 824 series with screw locking according to DIN EN 61076-2-111 are K-coded for AC applications. They have 4+PE contacts with a rated current of 12A at 630VAC. These connectors are available in a terminated version, both straight and right-angled. Flange connectors are available with stranded wires.

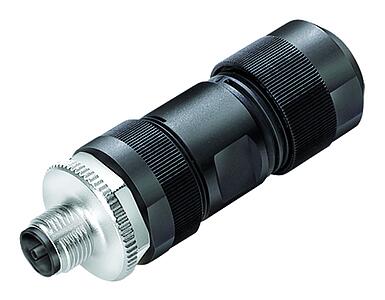

Automation Technology - Voltage and Power Supply-M12-K-Male cable connector_814_1_KS_K-Kod
99 0699 29 05
M12-K Male cable connector, Contacts: 4+PE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL
M12, series 824, Automation Technology - Voltage and Power Supply
Details

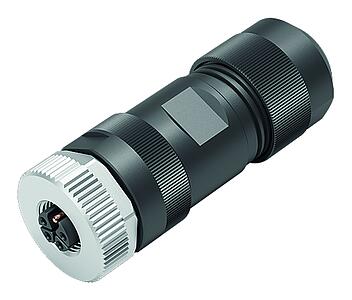

Automation Technology - Voltage and Power Supply-M12-K-Female cable connector_824_2_KD_K
99 0700 29 05
M12-K Female cable connector, Contacts: 4+PE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL
M12, series 824, Automation Technology - Voltage and Power Supply
Details

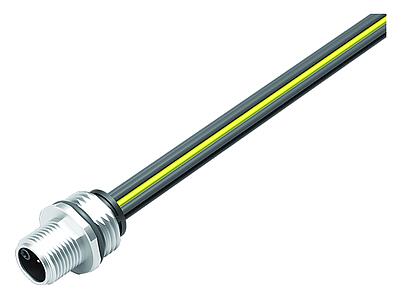

Automation Technology - Voltage and Power Supply-M12-K-Male panel mount connector_814_3_FS_K
09 0701 700 05
M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5
M12, series 824, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply-M12-K-Male panel mount connector_814_3_FS_K
09 0701 400 05
M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5
M12, series 824, Automation Technology - Voltage and Power Supply
Details

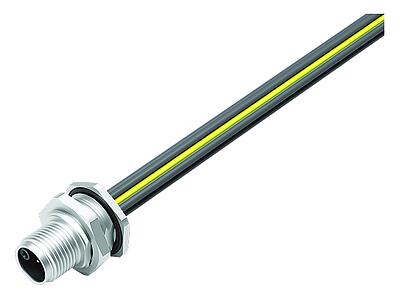

Automation Technology - Voltage and Power Supply-M12-K-Male panel mount connector_824_3_FS_K_vv
09 0701 300 05
M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5, screwable from the front
M12, series 824, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply-M12-K-Male panel mount connector_824_3_FS_K_vv
09 0701 800 05
M12-K Male panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, M16x1.5, screwable from the front
M12, series 824, Automation Technology - Voltage and Power Supply
Details

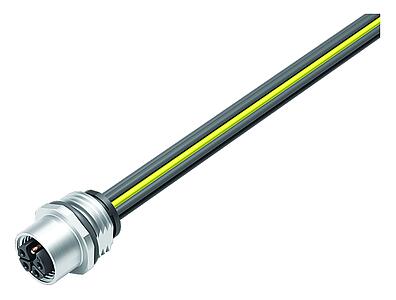

Automation Technology - Voltage and Power Supply-M12-K-Female panel mount connector_814_4_FD_K
09 0702 700 05
M12-K Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5
M12, series 824, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply-M12-K-Female panel mount connector_814_4_FD_K
09 0702 400 05
M12-K Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5
M12, series 824, Automation Technology - Voltage and Power Supply
Details

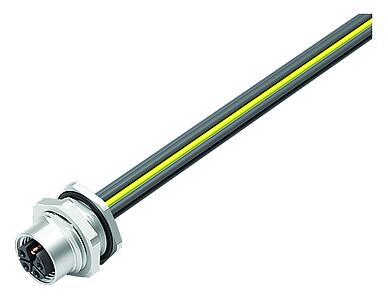

Automation Technology - Voltage and Power Supply-M12-K-Female panel mount connector_824_4_FD_K_vv
09 0702 800 05
M12-K Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5, screwable from the front
M12, series 824, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply-M12-K-Female panel mount connector_824_4_FD_K_vv
09 0702 300 05
M12-K Female panel mount connector, Contacts: 4+PE, unshielded, single wires, IP68, UL, M16x1.5, screwable from the front
M12, series 824, Automation Technology - Voltage and Power Supply
Details

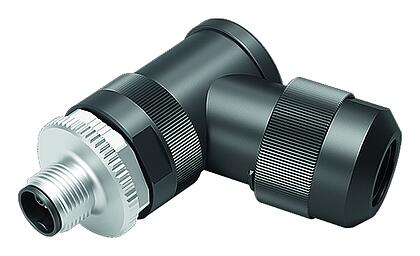

Automation Technology - Voltage and Power Supply-M12-K-Male angled connector_814_1_WS_K
99 0699 58 05
M12-K Male angled connector, Contacts: 4+PE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL
M12, series 824, Automation Technology - Voltage and Power Supply
Details

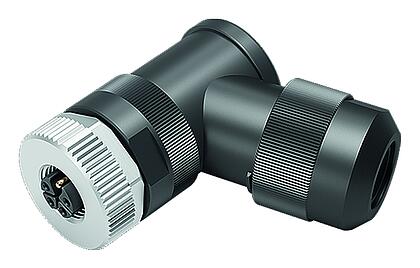

Automation Technology - Voltage and Power Supply-M12-K-Female angled connector_824_2_WD_K
99 0700 58 05
M12-K Female angled connector, Contacts: 4+PE, 8.0-13.0 mm, unshielded, screw clamp, IP67, UL
M12, series 824, Automation Technology - Voltage and Power Supply
Details
