Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Locking Type
The locking system describes how the pin and socket elements are joined.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Our articles have various approvals which can be preselected here. can be preselected here.
  1. Products
  2. Connectors for medical applications

Connectors for medical applications

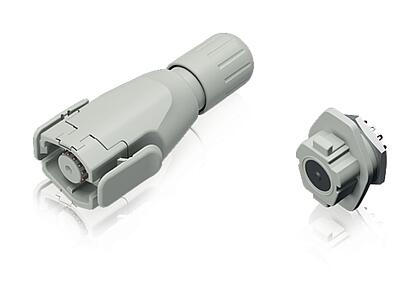

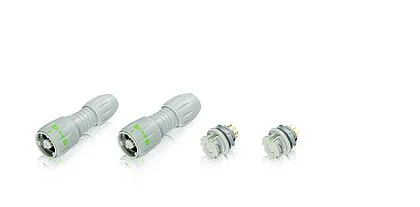

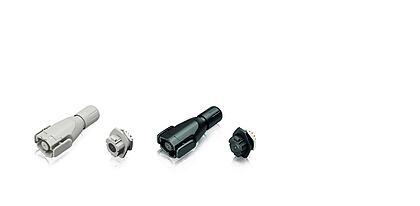

For the highly sensitive environment of "Health Care", in addition to the ELC Series 570 with its unique snap-in locking system, we also offer medical-grade versions of three of our industrial snap-in and bayonet connector systems. All four series are grey-white as standard, but other colours can be ordered. Two series have more than 500 mating cycles, two have more than 5,000, which is very important especially in this field. All four series are made of high-quality materials and offer the quality and reliability required in the medical field.


• Snap-in and bayonet locking.
• Up to 5,000 mating cycles
• IP54 and IP67
• 3 to 12 poles
• Solder and dip solder connections
• High quality materials
• ISO 13485 certified company
• Clearance and creepage distances available on request
• Disinfectant resistance (see brochure connectors for medical applications)
• Biocompatibility (DIN EN ISO 10993-5)
• FDA-compliant for aqueous foodstuffs according to regulation EG596/2009
• DEHP-free (except contacts)
• DIN EN 60601-11 Shock and vibration test
• DIN EN 60601-1 Drop test
