  1. Products
  2. Subminiature connectors
  3. M9 IP67

Subminiature M9 connector IP67

Series PDF (2 MB)
Accessory as PDF (207 KB)

These subminiature M9 connectors are available with 2 to 8 contacts for panel mounting or as cable connectors where binder also offers moulded versions. Both versions are shieldable. Cable connectors feature solder termination while the panel mount versions are available with solder and dip solder termination. Degree of protection is IP67 with an operating temperature range is -40°C to +85°C.

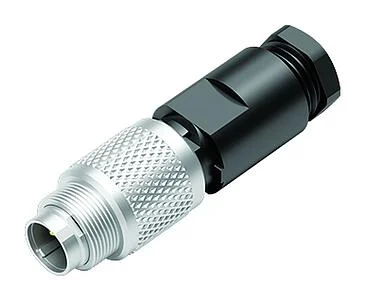

--Kabelstecker_712_1_KS_2pol
99 0401 00 02
Male cable connector, Contacts: 2, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_3pol
99 0405 00 03
Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_4pol
99 0409 00 04
Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712
Details

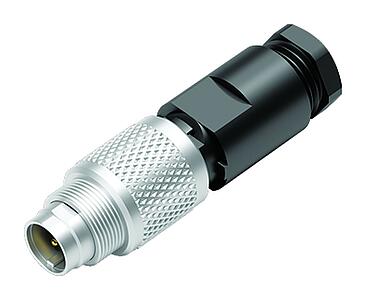

--Kabelstecker_712_1_KS_5pol
99 0413 00 05
Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_7pol
99 0421 00 07
Male cable connector, Contacts: 7, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_8pol
99 0425 00 08
Male cable connector, Contacts: 8, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712
Details

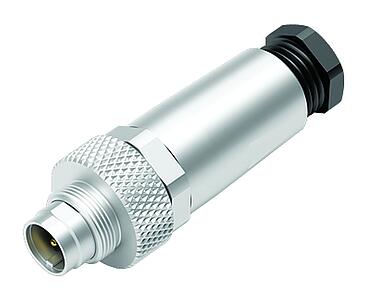

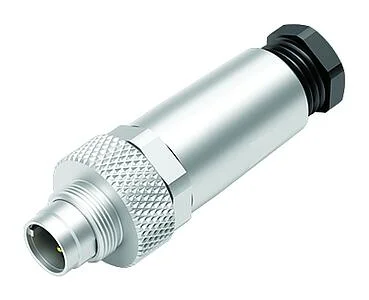

--Kabelstecker_712_1_KS_EMV_2pol
99 0401 10 02
Male cable connector, Contacts: 2, 3.5-5.0 mm, shieldable, solder, IP67
M9, series 712
Details

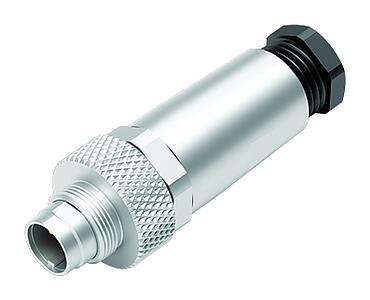

--Kabelstecker_712_1_KS_EMV_3pol
99 0405 10 03
Male cable connector, Contacts: 3, 3.5-5.0 mm, shieldable, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_EMV_4pol
99 0409 10 04
Male cable connector, Contacts: 4, 3.5-5.0 mm, shieldable, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_EMV_5pol
99 0413 10 05
Male cable connector, Contacts: 5, 3.5-5.0 mm, shieldable, solder, IP67
M9, series 712
Details
--Kabelstecker_712_1_KS_EMV_7pol
99 0421 10 07
Male cable connector, Contacts: 7, 3.5-5.0 mm, shieldable, solder, IP67
M9, series 712
Details

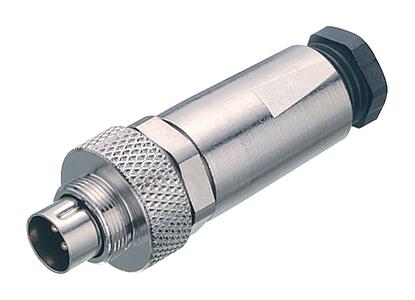

--Male cable connector_712_1_10
99 0425 10 08
Male cable connector, Contacts: 8, 3.5-5.0 mm, shieldable, solder, IP67
M9, series 712
Details
