Miniature Bayonet Connectors NCC

Series PDF (966 KB)
These reliable circular connectors in cable and flange versions with bayonet locking correspond to protection class IP67 when mated. The flange version offers IP67 protection even when unmated. 770 series connectors have 8 gold-plated contacts with a rated current of 2 A each. Cable glands are suitable for cables with a diameter of 2.5 to 4 mm, 4 to 6 mm and 6 to 8 mm. Users can expect more than 5000 mating cycles.
binder NCC Steckverbinder Serie 770 - wasserdichte Steckverbinder mit vielfältigen Einsatzgebieten
Watch now on YouTube

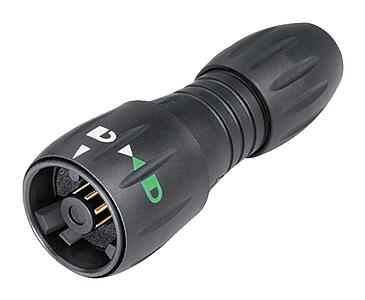

Miniature Connectors-Bayonet NCC-Male cable connector_770_1_NCC
99 0771 000 08
Bayonet Male cable connector, Contacts: 8, 2.5-4.0 mm, unshielded, solder, IP67
Bayonet NCC, series 770, Miniature Connectors
Details
Miniature Connectors-Bayonet NCC-Male cable connector_770_1_NCC
99 0771 001 08
Bayonet Male cable connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67
Bayonet NCC, series 770, Miniature Connectors
Details

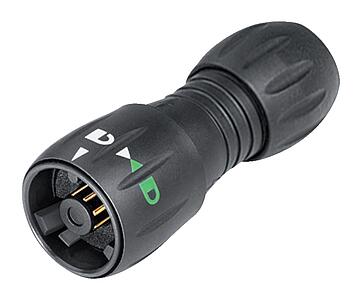

Miniature Connectors-Bayonet NCC-Male cable connector_770_1_NCC_GKA
99 0771 002 08
Bayonet Male cable connector, Contacts: 8, 6.0-8.0 mm, unshielded, solder, IP67
Bayonet NCC, series 770, Miniature Connectors
Details
Miniature Connectors-Bayonet NCC-Female panel mount connector_770_2_NCC
09 0774 000 08
Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67
Bayonet NCC, series 770, Miniature Connectors
Details

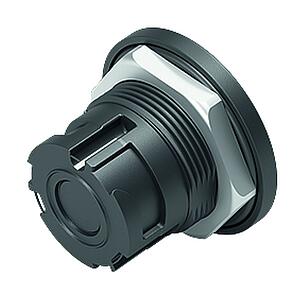

Miniature Connectors-Bayonet NCC-Female panel mount connector_770_NCC_2_FD_RWM_l
09 0774 180 08
Bayonet Female panel mount connector, Contacts: 8, unshielded, solder, IP67 when unplugged as well, front fastened
Bayonet NCC, series 770, Miniature Connectors
Details

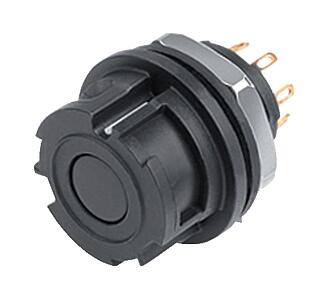

Miniature Connectors-Bayonet NCC-Female panel mount connector_770_2_NCC_tl
09 0774 090 08
Bayonet Female panel mount connector, Contacts: 8, unshielded, THT, IP67
Bayonet NCC, series 770, Miniature Connectors
Details
Miniature Connectors-Bayonet NCC-Female panel mount connector_770_NCC_2_FD_RWM_tl
09 0774 190 08
Bayonet Female panel mount connector, Contacts: 8, unshielded, THT, IP67 when unplugged as well, front fastened
Bayonet NCC, series 770, Miniature Connectors
Details

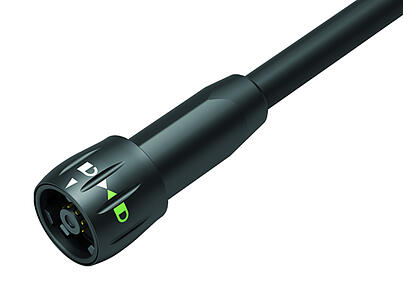

Miniature Connectors-Bayonet NCC-Male cable connector_770_1_KS_u_schwarz_PUR
77 6005 0000 50008-0200
Bayonet Male cable connector, Contacts: 8, unshielded, solder, IP67, PUR, black, 8 x 0.25 mm², 2 m
Bayonet NCC, series 770, Miniature Connectors
Details
Miniature Connectors-Bayonet NCC-Male cable connector_770_1_KS_u_schwarz_PUR
77 6005 0000 50008-0500
Bayonet Male cable connector, Contacts: 8, unshielded, solder, IP67, PUR, black, 8 x 0.25 mm², 5 m
Bayonet NCC, series 770, Miniature Connectors
Details

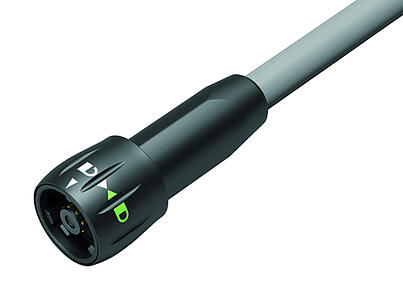

Miniature Connectors-Bayonet NCC-Male cable connector_770_1_KS_u_schwarz_PVC
77 6005 0000 20008-0200
Bayonet Male cable connector, Contacts: 8, unshielded, solder, IP67, PVC, grey, 8 x 0.25 mm², 2 m
Bayonet NCC, series 770, Miniature Connectors
Details
Miniature Connectors-Bayonet NCC-Male cable connector_770_1_KS_u_schwarz_PVC
77 6005 0000 20008-0500
Bayonet Male cable connector, Contacts: 8, unshielded, solder, IP67, PVC, grey, 8 x 0.25 mm², 5 m
Bayonet NCC, series 770, Miniature Connectors
Details

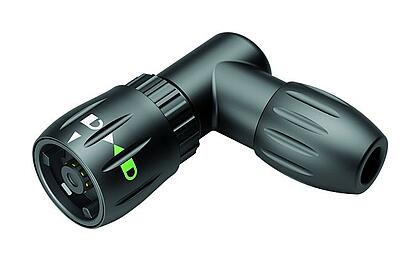

Miniature Connectors-Bayonet NCC-Male angled connector_770_1_WS_4-6
99 0773 001 08
Bayonet Male angled connector, Contacts: 8, 4.0-6.0 mm, unshielded, solder, IP67
Bayonet NCC, series 770, Miniature Connectors
Details
