M12-S coded connectors - Automation technology

Series PDF (2 MB)
Accessory as PDF (578 KB)

The S-coded M12 connectors from binder have been specifically developed for the demanding requirements of modern industrial applications. They enable high-performance current transmission of up to 630 V AC and 16 A in alternating current systems – ideal for use in two-phase AC networks, for motors, drives, control and power supply systems, as well as in machines, robots, conveyor systems, and lifting systems.


Thanks to the IP65 and IP67 protection classes, the connectors are reliably protected against dust, moisture, and other environmental influences. Their compact design makes them particularly suitable for use in space-critical, modular systems.


M12 Connectors S-coded


The M12-S connectors thus provide a robust, durable, and secure connection solution for industrial applications with high demands.


Overview of M12 connectors



M12-Power (S, K, T, L) | Connectors for power applications
Watch now on YouTube
Automation Technology - Voltage and Power Supply--Male cable connector_814_1_KS_AC
99 0685 19 03
M12 Male cable connector, Contacts: 2+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL 2238
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Male cable connector_814_1_KS_AC
99 0689 19 04
M12 Male cable connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP67, UL 2238, VDE
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details

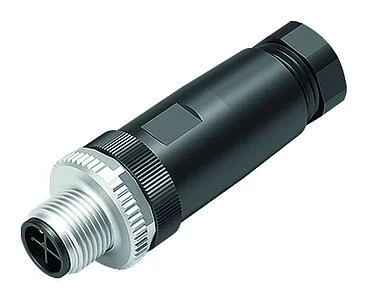

Automation Technology - Voltage and Power Supply--Male cable connector_814_1_KS_6-8mm
99 0689 32 04
M12 Male cable connector, Contacts: 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP67, UL 2238, VDE
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_814_2_KD_Power_u
77 0690 0000 50703-0200
M12 Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, UL 2238, PUR, black, 3 x 1.50 mm², 2 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_814_2_KD_Power_u
77 0690 0000 50703-0500
M12 Female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, UL 2238, PUR, black, 3 x 1.50 mm², 5 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_814_2_KD_Power_u
77 0690 0000 50704-0200
M12 Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, UL 2238, PUR, black, 4 x 1.50 mm², 2 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automation Technology - Voltage and Power Supply--Female cable connector_814_2_KD_Power_u
77 0690 0000 50704-0500
M12 Female cable connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, UL 2238, PUR, black, 4 x 1.50 mm², 5 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automatisierungstechnik - Spannungs- und Leistungsversorgung--Winkelstecker_814_1_WS_Power_u
77 0687 0000 50704-0200
M12 Male angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, UL, PUR, black, 4 x 1.50 mm², 2 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automatisierungstechnik - Spannungs- und Leistungsversorgung--Winkelstecker_814_1_WS_Power_u
77 0687 0000 50704-0500
M12 Male angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, UL, PUR, black, 4 x 1.50 mm², 5 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automatisierungstechnik - Spannungs- und Leistungsversorgung--Winkeldose_814_2_WD_Power_u
77 0694 0000 50704-0200
M12 Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, UL, PUR, black, 4 x 1.50 mm², 2 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
Automatisierungstechnik - Spannungs- und Leistungsversorgung--Winkeldose_814_2_WD_Power_u
77 0694 0000 50704-0500
M12 Female angled connector, Contacts: 3+PE, unshielded, moulded on the cable, IP68, UL, PUR, black, 4 x 1.50 mm², 5 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details

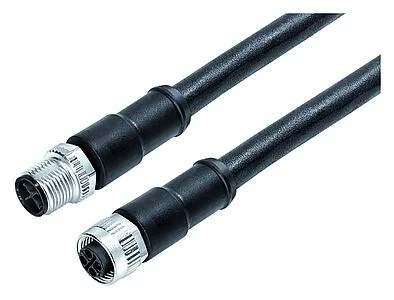

Automation Technology - Voltage and Power Supply--Connecting cable male cable connector - female cable connector_814_VL_KS_KD_Power
77 0690 0689 50703-0200
M12 Connecting cable male cable connector - female cable connector, Contacts: 2+PE, unshielded, moulded on the cable, IP68, UL 2238, PUR, black, 3 x 1.50 mm², 2 m
M12-S, series 814, Automation Technology - Voltage and Power Supply
Details
