Connectors for medical applications
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Connectors for medical applicationsConnectors in grey white in accordance with RAL 9002 with snap-in and bayonet locking systems
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • solderThe contact and the individual wires of a cable are connected using solder.
  1. Products
  2. Connectors for medical applications
  3. Snap-in IP67, subminiature

Snap-in IP67 subminiature connectors for medical applications

Series PDF (1 MB)
Accessory as PDF (249 KB)

The medical-grade 620 Series, which is IP67 when mated, includes snap-in connectors available in cable and flange versions. Cable and flange connectors are grey-white and users can order 3, 4, 5 or 8 contacts with rated currents between 1 A and 3 A (depending on the number of contacts). Cable connectors have solder connection, flange connectors solder/ dip solder connection. More than 500 mating cycles are possible.

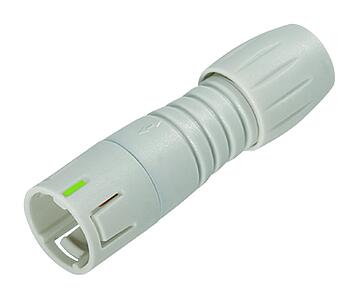

Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED
99 9205 400 03
Snap-In IP67 (subminiature) Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED
99 9209 400 04
Snap-In IP67 (subminiature) Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED
99 9213 400 05
Snap-In IP67 (subminiature) Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED
99 9225 400 08
Snap-In IP67 (subminiature) Male cable connector, Contacts: 8, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_rot
99 9205 450 03
Snap-In IP67 (subminiature) Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_rot
99 9209 450 04
Snap-In IP67 (subminiature) Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_rot
99 9213 450 05
Snap-In IP67 (subminiature) Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_rot
99 9225 450 08
Snap-In IP67 (subminiature) Male cable connector, Contacts: 8, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details

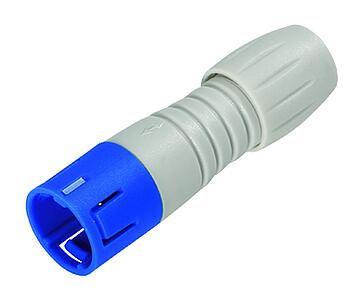

Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_blau
99 9205 460 03
Snap-In IP67 (subminiature) Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_blau
99 9209 460 04
Snap-In IP67 (subminiature) Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_blau
99 9213 460 05
Snap-In IP67 (subminiature) Male cable connector, Contacts: 5, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
Connectors for medical applications-Snap-In IP67 (subminiature)-Male cable connector_620_1_KS_MED_blau
99 9225 460 08
Snap-In IP67 (subminiature) Male cable connector, Contacts: 8, 3.5-5.0 mm, unshielded, solder, IP67
Snap-In, series 620, Connectors for medical applications
Details
