M12-D coded connectors - automation technology

Series PDF (4 MB)
Accessory as PDF (564 KB)

M12 connectors with D-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cutting terminal connection and reach Cat5. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors have excellent shielding and achieve IP67 protection. Shielded M12-D to RJ45 adapters are available straight and angled.

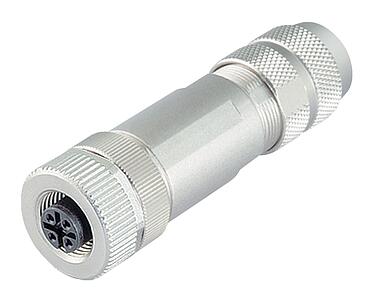

Automation Technology - Data Transmission-M12-D-Female cable connector_713_2_Iris_SK
99 3728 810 04
M12 Female cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

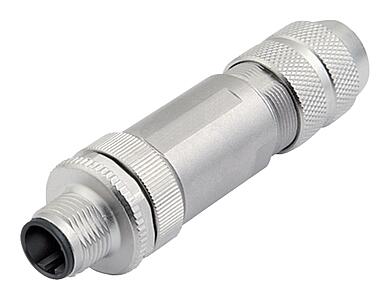

Automation Technology - Data Transmission-M12-D-Male cable connector_825_1_KS_crimp
99 3721 810 04
M12 Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping (Crimp contacts must be ordered separately), IP67
M12-D, series 825, Automation Technology - Data Transmission
Details

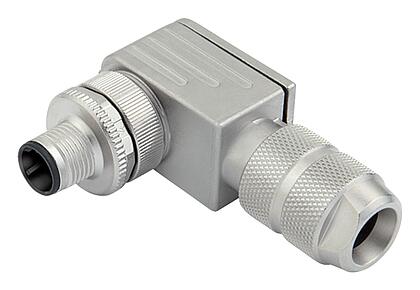

Automation Technology - Data Transmission-M12-D-Male angled connector_825_1_WS_crimp
99 3721 820 04
M12 Male angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, crimping (Crimp contacts must be ordered separately), IP67
M12-D, series 825, Automation Technology - Data Transmission
Details

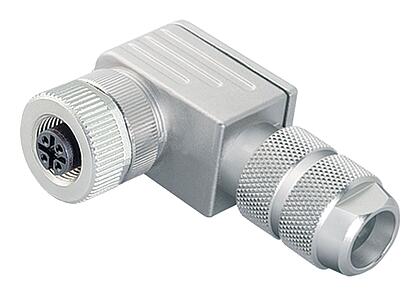

Automation Technology - Data Transmission-M12-D-Female angled connector_713_2_WD_Iris_SK
99 3728 820 04
M12 Female angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

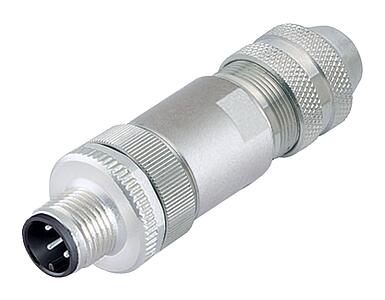

Automation Technology - Data Transmission-M12-D-Male cable connector_713_1_GS5_SK_2015
99 3729 810 04
M12 Male cable connector, Contacts: 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

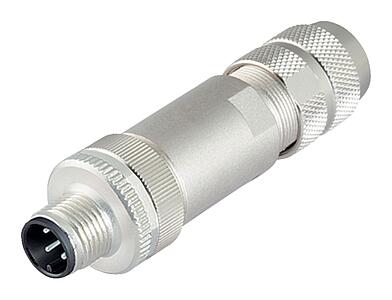

Automation Technology - Data Transmission-M12-D-Male cable connector_713_1_Iris_SK
99 3727 810 04
M12 Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

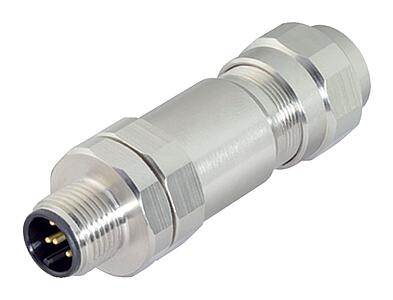

Automation Technology - Data Transmission-M12-D-Male cable connector_713_1_KS_V2A
99 3729 995 04
M12 Male cable connector, Contacts: 4, 5.5-8.6 mm, shieldable, screw clamp, IP69, UL, stainless steel
M12-D, series 825, Automation Technology - Data Transmission
Details

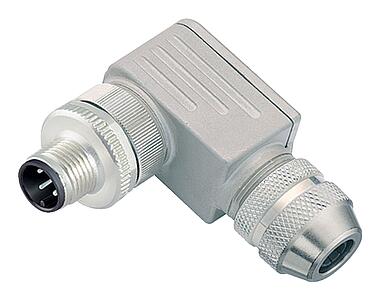

Automation Technology - Data Transmission-M12-D-Male angled connector_713_1_WSS12_SK
99 3729 820 04
M12 Male angled connector, Contacts: 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

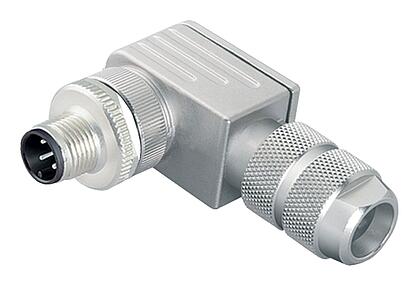

Automation Technology - Data Transmission-M12-D-Male angled connector_713_1_WS_Iris_SK
99 3727 820 04
M12 Male angled connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

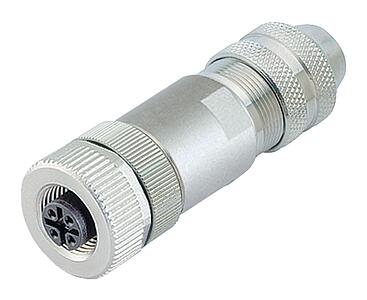

Automation Technology - Data Transmission-M12-D-Female cable connector_713_2_GS4_SK_2015
99 3730 810 04
M12 Female cable connector, Contacts: 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

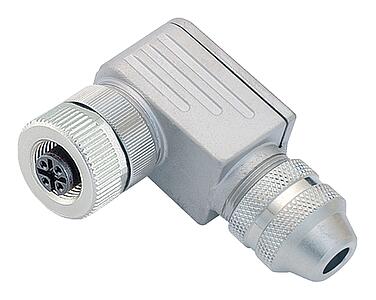

Automation Technology - Data Transmission-M12-D-Female angled connector_713_2_WS4_SK
99 3730 820 04
M12 Female angled connector, Contacts: 4, 6.0-8.0 mm, shieldable, screw clamp, IP67, UL
M12-D, series 825, Automation Technology - Data Transmission
Details

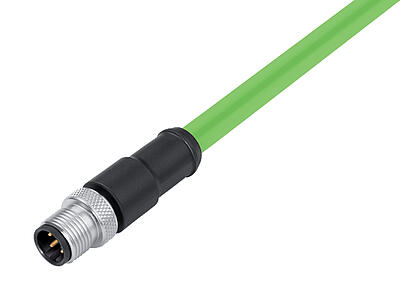

Automation Technology - Data Transmission-M12-D-Male cable connector_825_1_ProfiNET
77 4529 0000 50704-0200
M12 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, UL, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M12-D, series 876, Automation Technology - Data Transmission
Details
