Automation technology - Sensors and actuators
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • M8The connectors can be screwed together to secure the connection. M stands for metric thread and the number stands for the external diameter.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Automation TechnologyAdvancing digitisation and current manufacturing technologies make possible ever smaller and more high-performance elements in the areas of sensor technology and networking. Here, sensor technology means the detection of physical values and their conversion into electric values. These electric values are converted into a digital signal that can be transmitted by means of bus communication to other bus devices. This will make automated production more modular and flexible in the future, with a preference for standardised connectors like the models M8 and M12. The worldwide availability of the connectors and their adaptation to a broad range of applications have already led to numerous versions, e.g. codings.
Coding
To avoid mismating, the connector elements – the pin and socket – must be brought into form-fitting alignment with one another (coding) before being locked.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • screw clampThe wires in a cable are pressed in the contact element radially by means of a screw, establishing the electrical contact.
  • solderThe contact and the individual wires of a cable are connected using solder.
  1. Products
  2. Automation technology - Sensors and actuators
  3. M8-D

M8-D connector - Automation

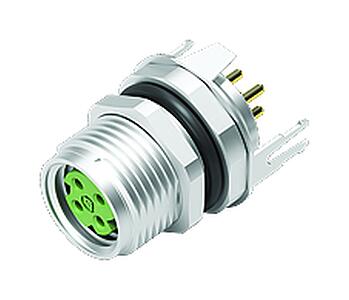

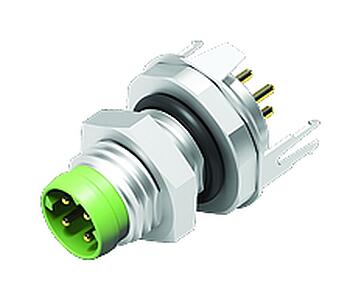

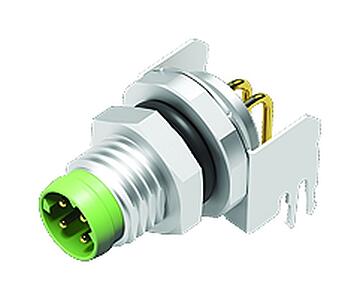

M8 connectors with D-coding of the 818 series according to DIN EN 61076-2-114 are designed for secure Ethernet data transmission up to 100 MBit/s in the network. They have 360° shielding and comply with protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors. The cable connectors that can be assembled have screw terminals, the flange connectors have dip solder terminals and shielding plate.

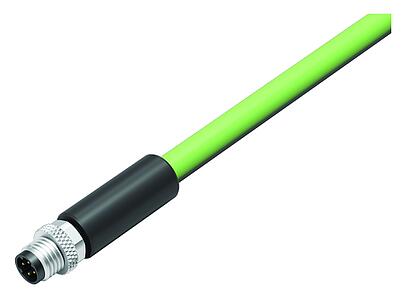

Automation Technology - Sensors and Actuators-M8-D-Male cable connector_818_1_KS-D_u_Ku
77 5429 0000 50704-0200
M8-D Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M8, series 818, Automation Technology - Sensors and Actuators
Details

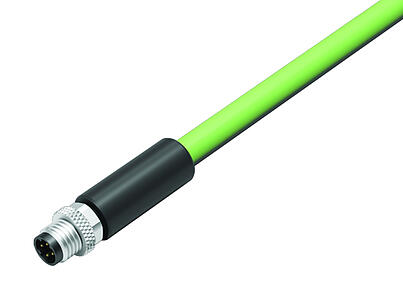

Automation Technology - Sensors and Actuators-M8-D-Male cable connector_818_1_KS-D_u_Ku
77 5429 0000 50704-0500
M8-D Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M8, series 818, Automation Technology - Sensors and Actuators
Details

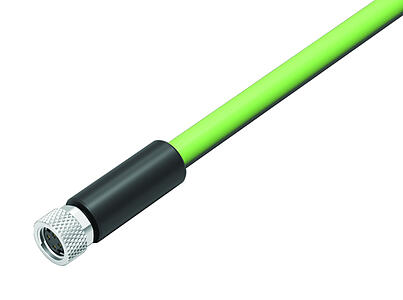

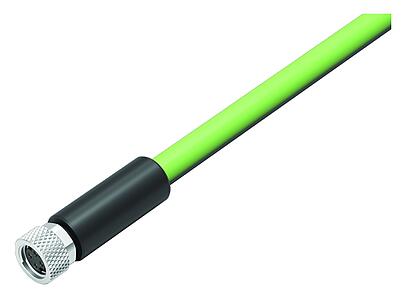

Automation Technology - Sensors and Actuators-M8-D-Female cable connector_818_2_KD-D_u_Ku
77 5430 0000 50704-0200
M8-D Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M8, series 818, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-D-Female cable connector_818_2_KD-D_u_Ku
77 5430 0000 50704-0500
M8-D Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M8, series 818, Automation Technology - Sensors and Actuators
Details

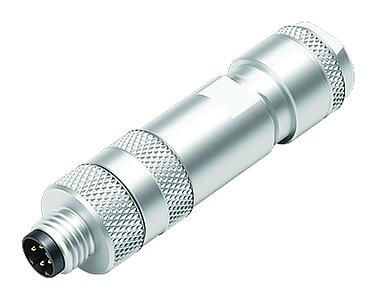

Automation Technology - Sensors and Actuators-M8-D-Male cable connector_818_1_KS_D_met
99 3369 100 04
M8-D Male cable connector, Contacts: 4, 4.0-5.5 mm, shieldable, screw clamp, IP67
M8, series 818, Automation Technology - Sensors and Actuators
Details

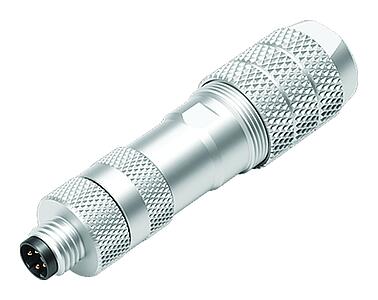

Automation Technology - Sensors and Actuators-M8-D-Male cable connector_818_1_KS_D_met_klein
99 3369 600 04
M8-D Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67
M8, series 818, Automation Technology - Sensors and Actuators
Details

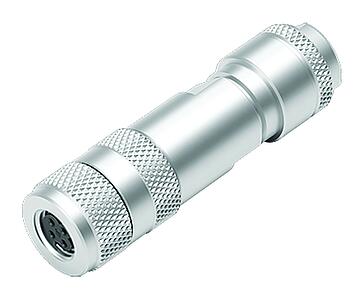

Automation Technology - Sensors and Actuators-M8-D-Female cable connector_818_2_KD-D_met
99 3368 100 04
M8-D Female cable connector, Contacts: 4, 4.0-5.5 mm, shieldable, screw clamp, IP67, M8x1.0
M8, series 818, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-D-Female cable connector_818_2_KD_D_met_klein
99 3368 600 04
M8-D Female cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, M8x1.0
M8, series 818, Automation Technology - Sensors and Actuators
Details

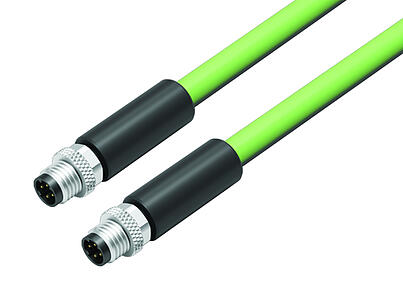

Automation Technology - Sensors and Actuators-M8-D-Connecting cable 2 male cable connectors_818_VL_KS-D_KS-D
77 5429 5429 50704-0100
M8-D Connecting cable 2 male cable connectors, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 1 m
M8, series 818, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-D-Connecting cable 2 male cable connectors_818_VL_KS-D_KS-D
77 5429 5429 50704-0200
M8-D Connecting cable 2 male cable connectors, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M8, series 818, Automation Technology - Sensors and Actuators
Details

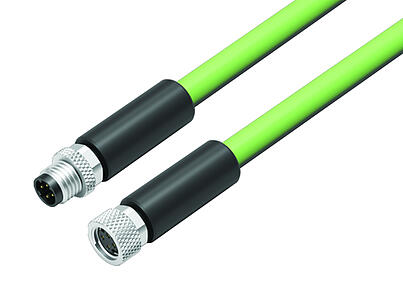

Automation Technology - Sensors and Actuators-M8-D-Connecting cable male cable connector - female cable connector_818_VL_KS-D_KD-D
77 5430 5429 50704-0100
M8-D Connecting cable male cable connector - female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 1 m
M8, series 818, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-D-Connecting cable male cable connector - female cable connector_818_VL_KS-D_KD-D
77 5430 5429 50704-0200
M8-D Connecting cable male cable connector - female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M8, series 818, Automation Technology - Sensors and Actuators
Details
