M8-D connector - Automation

M8-D connectors are essential components for data transmission and known for their efficiency and reliability in demanding industrial environments with limited installation spaces. The M8 D-coded connector offers a robust solution for high-speed data communication, with options for both M8-D male connectors and M8-D female connectors to accommodate various connection needs. The M8 connector D-coding ensures secure and precise data transmission, making it particularly well-suited for Ethernet applications.


Male and female M8-D connector


M8-D connector 4 Pin are designed to meet the high demands of industrial data connectivity in applications with small or limited space with data rates of up to 100 Mbit/s.


M8-D ethernet connector


M8 connectors with D-coding are shielded and achieve protection class IP67, have 4 contacts and are available as straight cable connectors and as straight and angled flange connectors. The cable connectors are available for self-connection with a screw terminal connection or with overmoulded heads, the flange connectors via a dip solder connection.


Find your suitable M8-D connector from binder.

D-coded M8 circular connectors | Ethernet connectivity for sensors in confined spaces
Watch now on YouTube
Automatisierungstechnik - Datenübertragung--Kabelstecker_818_1_KS_D_met
99 3369 100 04

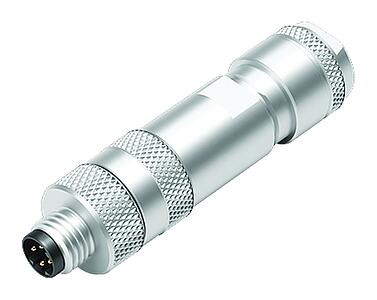

M8 Male cable connector, Contacts: 4, 4.0-5.5 mm, shieldable, screw clamp, IP67
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabelstecker_818_1_KS_D_met_klein
99 3369 600 04
M8 Male cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabeldose_818_2_KD_D_met_klein
99 3368 600 04

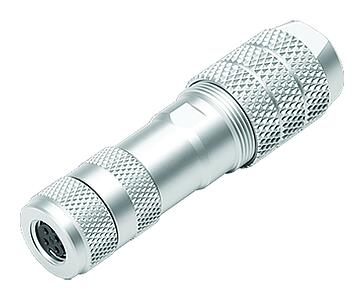

M8 Female cable connector, Contacts: 4, 5.0-8.0 mm, shieldable, screw clamp, IP67, M8x1.0
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabeldose_818_2_KD-D_met
99 3368 100 04

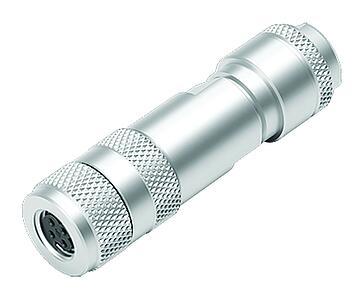

M8 Female cable connector, Contacts: 4, 4.0-5.5 mm, shieldable, screw clamp, IP67, M8x1.0
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabelstecker_818_1_KS-D_u_Ku
77 5429 0000 50704-0200

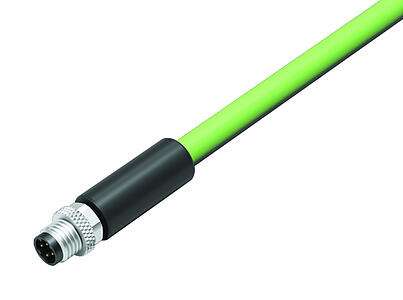

M8 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabelstecker_818_1_KS-D_u_Ku
77 5429 0000 50704-0500
M8 Male cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabeldose_818_2_KD-D_u_Ku
77 5430 0000 50704-0200

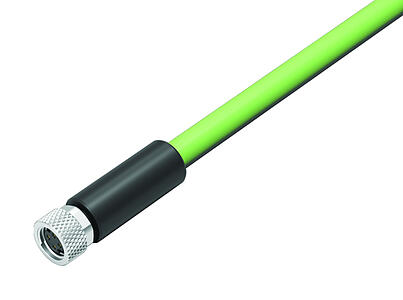

M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 2 m
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Kabeldose_818_2_KD-D_u_Ku
77 5430 0000 50704-0500
M8 Female cable connector, Contacts: 4, shielded, moulded on the cable, IP67, Profinet/Ethernet CAT5e, PUR, green, 4 x AWG 22, 5 m
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Flanschstecker_818_3_FS-D_ger
86 6321 1120 00404
M8 Male panel mount connector, Contacts: 4, shieldable, THT, IP67
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Flanschstecker, gewinkelt_818_3_FS-D_wi
86 6321 1121 00404
M8 Male angled panel mount connector, Contacts: 4, shieldable, THT, IP67
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Flanschdose, gewinkelt_818_4_FD-D_wi
86 6620 1121 00404
M8 Female angled panel mount connector, Contacts: 4, shieldable, THT, IP67
M8-D, series 818, Automation Technology - Data Transmission
Details
Automatisierungstechnik - Datenübertragung--Flanschdose_818_4_FD-D_ger
86 6620 1120 00404
M8 Female panel mount connector, Contacts: 4, shieldable, THT, IP67
M8-D, series 818, Automation Technology - Data Transmission
Details
