Automation technology - Sensors and actuators
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • M8The connectors can be screwed together to secure the connection. M stands for metric thread and the number stands for the external diameter.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP65Fully protects against touch and against the intrusion of dust. Protects against sprayed water (jet) from any angle.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
  • IP69KFully protects against touch and against the intrusion of dust. Protects against water intrusion under high pressure (8,000–10,000 kPa) from a jet or from steam-jet cleaning from any direction.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Automation TechnologyAdvancing digitisation and current manufacturing technologies make possible ever smaller and more high-performance elements in the areas of sensor technology and networking. Here, sensor technology means the detection of physical values and their conversion into electric values. These electric values are converted into a digital signal that can be transmitted by means of bus communication to other bus devices. This will make automated production more modular and flexible in the future, with a preference for standardised connectors like the models M8 and M12. The worldwide availability of the connectors and their adaptation to a broad range of applications have already led to numerous versions, e.g. codings.
Coding
To avoid mismating, the connector elements – the pin and socket – must be brought into form-fitting alignment with one another (coding) before being locked.
  • M8-BB-Coding (5 contacts).
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • screw clampThe wires in a cable are pressed in the contact element radially by means of a screw, establishing the electrical contact.
  • single wiresConnectors with contacts attached to individual wires ex factory. These can then be connected individually.
  • solderThe contact and the individual wires of a cable are connected using solder.
  1. Products
  2. Automation technology - Sensors and actuators
  3. M8

M8 sensor connector for automation technology

Series PDF (5 MB)
Accessory as PDF (250 KB)

Easy-to-mount M8 cable connectors to DIN EN 61076-2-104 in protection class IP65/67, unshielded and shielded versions with 360° shielding, iris spring and shielding rings ensure reliable EMC shielding. Rated current 1A to 4A and rated voltage 30V to 60V depending on the number of contacts. There are solder and screw terminals. The flange connectors have solder and dip solder connections or stranded wires.

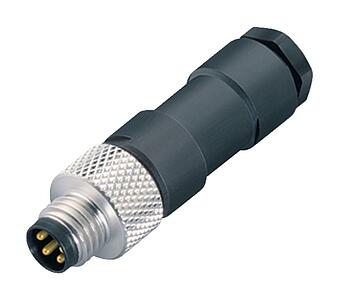

Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KS_VK
99 3379 00 03
M8 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, solder, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KS_VK
99 3383 00 04
M8 Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, solder, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details

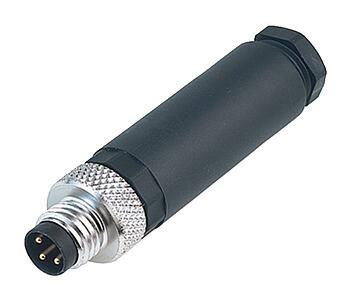

Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KGS
99 3379 100 03
M8 Male cable connector, Contacts: 3, 3.5-5.0 mm, unshielded, screw clamp, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KGS
99 3383 100 04
M8 Male cable connector, Contacts: 4, 3.5-5.0 mm, unshielded, screw clamp, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details

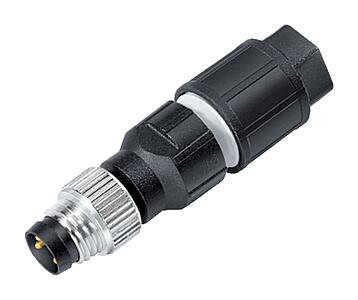

Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KS_Schneid
99 3379 500 03
M8 Male cable connector, Contacts: 3, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KS_Schneid
99 3379 550 03
M8 Male cable connector, Contacts: 3, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KS_Schneid
99 3383 500 04
M8 Male cable connector, Contacts: 4, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_KS_Schneid
99 3383 550 04
M8 Male cable connector, Contacts: 4, 2.5-5.0 mm, unshielded, cutting clamp, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details

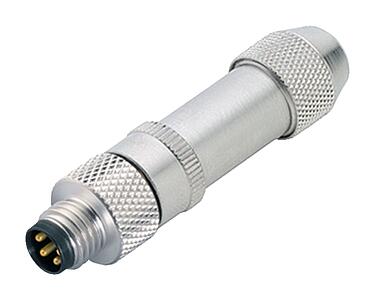

Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_M_Kunst
99 3361 00 03
M8 Male cable connector, Contacts: 3, 3.5-5.0 mm, shieldable, solder, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_M_Kunst
99 3363 00 04
M8 Male cable connector, Contacts: 4, 3.5-5.0 mm, shieldable, solder, IP67, UL
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_M_Kunst
99 3361 25 03
M8 Male cable connector, Contacts: 3, 2.0-3.5 mm, shieldable, solder, IP67
M8, series 768, Automation Technology - Sensors and Actuators
Details
Automation Technology - Sensors and Actuators-M8-Male cable connector_768_1_M_Kunst
99 3363 25 04
M8 Male cable connector, Contacts: 4, 2.0-3.5 mm, shieldable, solder, IP67
M8, series 768, Automation Technology - Sensors and Actuators
Details
