Automation technology - Solenoid valve connectors
Filter products
Connector type
The connector type can be used to distinguish our products for installation in a device housing from cable parts. The connector type describes the difference between connectors that are mounted on enclosures and connectors that are mounted on cables.
Gender
A connector consists of the male part (pin) and the female part (socket). Depending on the design, the male or female part is either permanently installed or are located at the end of a cable.
Number of contacts
This indicates the number of contacts the connector has.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Rated voltage
The rated voltage is the electrical voltage assigned to the connector.
Rated current
The rated current is the electrical current that is assigned to the connector.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Material of housing
Depending on the area of application or requirements, connectors are made of different materials. We offer metal and plastic housings for our items as the housing material.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
Approval
Our articles have various approvals which can be preselected here. can be preselected here.
Cable type
By selecting the cable type, a preselection for the respective application can be carried out.
Cable Jacket Type
The material of the cable jacket. PUR, TPE, TMPU or TPE-U cables each have different technical properties.
Cable color
The color of the cable jacket.
Cable length
Our items with molded or pre-assembled cables have different cable lengths. It describes the length of the cable from the end of the connector. If the desired cable length is not included, please contact our sales department.
Locking material
Depending on the technical requirements or performance data of the connector, the locking mechanism is made of plastic or metal.
Show products
  1. Products
  2. Automation technology - Solenoid valve connectors
  3. Model A

Valve connector type A - Automation technology

Series PDF (1 MB)
Accessory as PDF (158 KB)

Series 210 solenoid valve connectors are available with high or standard housing. They comply with design A according to DIN EN 175301-803 (formerly DIN 43650) and have 2+PE and 3+PE contacts. They have protection class IP 40 to 67 and are available as self-connectable and moulded versions. For visual status indication, many models are also available as LED variants. Your devices can be protected against electrical voltage peaks by an optional protective circuit inside the solenoid valve connector.

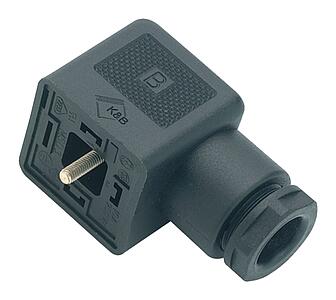

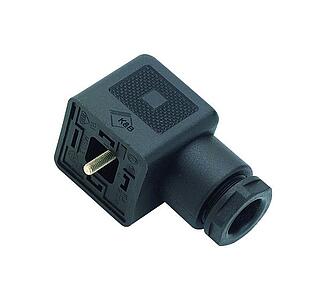

Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_210_A
43 1700 000 03
Female power connector, Contacts: 2+PE, 6.0-8.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_210_A
43 1702 000 04
Female power connector, Contacts: 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_210_A
43 1700 004 03
Female power connector, Contacts: 2+PE, 3.0-10.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_210_A
43 1702 004 04
Female power connector, Contacts: 3+PE, 3.0-10.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details

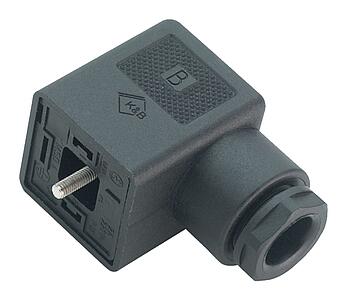

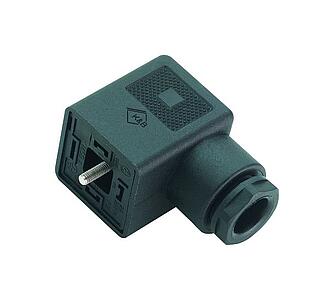

Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_213_AH
43 1770 006 03
Female power connector, Contacts: 2+PE, 6.0-8.0 mm, unshielded, screw clamp, IP40 without seal, VDE, ESTI+
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_213_AH
43 1772 006 04
Female power connector, Contacts: 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP40 without seal, VDE, ESTI+
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details

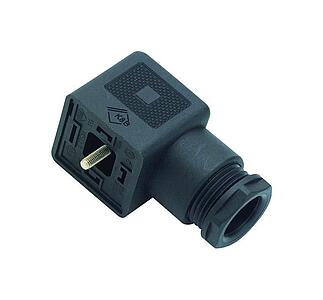

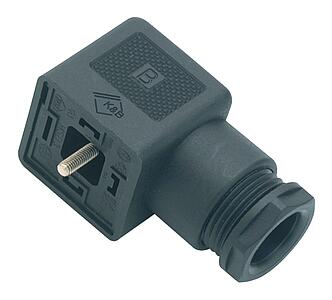

Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_211_A
43 1700 002 03
Female power connector, Contacts: 2+PE, 8.0-10.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_211_A
43 1702 002 04
Female power connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP40 without seal, UL, ESTI+, VDE
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_213_AH
43 1704 000 03
Female power connector, Contacts: 2+PE, 6.0-8.0 mm, unshielded, screw clamp, IP40 without seal, VDE, ESTI+
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_213_AH
43 1706 000 04
Female power connector, Contacts: 3+PE, 6.0-8.0 mm, unshielded, screw clamp, IP40 without seal, VDE, ESTI+
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details

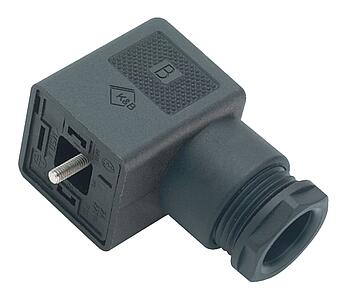

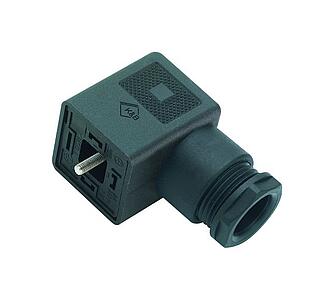

Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_211_A_PG11
43 1704 002 03
Female power connector, Contacts: 2+PE, 8.0-10.0 mm, unshielded, screw clamp, IP40 without seal, VDE, ESTI+
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
Automation Technology - Solenoid Valve Connectors-Size A-Female power connector_211_A_PG11
43 1706 002 04
Female power connector, Contacts: 3+PE, 8.0-10.0 mm, unshielded, screw clamp, IP40 without seal, VDE, ESTI+
Size A, series 210, Automation Technology - Solenoid Valve Connectors
Details
