Part no.: 09 5250 00 03

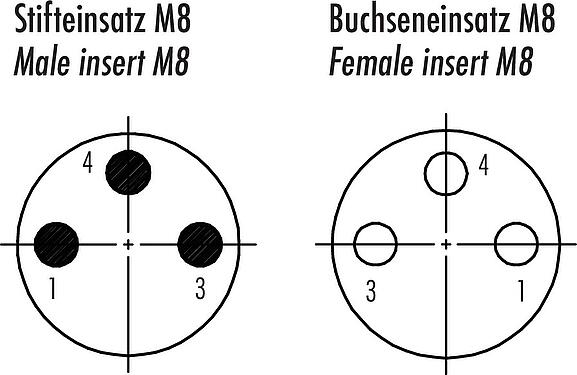

M8 Lead-through for control cabinet, Contacts: 3, shielded, pluggable, IP67, M8x1.0, Rear mounting
series 765, Automation Technology - Sensors and Actuators
3D View(Click to activate)
General features
Moreless| Part no. | 09 5250 00 03 |
| Connector design | Lead-through for control cabinet |
| Type standard | DIN EN 61076-2-104 |
| Coding | A-coded |
| Version | Lead-through for control cabinets |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP67 |
| Temperature range from/to | -25 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 35.00 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 60 V |
| Rated impulse voltage | 1500 V |
| Rated current | 4.0 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
| Shield connection | Shield on the housing |
Material
Moreless| Contact body material | PA |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 9fd869c0-bf5a-4713-afa3-1912b10c94fd |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | 2011/65/EU (EN 50581:2012) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
