Part no.: 09 5241 10 05
M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, UL 2238, M12x1.0
Automation Technology - Sensors and Actuators
3D View(Click to activate)

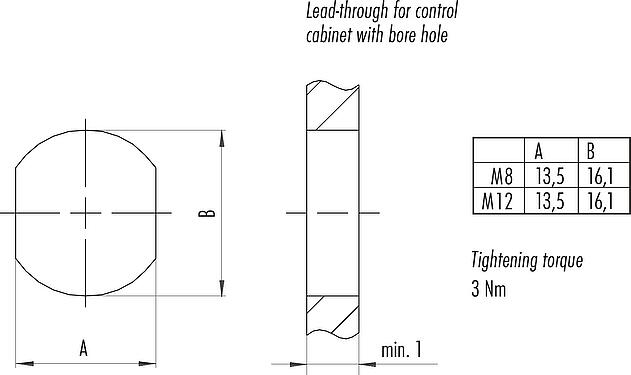

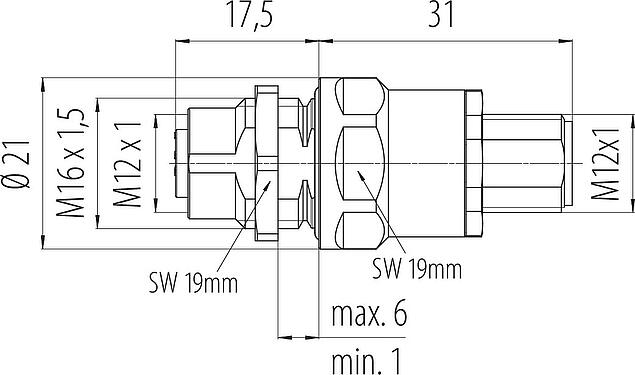

General features
Moreless| Part no. | 09 5241 10 05 |
| Connector design | Lead-through for control cabinet |
| Type standard |
DIN EN 61076-2-101 DIN EN 61076-2-106 |
| Version | Lead-through for control cabinets |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP67 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 41.00 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 60 V |
| Rated impulse voltage | 1500 V |
| Rated current | 4.0 A |
| Insulation resistance | > 108 Ω |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
| Voltage | 1000 V DC |
Material
Moreless| Housing material | CuZn (Brass nickel plated) |
| Contact body material | PA black |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Locking material | CuZn (brass) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | b95669b4-4439-4c46-8a6a-0c8ef78522fd |
Authorization/approvals
Moreless| Approvals | UL 2238 |
Classifications
Moreless| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018 | 2011/65/EU;EN 50581:2012 | 2014/35/EU;EN 60529:1991) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
