Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • M16The connectors can be screwed together to secure the connection. M stands for metric thread and the number stands for the external diameter.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Automation TechnologyAdvancing digitisation and current manufacturing technologies make possible ever smaller and more high-performance elements in the areas of sensor technology and networking. Here, sensor technology means the detection of physical values and their conversion into electric values. These electric values are converted into a digital signal that can be transmitted by means of bus communication to other bus devices. This will make automated production more modular and flexible in the future, with a preference for standardised connectors like the models M8 and M12. The worldwide availability of the connectors and their adaptation to a broad range of applications have already led to numerous versions, e.g. codings.
Coding
To avoid mismating, the connector elements – the pin and socket – must be brought into form-fitting alignment with one another (coding) before being locked.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • solderThe contact and the individual wires of a cable are connected using solder.
  1. Products
  2. Automation technology - Data transmission
  3. M16-X

Miniature connector X-coded

Series PDF (576 KB)
Accessory as PDF (148 KB)

The 415 series of X-coded M16 connectors from binder can handle data transfer rates up to an impressive 10 Gbits/s. The 8-contact series includes a cable connector and a cable socket as well as a flange socket for front connection

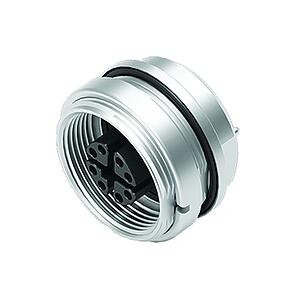

Automation Technology - Data Transmission-M16-X-Female panel mount connector_415-X_4_FD
99 4174 90 08
M16-X Female panel mount connector, Contacts: 8, shieldable, THR, IP67
M16, series 415, Automation Technology - Data Transmission
Details

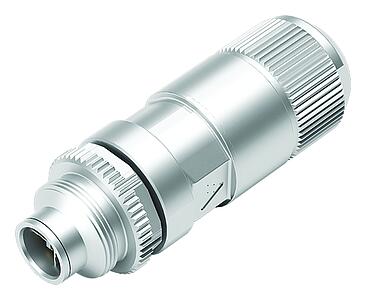

Automation Technology - Data Transmission-M16-X-Male cable connector_415-X_1_KS
99 4171 00 08
M16-X Male cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, cutting clamp, IP67
M16, series 415, Automation Technology - Data Transmission
Details

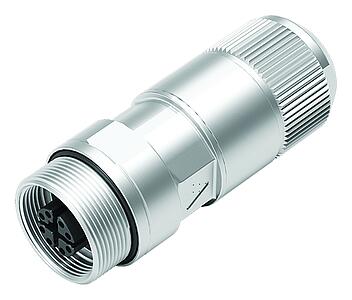

Automation Technology - Data Transmission-M16-X-Female cable connector_415-X_2_KD
99 4172 00 08
M16-X Female cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, cutting clamp, IP67
M16, series 415, Automation Technology - Data Transmission
Details
