M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67

Illustration 09 5283 00 03 - M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67 — Illustration

3D View 09 5283 00 03 - M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67 — 3D View

Pin assignment plans 09 5283 00 03 - M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67 — Pin assignment plans

Scale drawing 09 5283 00 03 - M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67 — Scale drawing

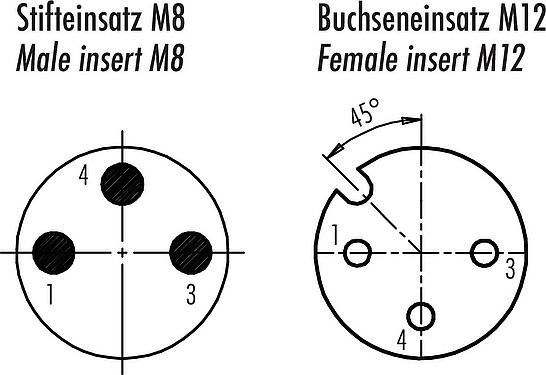

Contact arrangement (Plug-in side) 09 5283 00 03 - M12/M8 Adapter, Contacts: 3, unshielded, pluggable, IP67 — Contact arrangement (Plug-in side)

Part no.	09 5283 00 03
Connector design	Adapter
Type standard	DIN EN 61076-2-104 DIN EN 61076-2-101
Coding	A-coded
Version	Adapter
Connector locking system	screw
Termination	pluggable
Degree of protection	IP67
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	12.00
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	30 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Pollution degree	3
Overvoltage category	II
Insulating material group	II
EMC compliance	unshielded

Housing material	Macromelt
Contact body material	PA/PUR
Contact material	CuZn (brass) / CuSn (bronze)
Contact plating	Au (gold)
Locking material	Zinc die-cast nickel-plated
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	f792ae27-35c1-4d90-bc3c-774c1ce178bc

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Low Voltage Directive	2011/65/EU (EN 50581:2012)
RoHS Directive	2011/65/EU (EN 50581:2012)
