Automation technology - Data transmission
Filter products
Number of contacts
This indicates the number of contacts the connector has.
Locking Type
The locking system describes how the pin and socket elements are joined.
  • M12The connectors can be screwed together to secure the connection. M stands for metric thread and the number stands for the external diameter.
Degree of protection
The degrees of protection according to IEC60529 apply to various articles and provide information on protection against the intrusion of water and solids such as dust.
  • IP67Fully protects against touch and against the intrusion of dust. Protects against water intrusion in temporary immersion (depth: 1 m; duration: 30 minutes).
  • IP68Fully protects against touch and against the intrusion of dust. Protects against water intrusion in sustained submersion (depth: 2 m; duration: 24 hours), requirements specification by agreement between producer and user.
Version
The choice of version allows the definition of certain technical specifications – for example the type of cable outlet or the size.
Connector Type
Connectors are differentiated by installation type: those that are mounted in a device housing (panel mount) and those that are attached to cables.
  • Cable mountingConnectors with cable already moulded or for self-assembly.
  • Housing assemblyConnectors that can be mounted to device housings. These can be fixed by means of a locking nut or be screwed in (requires a threaded hole).
Shielded Option
Electromagnetic compatibility (EMC) means that a connector is shielded or shieldable. This is required when it is necessary to protect the signals or data conducted by the connector, as well as to protect external devices, from disturbance due to electromagnetic effects.
Product segment
binder areas of application or type of connector.
  • Automation TechnologyAdvancing digitisation and current manufacturing technologies make possible ever smaller and more high-performance elements in the areas of sensor technology and networking. Here, sensor technology means the detection of physical values and their conversion into electric values. These electric values are converted into a digital signal that can be transmitted by means of bus communication to other bus devices. This will make automated production more modular and flexible in the future, with a preference for standardised connectors like the models M8 and M12. The worldwide availability of the connectors and their adaptation to a broad range of applications have already led to numerous versions, e.g. codings.
Coding
To avoid mismating, the connector elements – the pin and socket – must be brought into form-fitting alignment with one another (coding) before being locked.
  • M12-XThis coding was specially developed as an 8-contact, shieldable connector for data cabling applications with high data quantities and data transmission rates – e.g. PROFINET. Standardised according to DIN EN 61076-2-109, the connectors feature a comparatively high degree of protection and are used for data transmission at rates of up to 10 Gbit/s. Global data transmission is becoming increasingly prevalent and thus increasingly important.
Termination
The termination type determines how cables, single wires or PCBs can be joined with the connector.
  • pluggableAdapters or distributors that are joined with a connector on each side. The version and locking system may vary for the different terminations.
  • solderThe contact and the individual wires of a cable are connected using solder.
  1. Products
  2. Automation technology - Data transmission
  3. M12-X

M12-X coded connectors - Automation technology

Series PDF (4 MB)
Accessory as PDF (564 KB)

M12 connectors with X-coding of the 825/876 series for high-performance applications such as PROFINET and Ethernet have screw/cut terminal connections. Cable connectors are also available with moulded cable, flange connectors have solder and dip solder connections. The connectors are excellently shielded and comply with protection class IP67. Shielded adapters M12-X to RJ45 are available straight and angled.

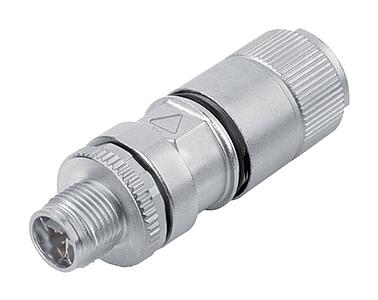

Automation Technology - Data Transmission-M12-X-Male cable connector_825-X_1_KS
99 3787 810 08
M12-X Male cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, cutting clamp, IP67
M12, series 825, Automation Technology - Data Transmission
Details

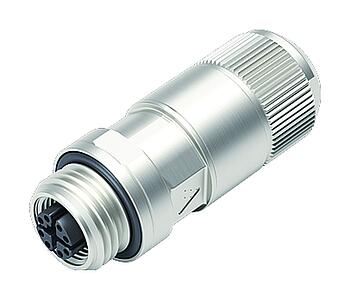

Automation Technology - Data Transmission-M12-X-Female cable connector_825-X_2_KD
99 3788 810 08
M12-X Female cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, cutting clamp, IP67
M12, series 825, Automation Technology - Data Transmission
Details

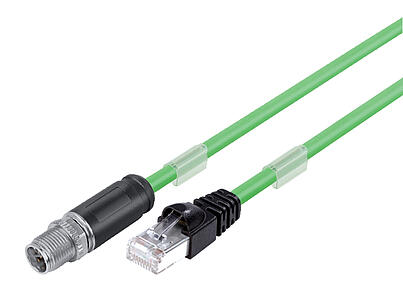

Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_RJ
79 9723 020 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 2 m
M12, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_RJ
79 9723 050 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 5 m
M12, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_RJ
79 9723 100 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 10 m
M12, series 876, Automation Technology - Data Transmission
Details

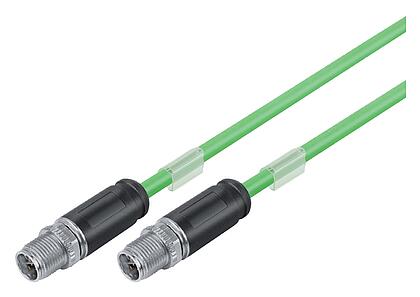

Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_KS
79 9722 020 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 2 m
M12, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_KS
79 9722 050 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 5 m
M12, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_KS
79 9722 100 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 10 m
M12, series 876, Automation Technology - Data Transmission
Details

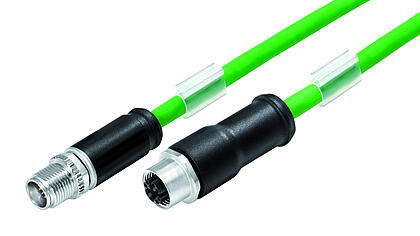

Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_KD
79 9724 020 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 2 m
M12, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_KD
79 9724 050 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 5 m
M12, series 876, Automation Technology - Data Transmission
Details
Automation Technology - Data Transmission-M12-X-Connecting cable_825-X_VL_KS_KD
79 9724 100 08
M12-X Connecting cable, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 10 m
M12, series 876, Automation Technology - Data Transmission
Details

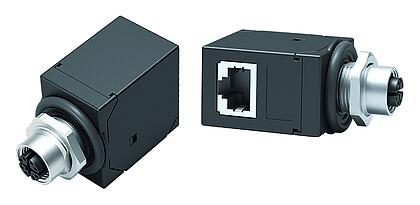

Automation Technology - Data Transmission-M12-X-Lead-through for control cabinet, female connector – RJ45 angled_825-X_3_FD_RJ45_wi_Kombi
09 5288 00 08
M12-X Lead-through for control cabinet, female connector – RJ45 angled, Contacts: 8, shielded, pluggable, IP67, UL
M12, series 825, Automation Technology - Data Transmission
Details
