Subminiature snap in connector IP40

Series PDF (547 KB)

These snap-in connector series can be supplied with up to 5 contacts rated 3A at 60V. Several versions are available including cable connectors with or without strain relief, connectors moulded to cables and panel mount connectors with solder and dip-solder termination. Cable outlet size is 3-5mm and users can expect more than 100 mating cycles.

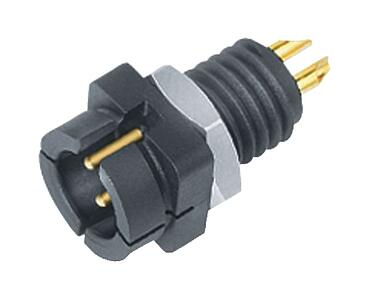

Subminiature Connectors-Snap-In IP40-Male panel mount connector_719_3_30.1
09 9749 30 03
Snap-In Male panel mount connector, Contacts: 3, unshielded, solder, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Male panel mount connector_719_3_30.1
09 9765 30 04
Snap-In Male panel mount connector, Contacts: 4, unshielded, solder, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Male panel mount connector_719_3_30.1
09 9791 30 05
Snap-In Male panel mount connector, Contacts: 5, unshielded, solder, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details

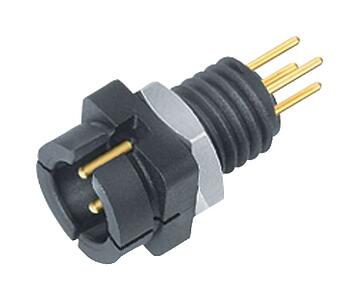

Subminiature Connectors-Snap-In IP40-Male panel mount connector_719_3_20.1
09 9749 20 03
Snap-In Male panel mount connector, Contacts: 3, unshielded, THT, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Male panel mount connector_719_3_20.1
09 9765 20 04
Snap-In Male panel mount connector, Contacts: 4, unshielded, THT, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Male panel mount connector_719_3_20.1
09 9791 20 05
Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40
Snap-In IP40, series 719 · 709, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Female panel mount connector_719_4_30
09 9750 30 03
Snap-In Female panel mount connector, Contacts: 3, unshielded, solder, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Female panel mount connector_719_4_30
09 9766 30 04
Snap-In Female panel mount connector, Contacts: 4, unshielded, solder, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Female panel mount connector_719_4_30
09 9792 30 05
Snap-In Female panel mount connector, Contacts: 5, unshielded, solder, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Female panel mount connector_719_4_20
09 9750 20 03
Snap-In Female panel mount connector, Contacts: 3, unshielded, THT, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Female panel mount connector_719_4_20
09 9766 20 04
Snap-In Female panel mount connector, Contacts: 4, unshielded, THT, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
Subminiature Connectors-Snap-In IP40-Female panel mount connector_719_4_20
09 9792 20 05
Snap-In Female panel mount connector, Contacts: 5, unshielded, THT, IP40
Snap-In IP40, series 719, Subminiature Connectors
Details
