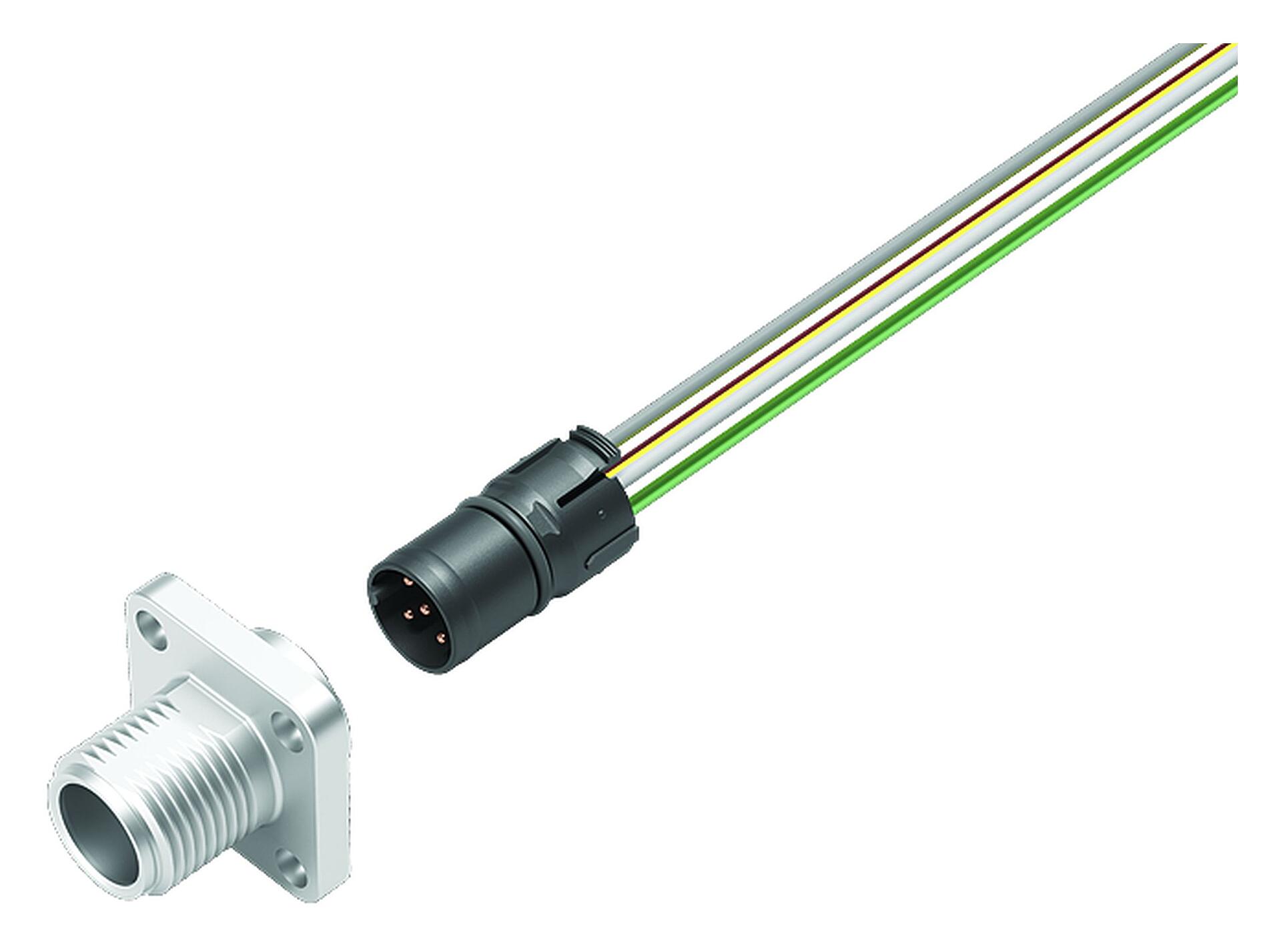

Part no.: 99 3483 100 08
M12 Square male panel mount connector, Contacts: 8, unshielded, single wires, IP69k, IP68, IP67, UL, Square housing 20 mm, positionable, lockable 45°
M12-A, series 763, Automation Technology - Sensors and Actuators
3D View(Click to activate)
General features
Moreless| Part no. | 99 3483 100 08 |
| Connector design | Square male panel mount connector |
| Type standard | DIN EN 61076-2-101 |
| Wire length | 0.2 m (Standard 0.2 m. Other lengths are available on request). |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | single wires |
| Degree of protection | IP69k, IP68, IP67 |
| Cross-sectional area | 0.25 mm² / AWG 24 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Additional information |
Square housing 20 mm positionable, lockable 45° |
| Weight (g) | 15.58 |
| Customs tariff number | 85369010 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 30 V |
| Rated impulse voltage | 800 V |
| Rated current | 2.0 A |
| Insulation resistance | > 10⁸ Ω |
| Pollution degree | 3 |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Housing material | Brass nickel-plated / Zinc die-cast nickel-plated |
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 819c15bf-444b-41b9-aff9-d019b4295bd4 |
Authorization/approvals
Moreless| Approvals | UL |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.

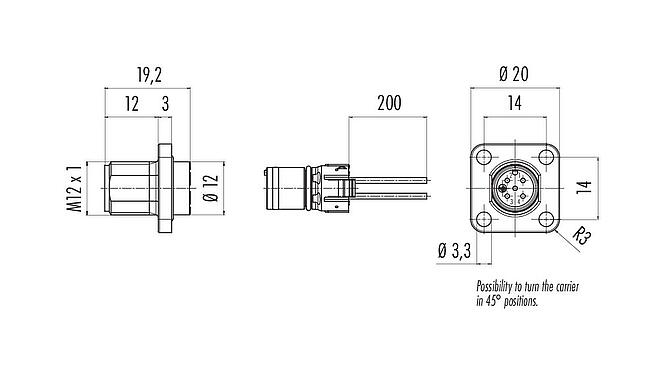

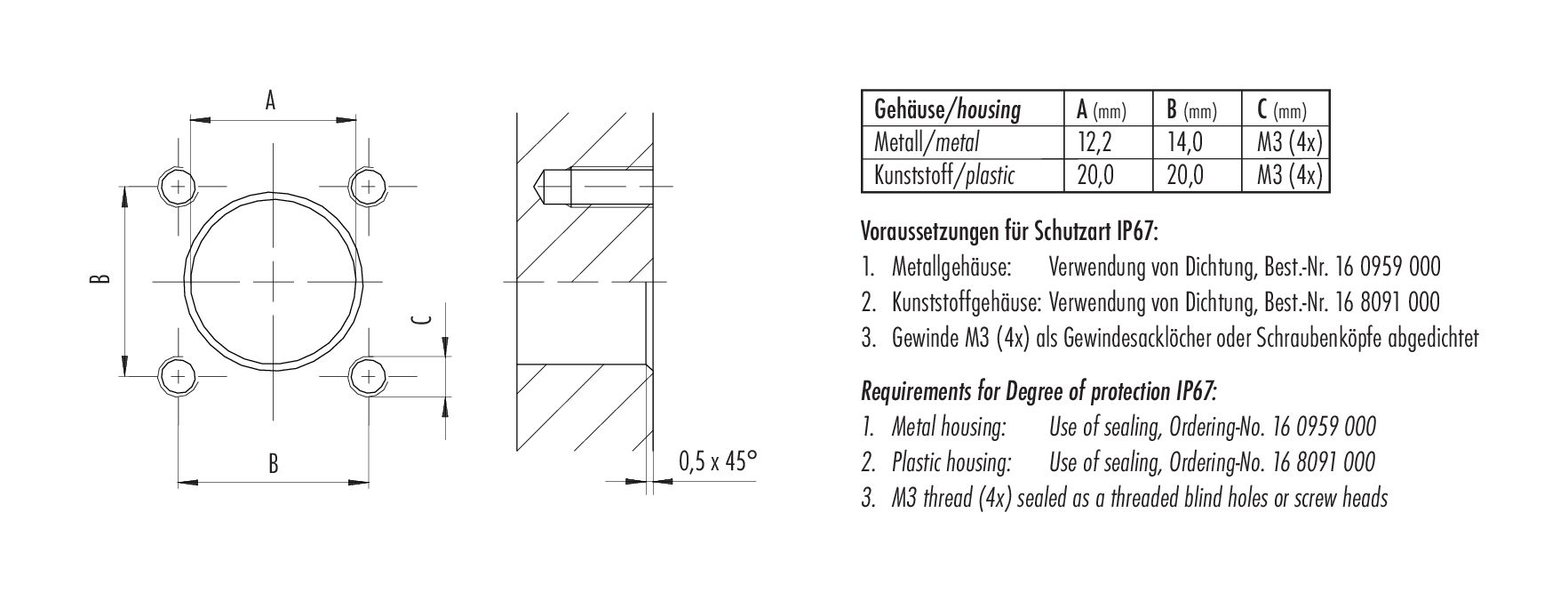

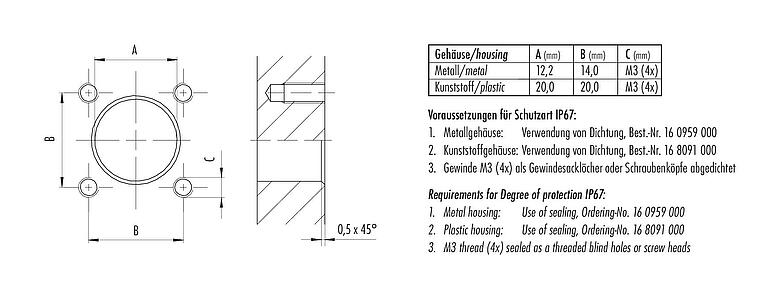

- The protection class specification applies on condition that the four mounting holes are made as blind holes.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
