Part no.: 79 9723 100 08

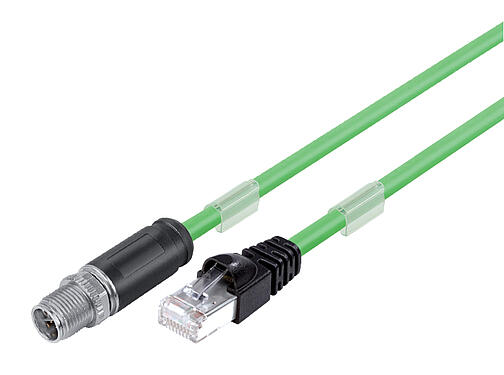

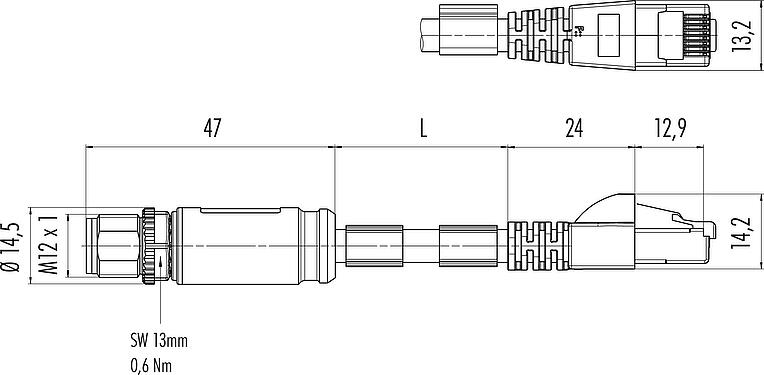

M12/M12 Connecting cable male cable connector - RJ45 connector, Contacts: 8, shielded, moulded on the cable, IP67, UL, PUR, green, AWG 26/7, 10 m
M12-X, series 876, Automation Technology - Data Transmission
3D View(Click to activate)
General features
Moreless| Part no. | 79 9723 100 08 |
| Connector design | Connecting cable male cable connector - RJ45 connector |
| Type standard | DIN EN 61076-2-109 |
| Cable length | 10 m (Other lengths are available on request.) |
| Version | Connecting cable |
| Connector locking system | screw |
| Termination | moulded on the cable |
| Degree of protection |
IP67 IP20 |
| Cross-sectional area | AWG 26/7 |
| Temperature range from/to | -40 °C / 85 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 431.14 |
| Customs tariff number | 85444290 |
| Country of Origin | CN |
Electrical parameters
Moreless| Rated voltage | 50 V (AC) / 60 V (DC) |
| Rated current | 0.5 A |
| Insulation resistance | > 10⁸ Ω |
| Pollution degree | 3 |
| Transmission rate | CAT 6A |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | shielded |
| Shield connection | Shield on the threaded ring |
Material
Moreless| Housing material | PUR |
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | ac4ca8da-ced9-435a-a39f-07a33ed8a541 |
Authorization/approvals
Moreless| Approvals | UL |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Declarations of conformity
Moreless| RoHS Directive | 2011/65/EU (EN 50581:2012) |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 6.2 mm |
| Cross section | AWG 26/7 |
| Sheath material | PUR |
| Single-lead insulation | PE |
| Single-lead structure | 8 x 0.14 mm |
| Cable color | green |
| Mechanical properties | |
| Bending radius, fixed cable | ≥ 8 x Ø |
| Thermal properties | |
| Temperature range cable in move from/to | -10 °C / 60 °C |
| Temperature range cable fixed from/to | -40 °C / 85 °C |
| Other features | |
| Halogen free | yes |
Security notices
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
