  2. Automation technology - Data transmission
  3. M12-X

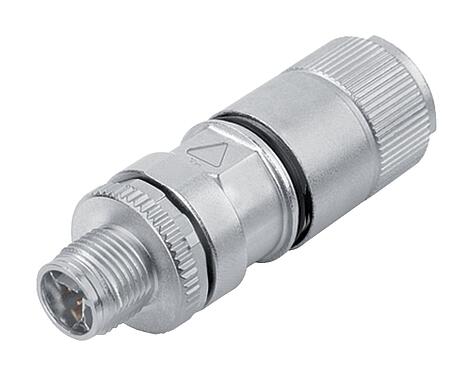

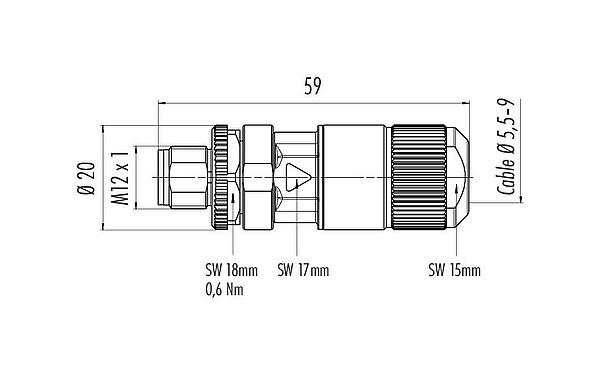

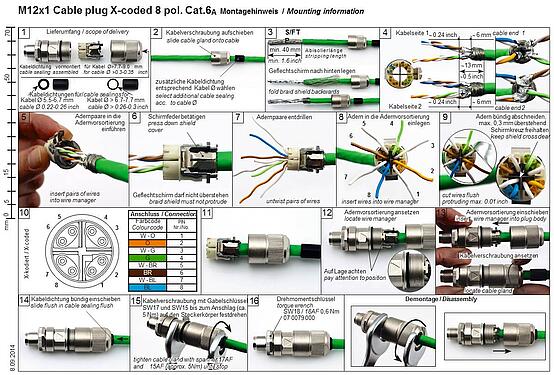

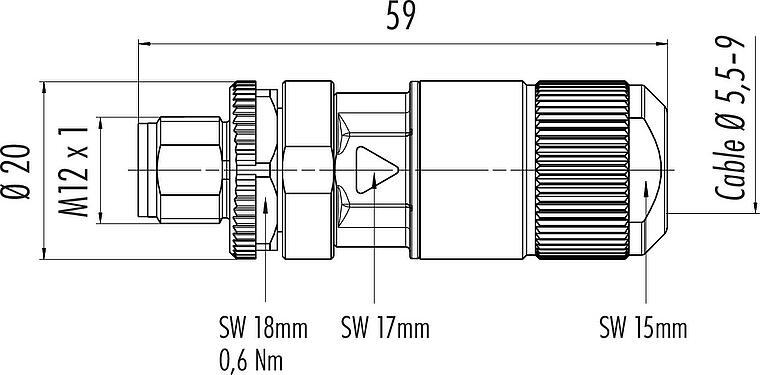

  4. M12 Male cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67
Part no.: 99 3787 810 08

M12 Male cable connector, Contacts: 8, 5.5-9.0 mm, shieldable, IDC, IP67

M12-X, series 825, Automation Technology - Data Transmission
Compare product
Downloads
General features
Moreless
Part no. 99 3787 810 08
Connector design Male cable connector
Type standard DIN EN 61076-2-109
Version Connector pin straight
Connector locking system screw
Termination IDC
Degree of protection IP67
Cross-sectional area AWG 27-22
Cable outlet 5.5-9.0 mm
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 100 Mating cycles
Weight (g) 76.10
Customs tariff number 85366990
Country of Origin TW
Rated voltage 50 V (AC) / 60 V (DC)
Rated impulse voltage 800 V
Rated current 0.5 A
Pollution degree 3
Transmission rate CAT 6A
Overvoltage category II
Insulating material group II
EMC compliance shieldable
Shield connection Shield clamping
Housing material Zinc die-cast nickel-plated
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material Zinc die-cast nickel-plated
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 86a6107d-5128-4071-bef2-5afd659c3b4f
eCl@ss 11.1 27-44-01-02
ETIM 9.0 EC002635
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
