What is an M12 Connector
An M12 connector is a circular connector defined by its 12 mm locking thread, which ensures a secure and vibration-resistant connection. The name comes from its M12 metric thread size, a standardized format widely used in industrial automation, sensors, robotics, and fieldbus communication. The M stands for ‘metric thread’, the 12 stands for ‘12 mm nominal/outer diameter’. These connectors provide robust, compact, and versatile solutions for power, signal, and data transmission. Their benefits include reliable M12 electrical connector performance in harsh conditions, quick installation, and compatibility across multiple industries, making them a core component in modern M12 connections.

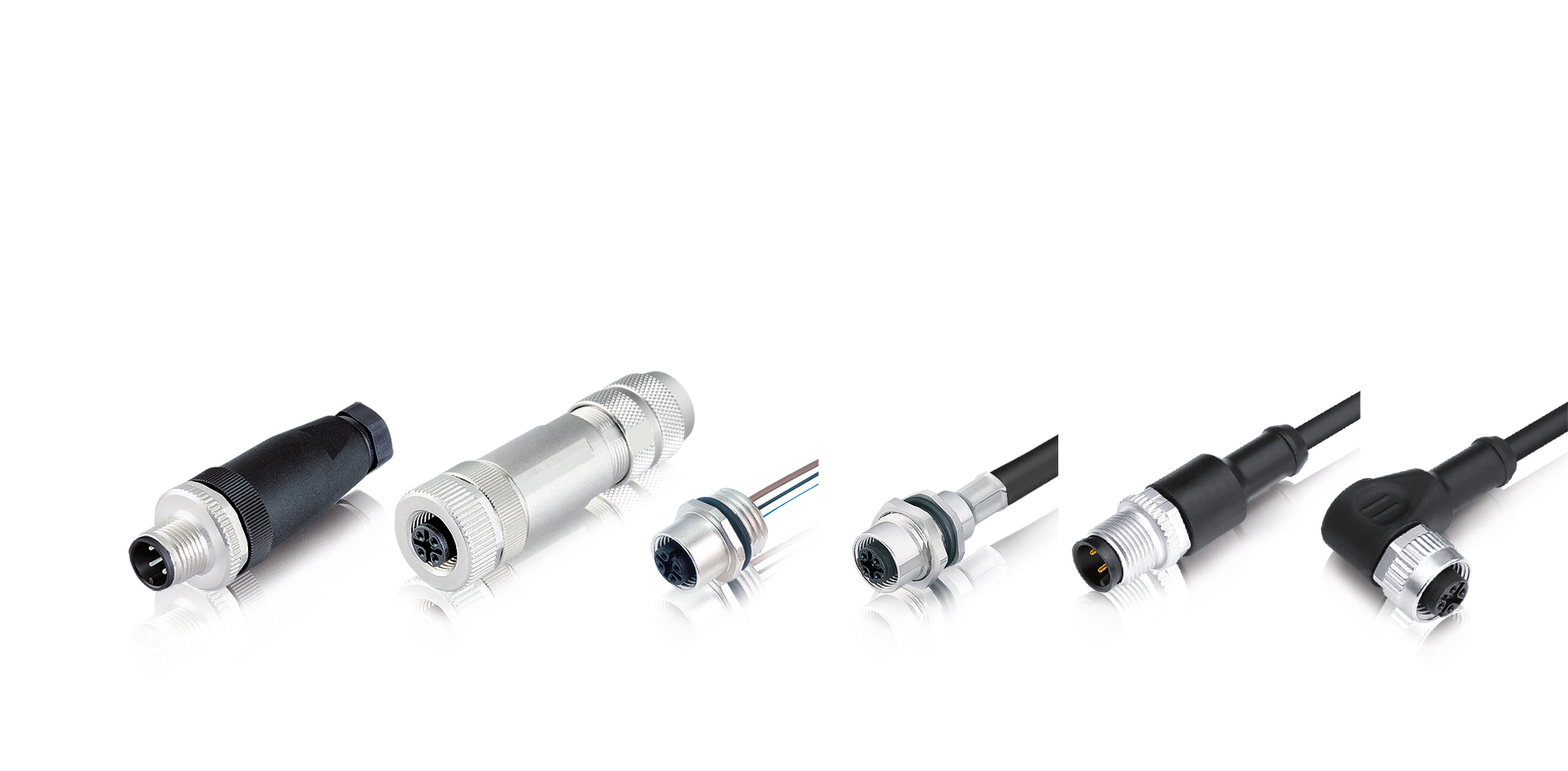

M12 A-Coded Connectors
M12-A coded connectors (also written as M12 A coded) are the most common type, typically used for transmitting signals and power in sensors, actuators, and standard automation equipment. Available in variants like M12-A coded 5-pin and M12-A coded 8-pin, they are versatile and compatible with cable solutions. Engineers value them because they combine reliability, compact design, and widespread compatibility across automation systems.

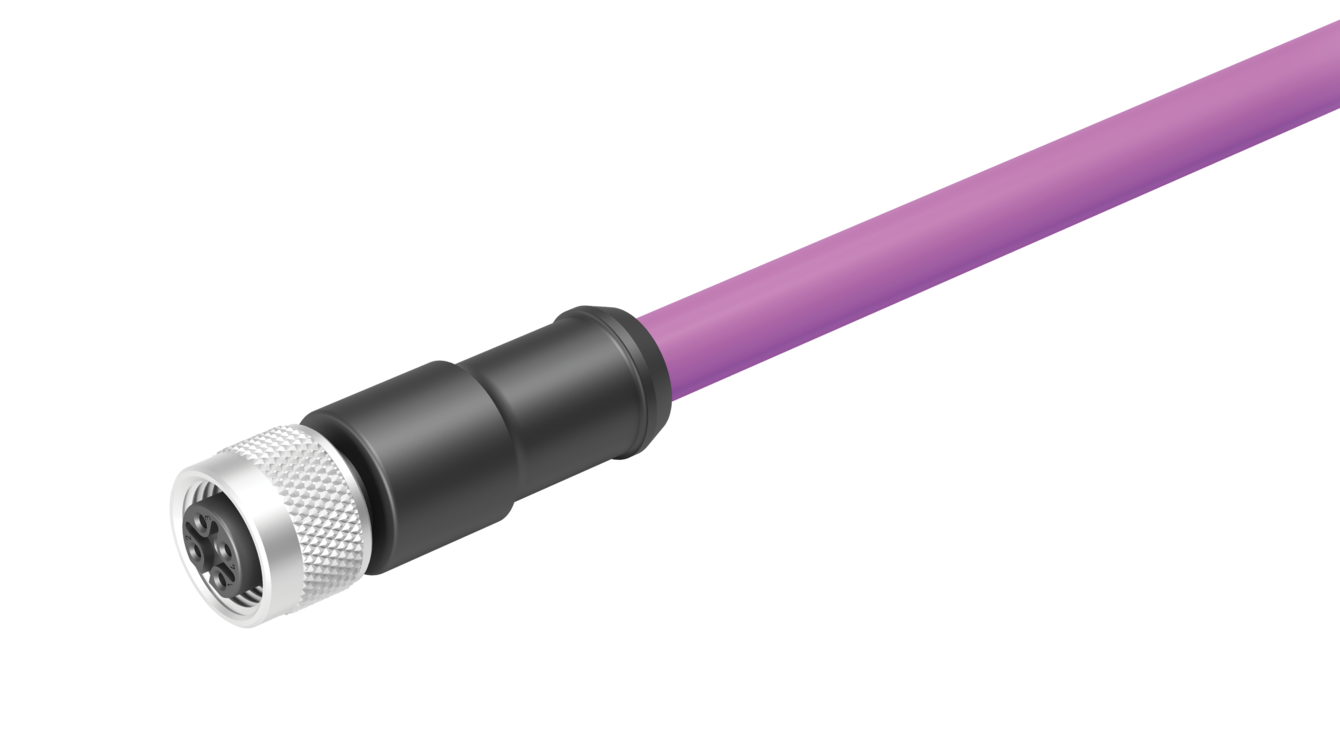

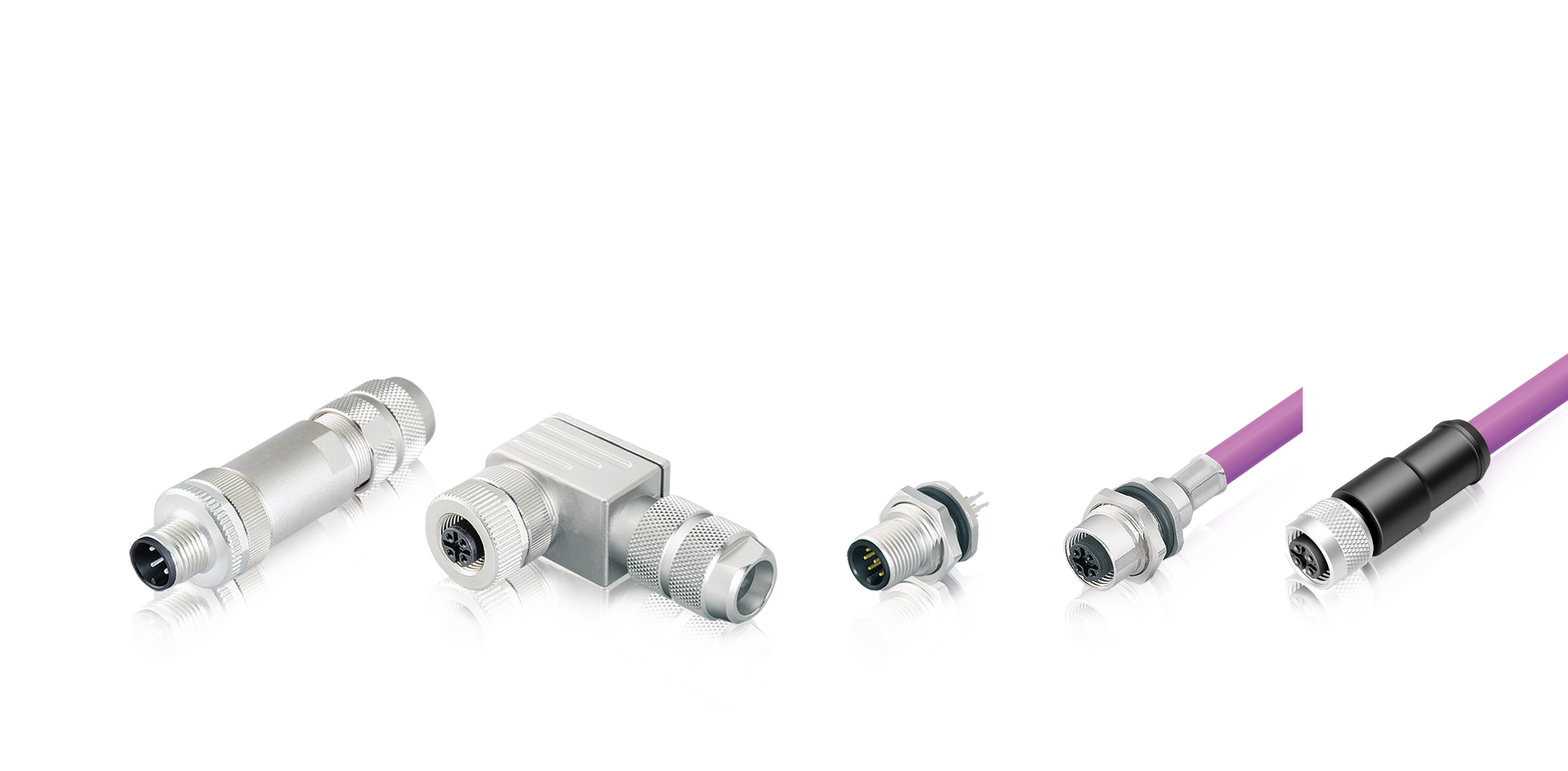

M12 B-Coded Connectors
M12 B-coded connectors are mainly designed for Profibus and DeviceNet applications. An M12 B-coded connector ensures correct polarity and reduces the risk of mismatched wiring. Engineers often choose them for stable M12 5-pin B-coded data transmission. This coding is specifically engineered to prevent mis-mating with other M12 connector types, making it a safe choice for consistent data communication in fieldbus networks.

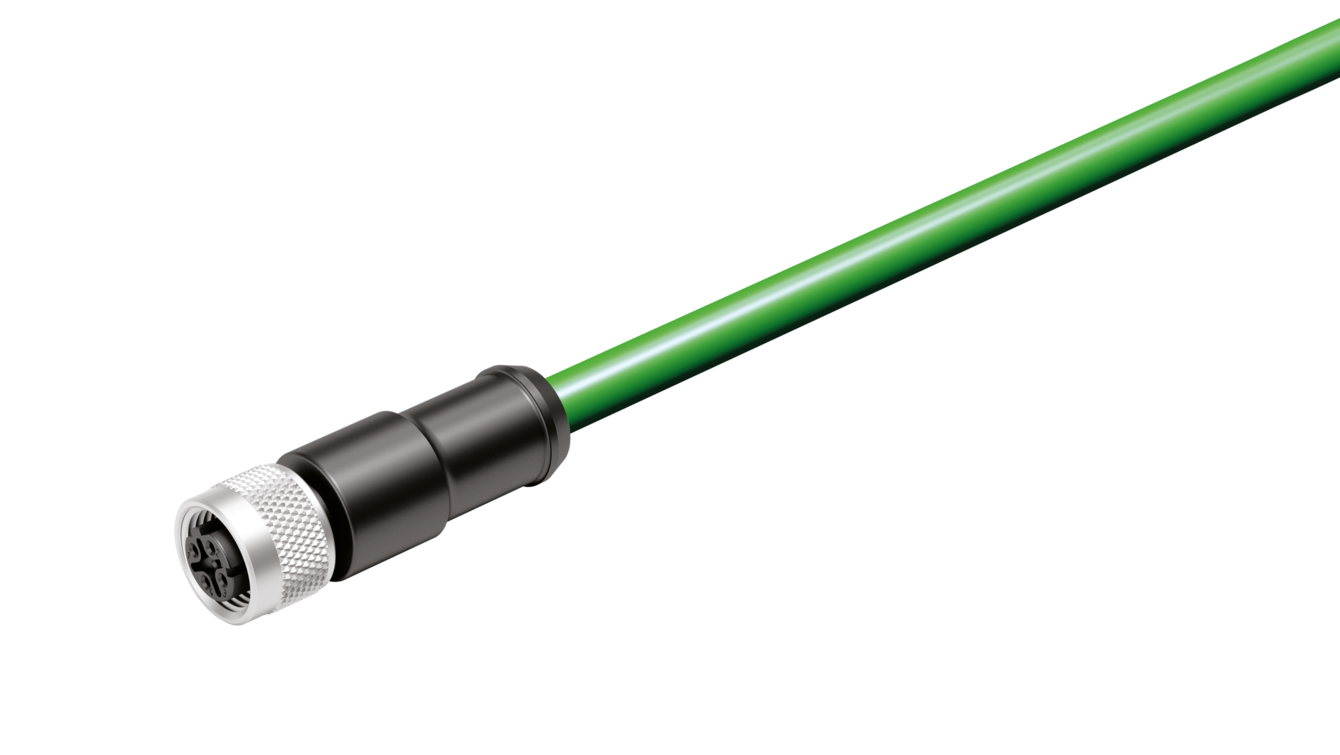

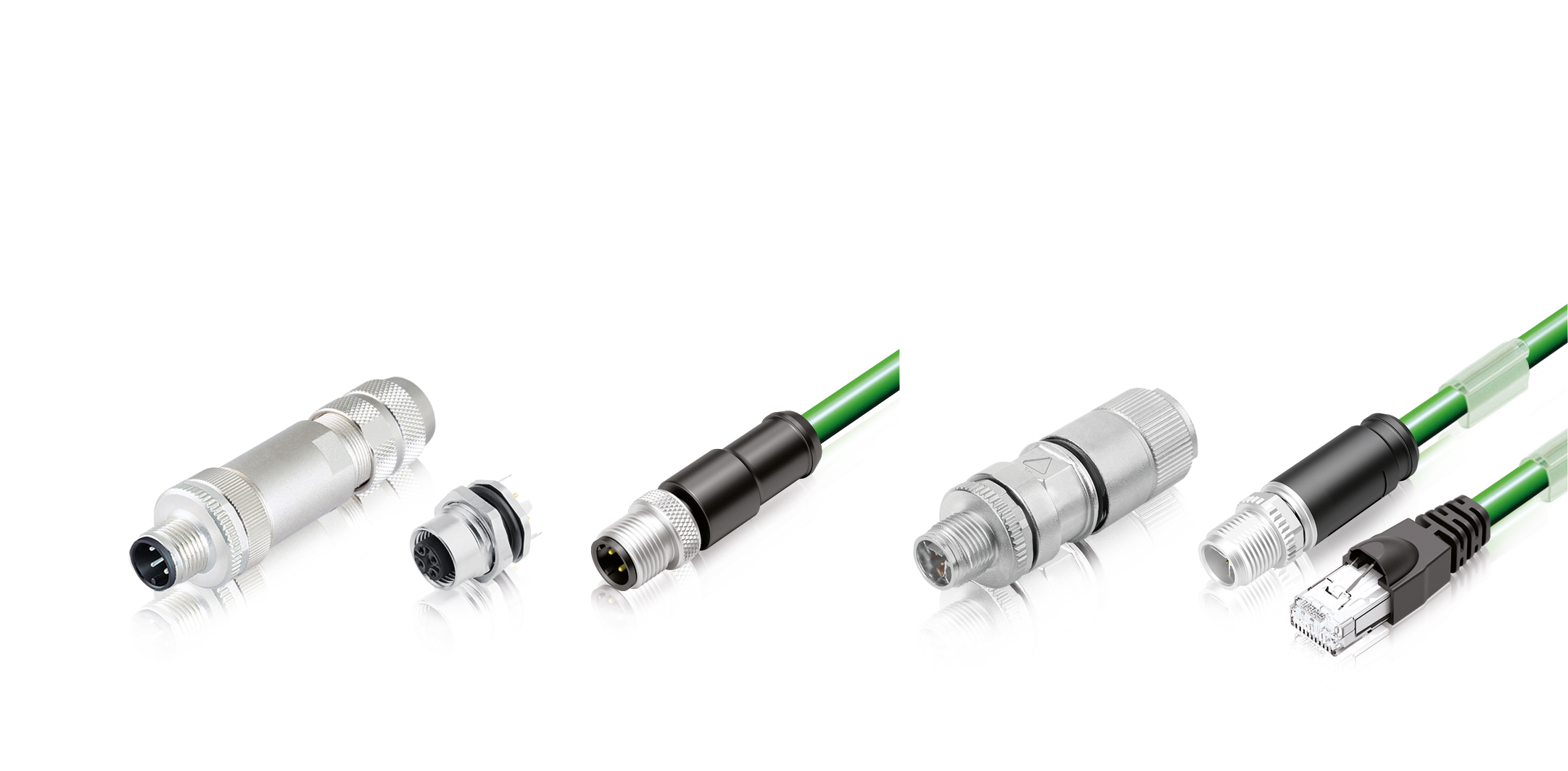

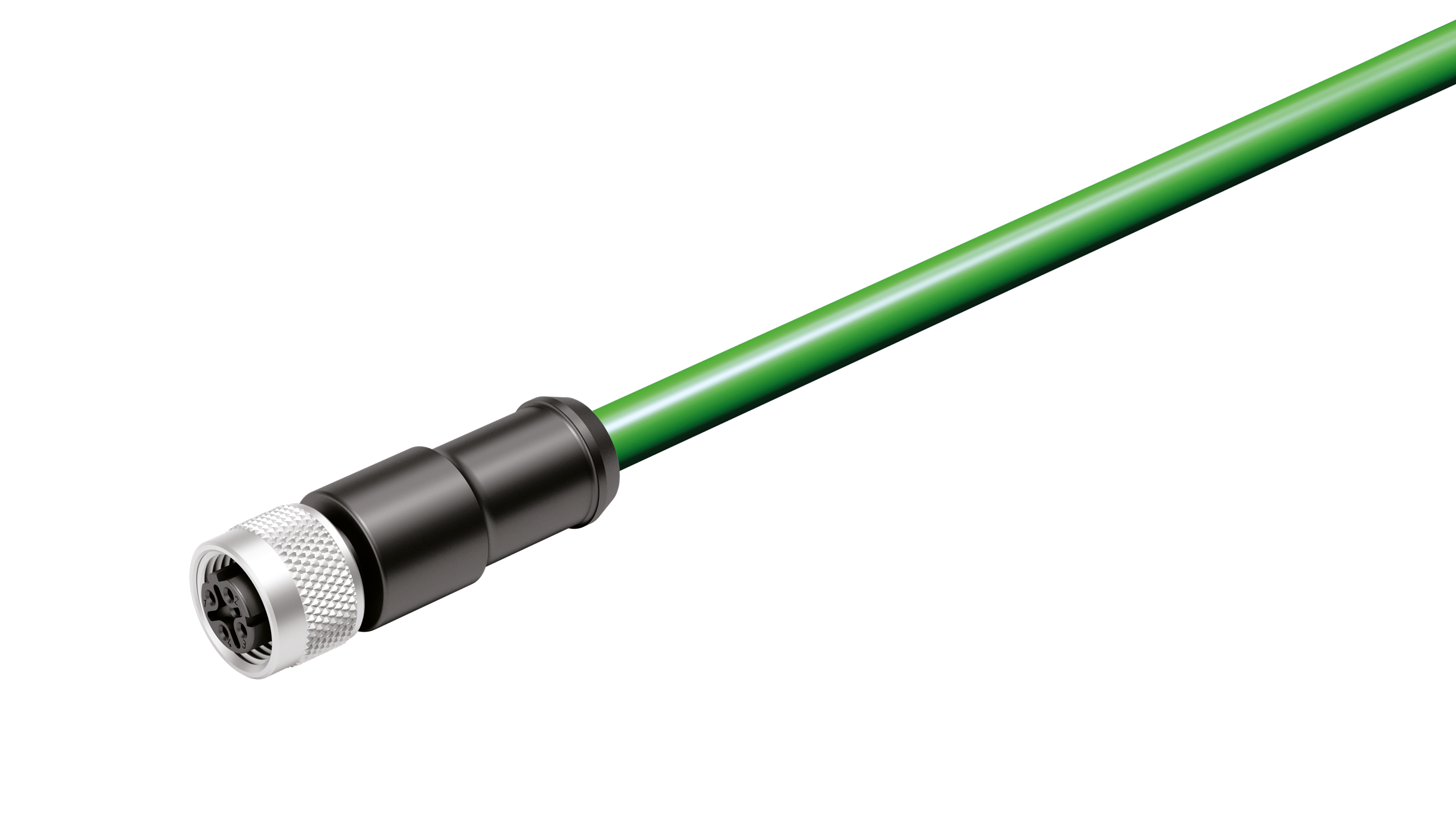

M12 D-Coded Connectors
The M12 D-coded family is optimized for industrial Ethernet and fieldbus systems. A M12 D-coded connector allows secure data communication, with the M12 D-coded Ethernet connector reaching speeds up to 100 Mbit/s. They are commonly seen in automation networking applications. Their standardized design ensures robust and reliable M12 connections, making them a preferred choice in many networking environments.

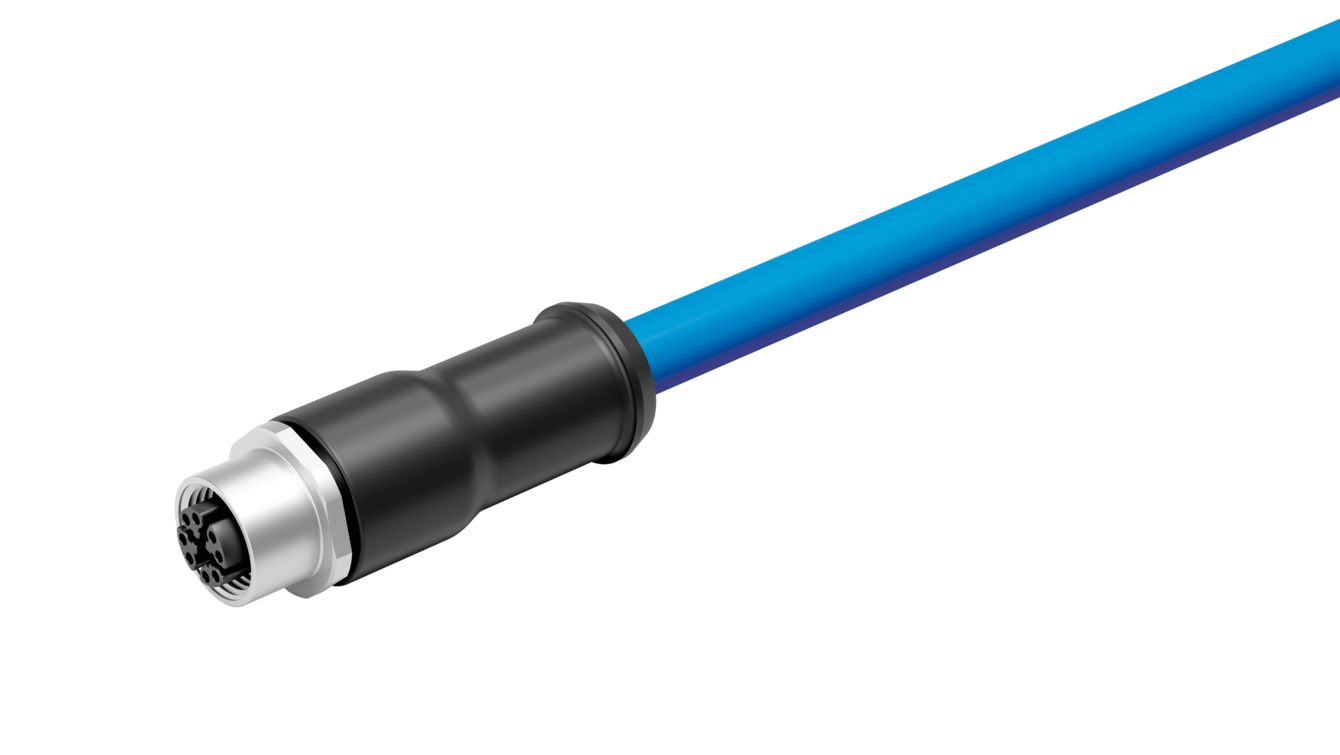

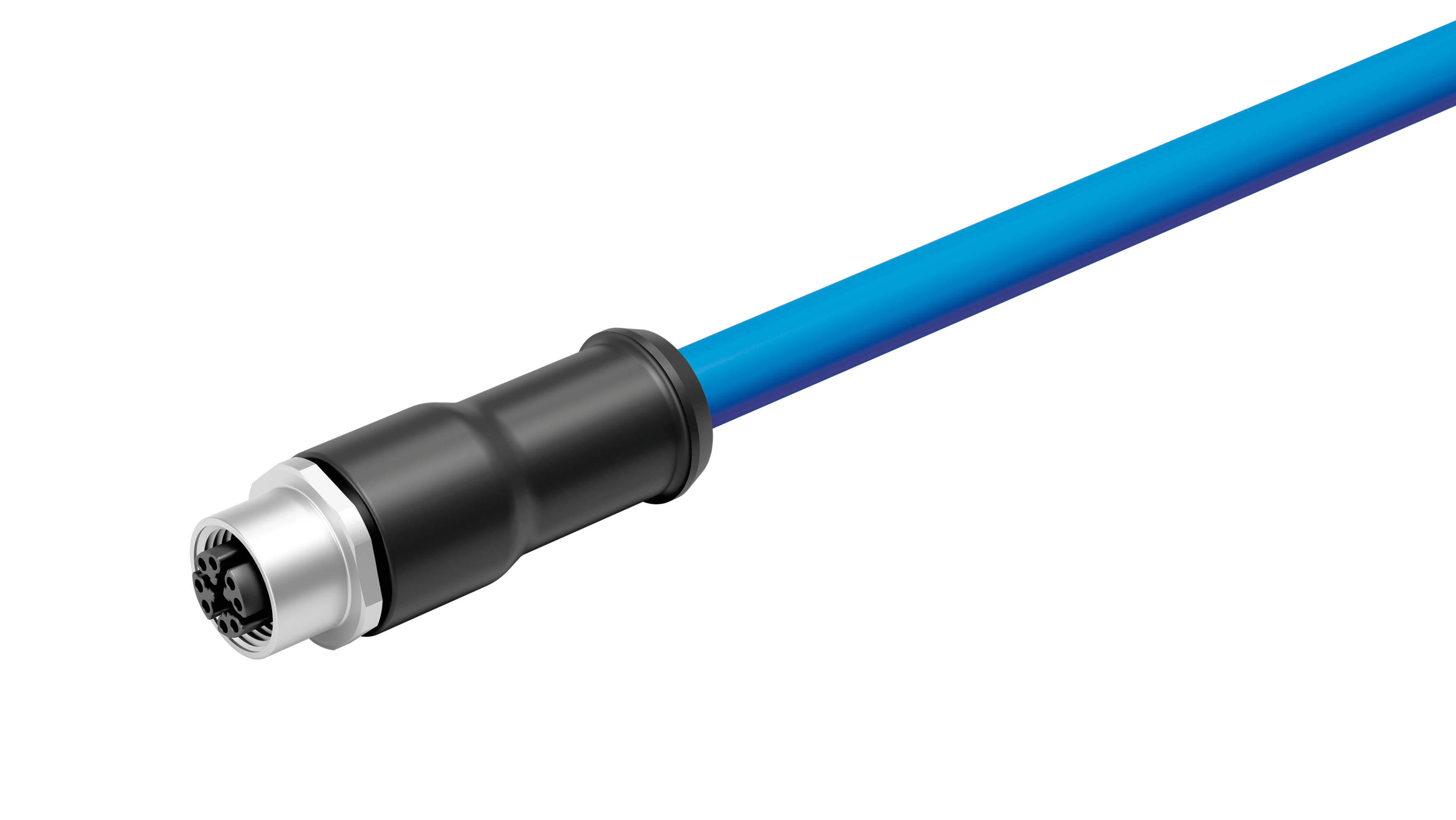

M12 X-Coded Connectors
For high-speed industrial Ethernet, M12 X-coded connectors are the standard. An M12 X-coded connector (also referred to as M12 X code) supports Cat6A transmission with data rates up to 10 Gbit/s. This makes them essential for future-ready automation networks, where data speed and bandwidth cannot be compromised.

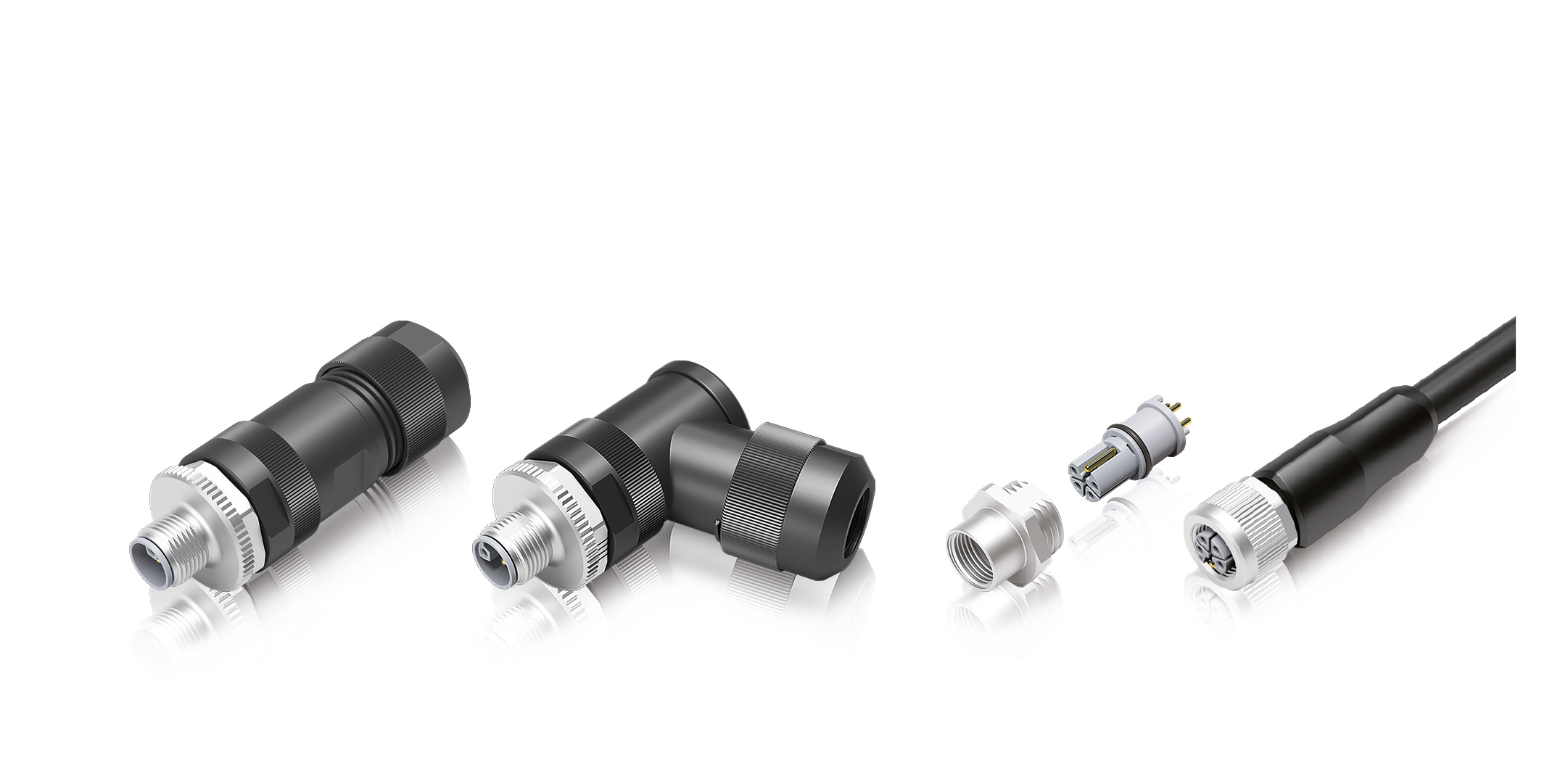

M12 L-Coded Connectors
M12 L-coded connectors (or L-coded M12) are optimized for transmitting DC power up to 16 A. An M12 L-coded cable offers efficient power distribution, making them a reliable choice in compact automation setups. Their robust design and high current capacity make them the ideal M12 electrical connector for next-generation power systems.

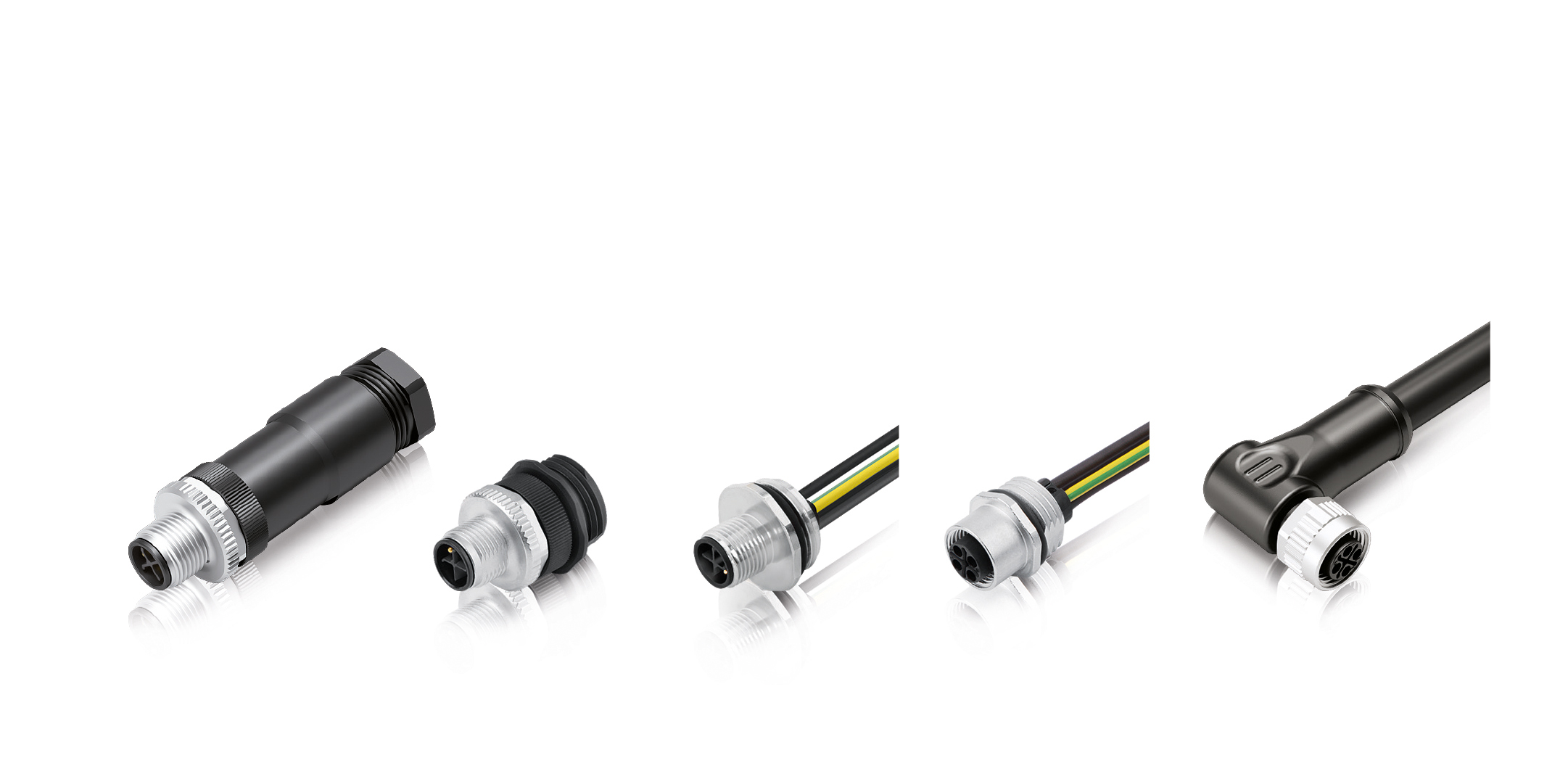

M12 S-Coded Connectors
M12 S-coded connectors are designed for AC power applications. Engineers appreciate S-coded M12 for reliable performance in compact machinery, where power transmission is key. This type of M12 circular connector is particularly useful when AC distribution is required in limited installation spaces.

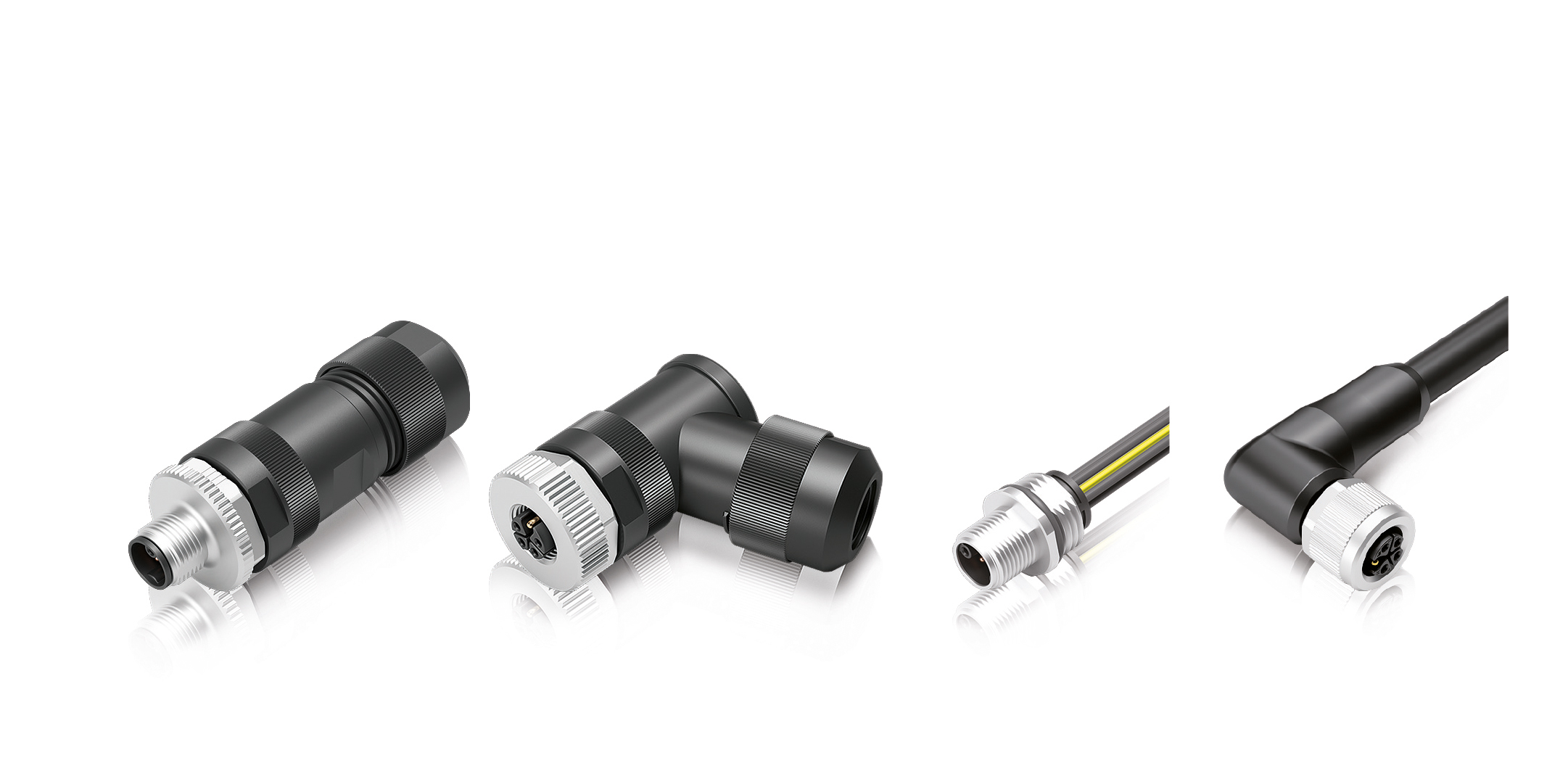

M12 K-Coded Connectors
The M12-K coded series is used for AC power applications with higher voltages, enabling safe and robust power transmission where M12 electrical connector reliability is critical. By separating them from other codings, they help eliminate wiring errors and ensure a safe M12 connection in demanding industrial environments.

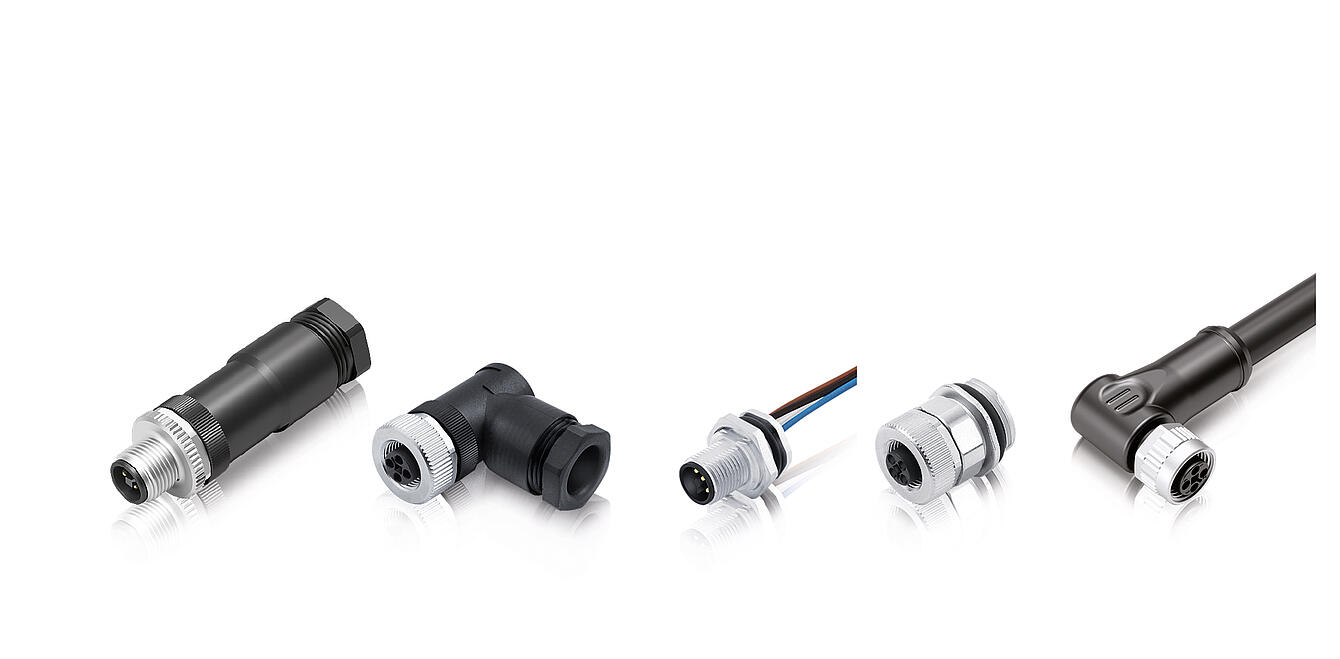

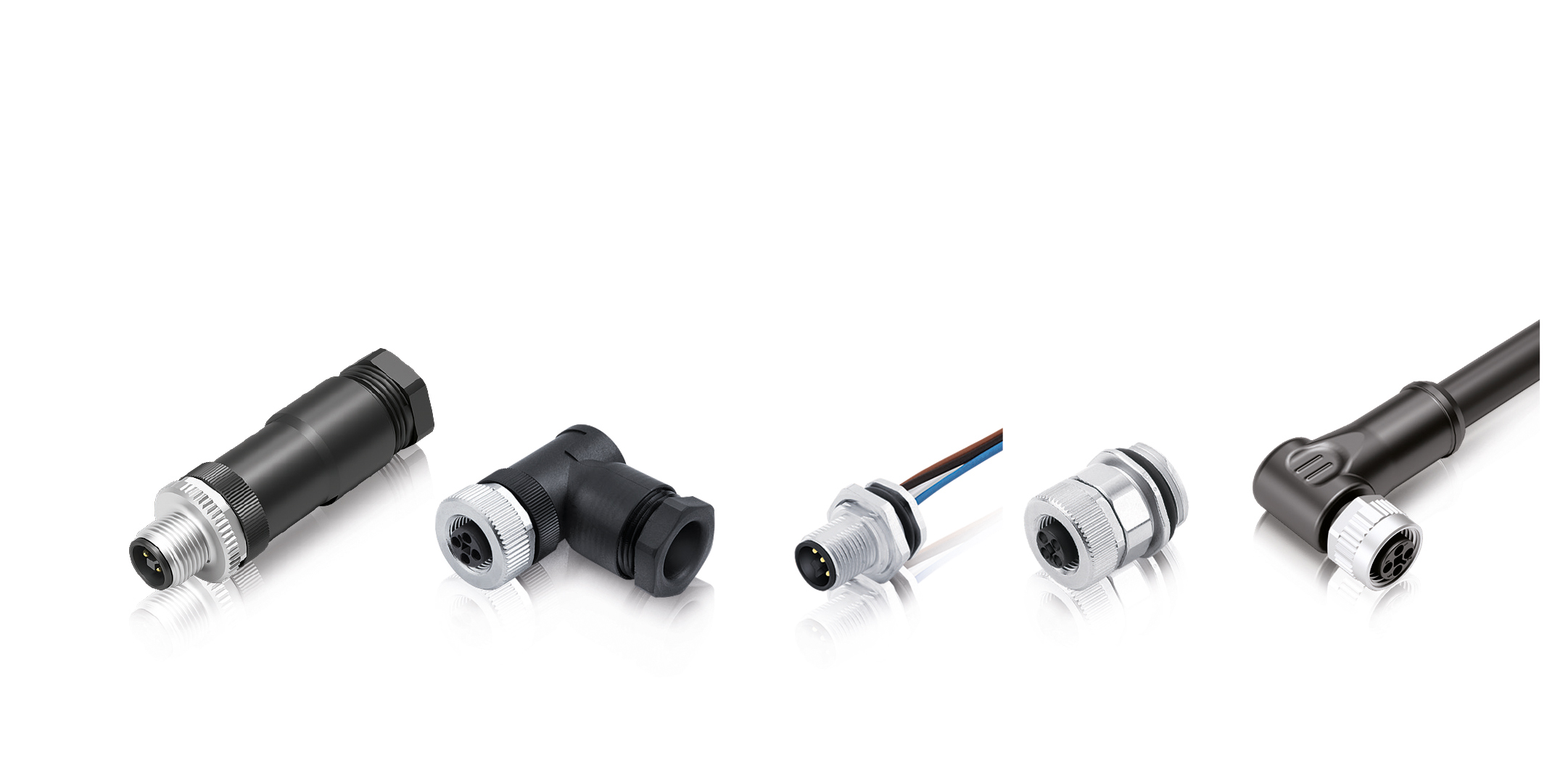

M12 T-Coded Connectors
M12 T-coded connectors provide safe DC power transmission. An M12 T-coded connector (also called T-coded M12) delivers up to 12 A, making them ideal for power-hungry automation devices. Their compact size and high-current capability make them one of the most efficient M12 connector types for decentralized power supply systems.

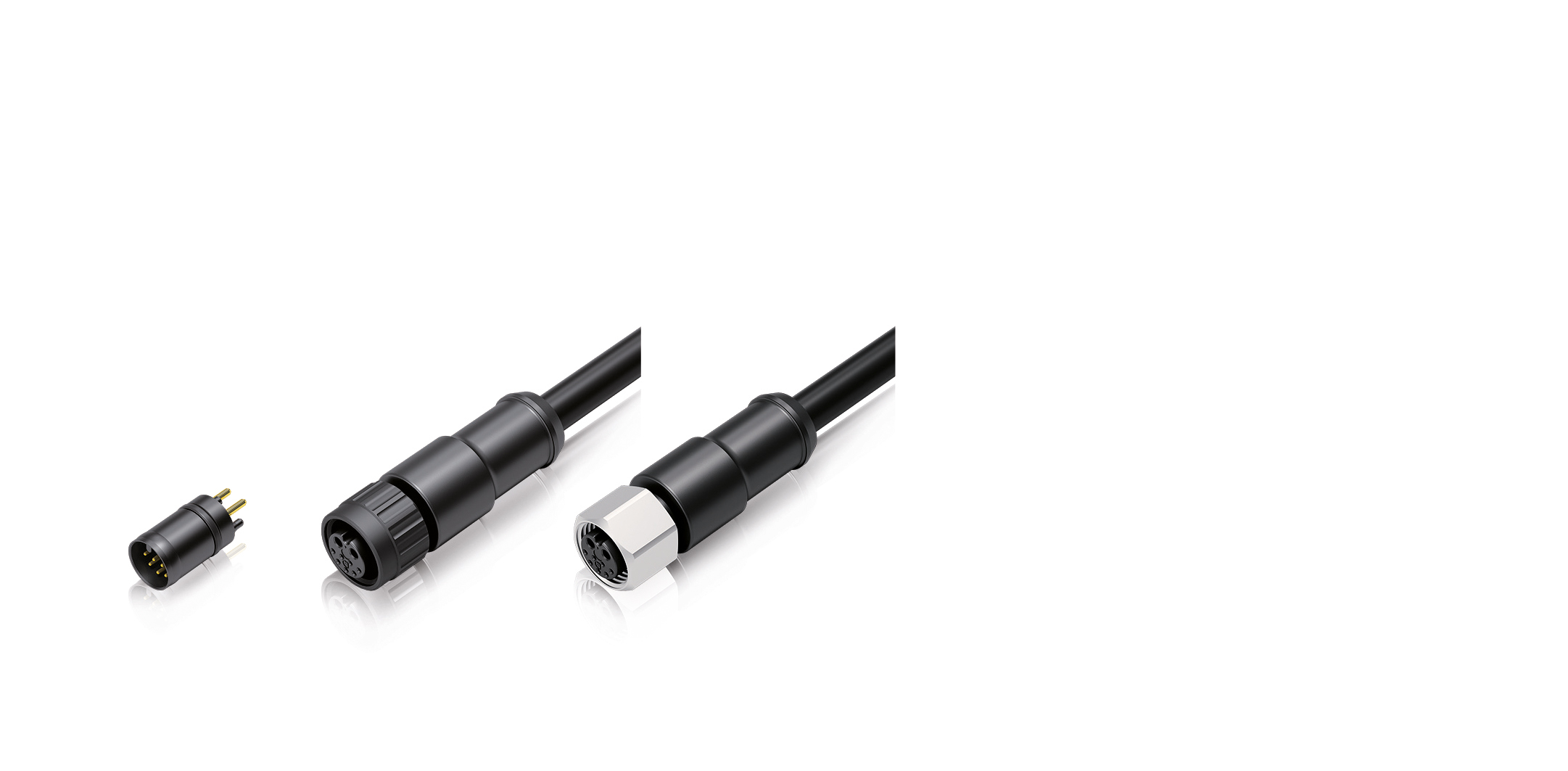

M12-Hybrid
M12-Hybrid solutions combine power and data in a single interface, minimizing wiring complexity. These are perfect when compact, efficient M12 connection designs are needed. Engineers often select them when space-saving designs are required, without sacrificing performance or reliability.

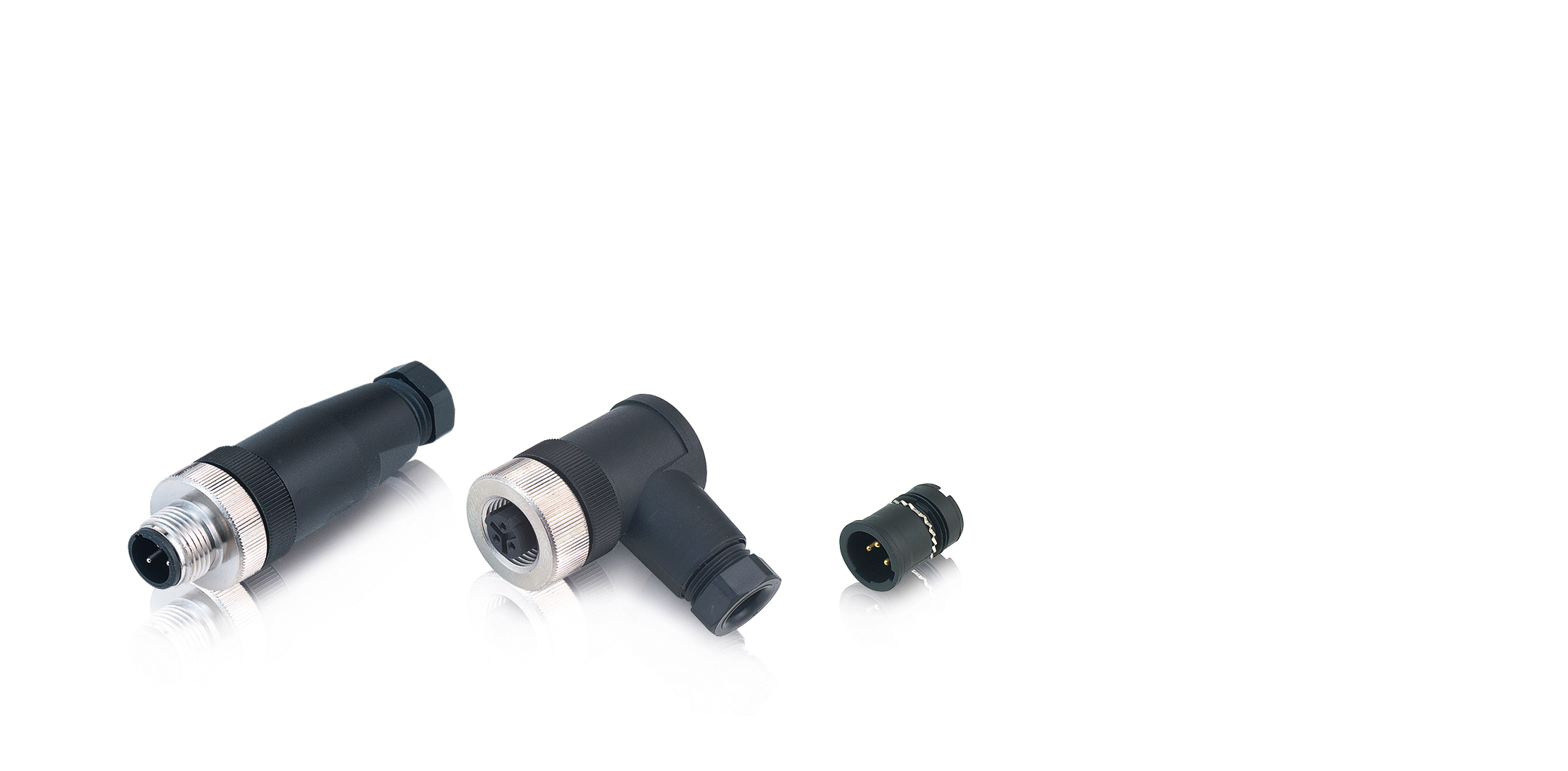

M12 US-Coded Connectors
M12-US connectors are specialized for the U.S. market, following UL standards and compliance needs. They extend the global compatibility of the M12 circular connector. With their adherence to U.S. certifications, they provide a reliable solution for engineers integrating equipment across international markets.

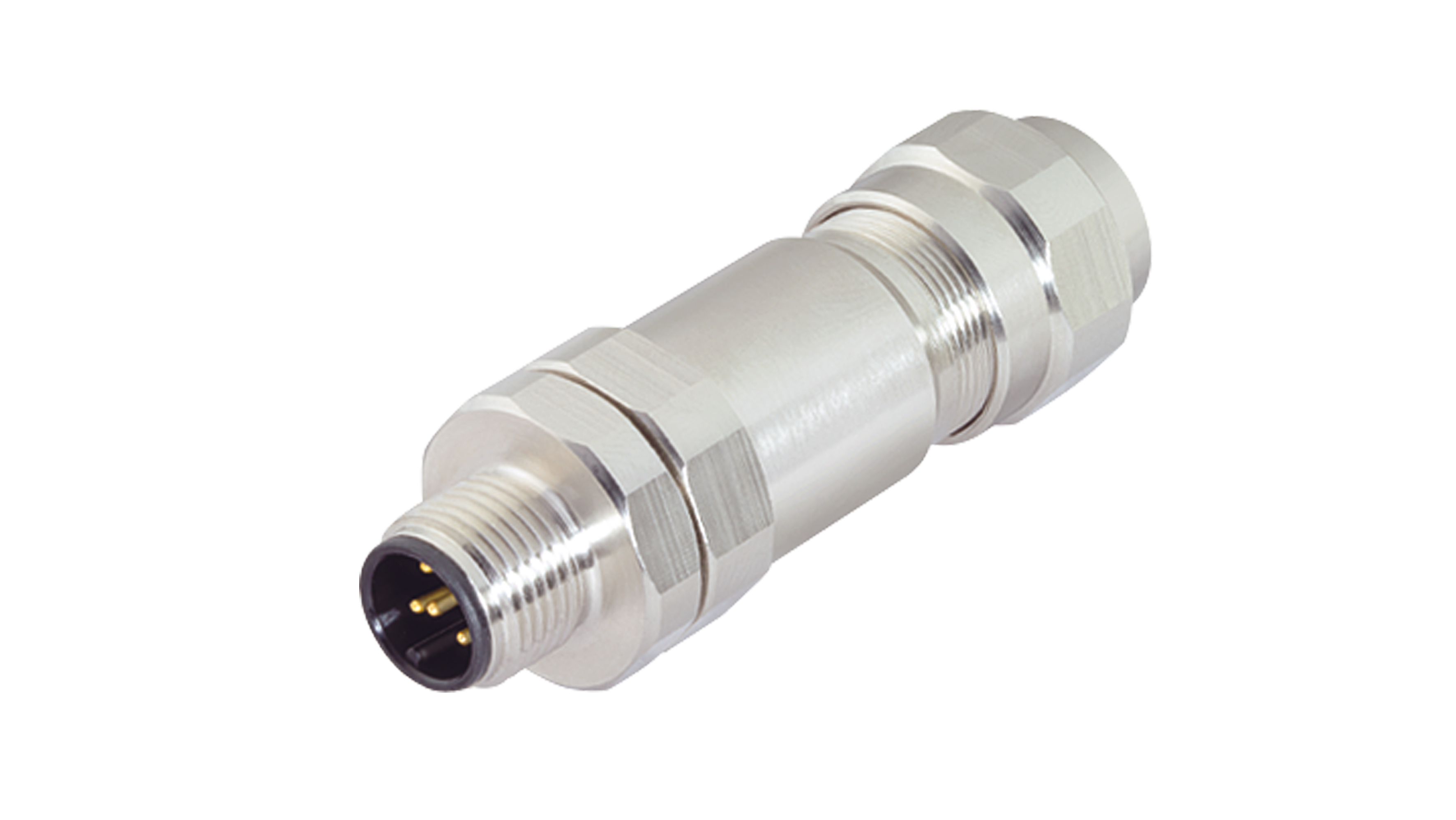

M12 Male Connector
An M12 male connector has protruding, rigid pins, also known as contact pins. An M12 male connector also has an external thread and is typically mounted on devices or cables. It is often used in panel mount solutions.

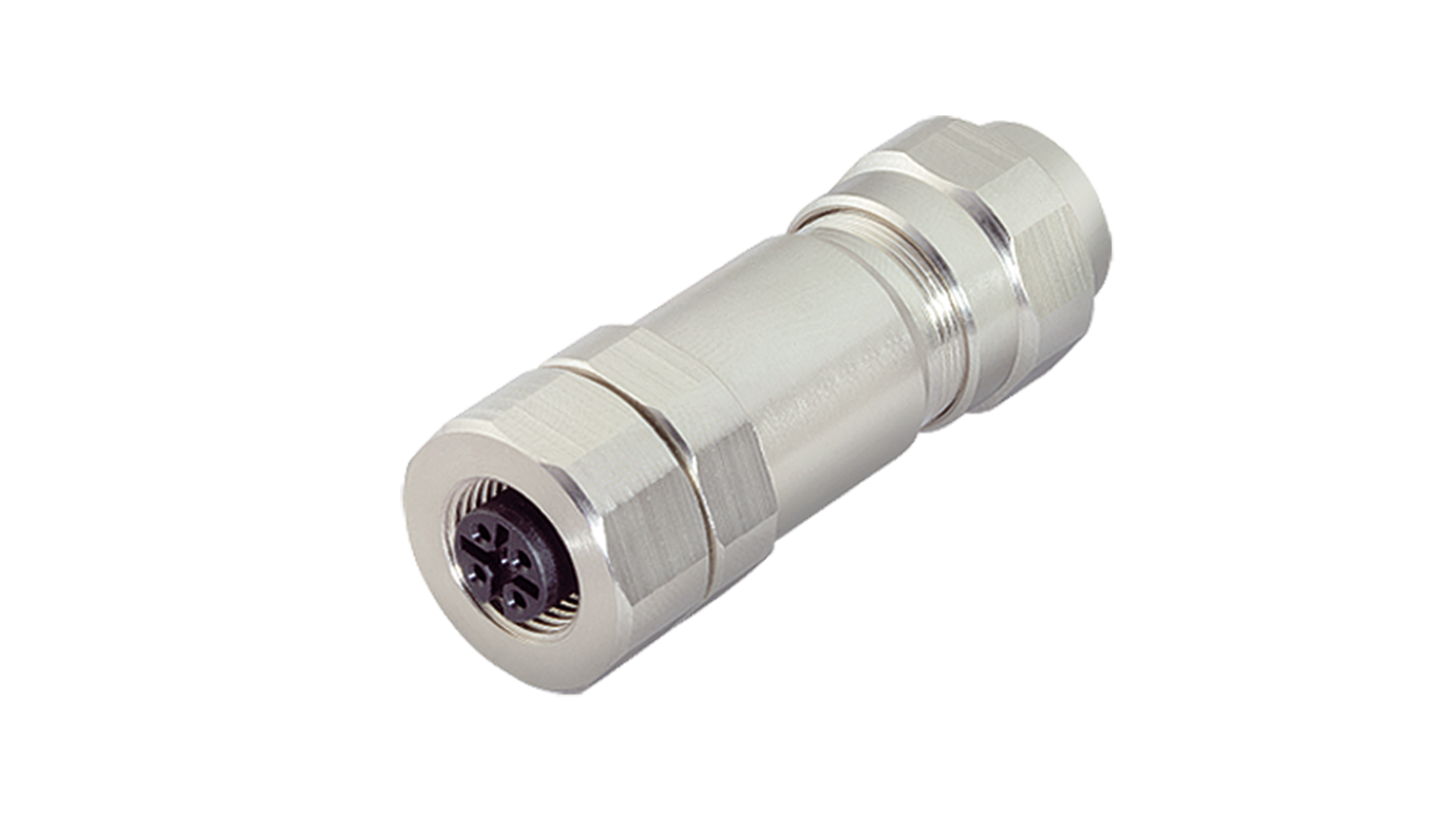

M12 Female Connector
The M12 female connector features internal threads and is the counterpart to the male version, completing the secure connection. Similar to male connectors, females are frequently used in panel mounts and on cable connectors, making them versatile for both machine interfaces and field cabling. An exception is the M12-X series, which only has female panel mounts due to the high-speed Ethernet contacts that require a fixed, vibration-proof installation to maintain signal integrity. Female connectors are essential in applications demanding durability, plug-and-play functionality, and consistent M12 circular connector performance.
The choice of gender for M12 connectors is a strategic decision that takes both functional and safety aspects into account. M12 plugs (cable plugs) on the cable and M12 couplings (cable sockets) on the device are the most common configuration and are considered standard for many industrial applications. However, the reverse configuration is also used for many requirements.
2-Pin M12 Connectors
M12 2-pin connectors are designed for simple power or signal applications, providing a compact and reliable connection where only two lines are needed. They are available in both M12-A and M12-B series, making them suitable for standard automation devices, sensors, and actuators. Engineers often use these connectors in situations where space is limited and a straightforward, robust M12 connection is sufficient, ensuring efficient installation without unnecessary complexity.
3-Pin M12 Connectors
A 3-pin M12 connector is typically used for simple sensors or actuator signals, providing a straightforward power or signal connection. It is most commonly seen with M12-A coding and is ideal for basic automation tasks where only a single signal or power line is needed. These connectors are often chosen for compact setups, minimizing wiring complexity. Furthermore, this pin configuration is seen in M12-S und M12 US-coded connectors.
4-Pin M12 Connectors
The M12 connector 4-pin (or M12 4 pin) is the most common configuration across our M12 portfolio, making it a versatile choice for general-purpose signal and low-voltage power transmission. Variants such as the M12 cable 4 pin, cable M12 4 pin, and 4 pin M12 female connector are widely used in M12-A, M12-B, M12-D, M12-X, M12-S, M12-K, M12-T, and M12-L coding, covering almost every coding configuration available. Engineers favor this pin count for standard sensor and actuator applications, fieldbus communication, and Ethernet-ready devices, as it provides a reliable, compact, and widely compatible M12 connection solution for diverse industrial setups.
5-Pin M12 Connectors
M12 5-pin connectors are versatile, enabling simultaneous transmission of signal and power lines within a single interface. They are commonly paired with M12-A, M12-B, M12-K, or M12-L coding, providing flexibility for various industrial applications. Engineers often use 5-pin connectors in sensors, actuators, and fieldbus systems, where both control signals and power need to be routed efficiently. The additional pin compared to 4-pin connectors allows for more complex wiring without adding extra cables, simplifying installation while maintaining robust M12 connections in demanding automation environments.
8-Pin M12 Connectors
M12 8-pin connectors enable simultaneous power and data transmission, frequently used with M12-A and M12-X devices. Engineers use them for industrial Ethernet, PROFINET, and multi-channel sensor networks, where high data throughput and multiple power lines are required. This pin count is ideal for sophisticated automation devices needing a compact yet high-capacity connection.
9-Pin M12 Connectors
M12 9-pin hybrid connectors combine power and signal transmission in a single interface, offering a streamlined solution for space-constrained industrial applications. This pin configuration is ideal for modern automation equipment that demands high efficiency without sacrificing robustness or performance.

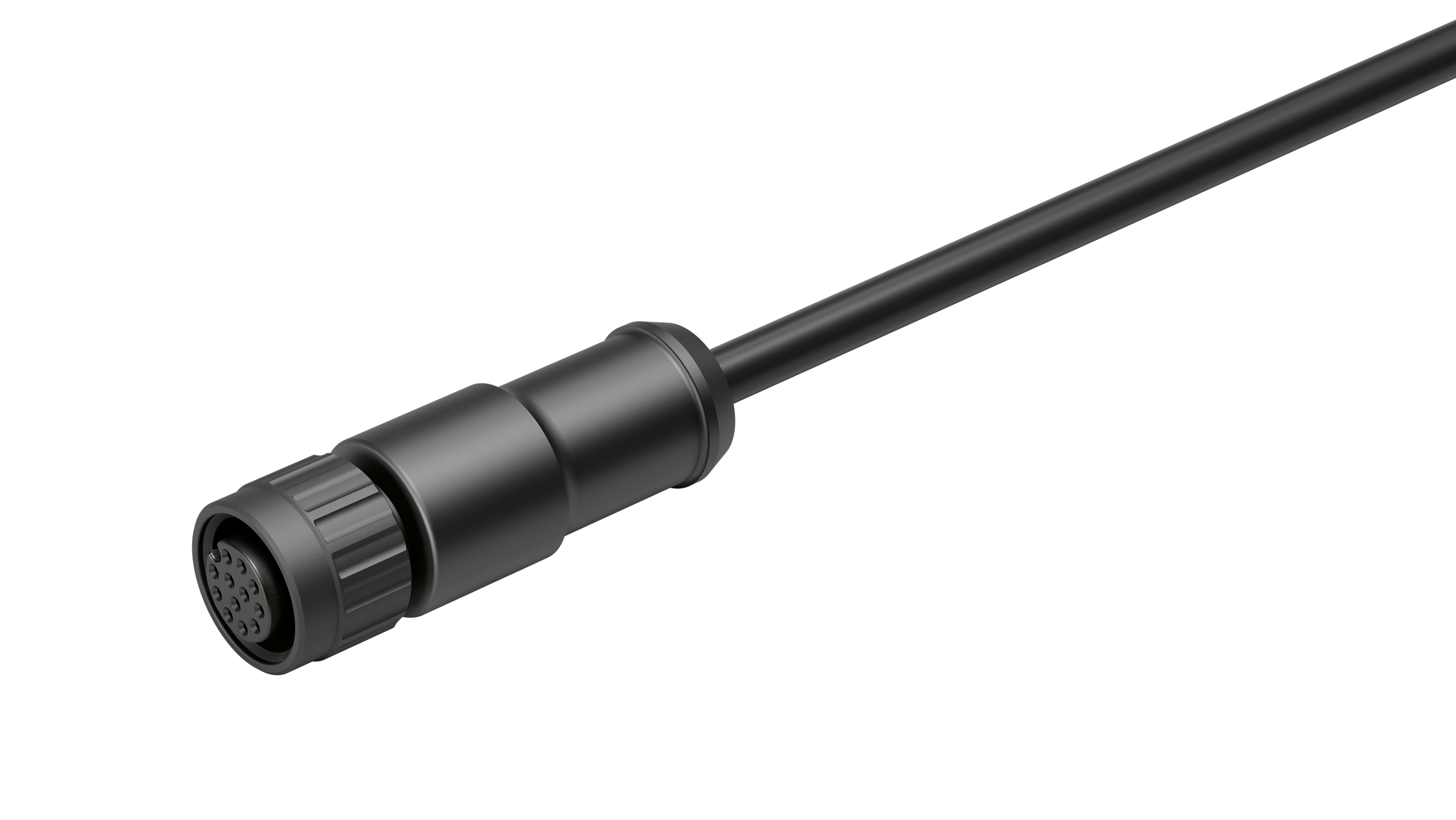

12-Pin M12 Connectors
The M12 12-pin connector is designed for complex applications requiring multiple signals and power lines within a single compact interface. Offered exclusively in M12 A-coding, these connectors are ideal for sophisticated sensor systems, multi-channel actuator networks, or automation devices where engineers need a reliable, high-density connection. Their 12 pins allow streamlined wiring and efficient integration without sacrificing space or performance.

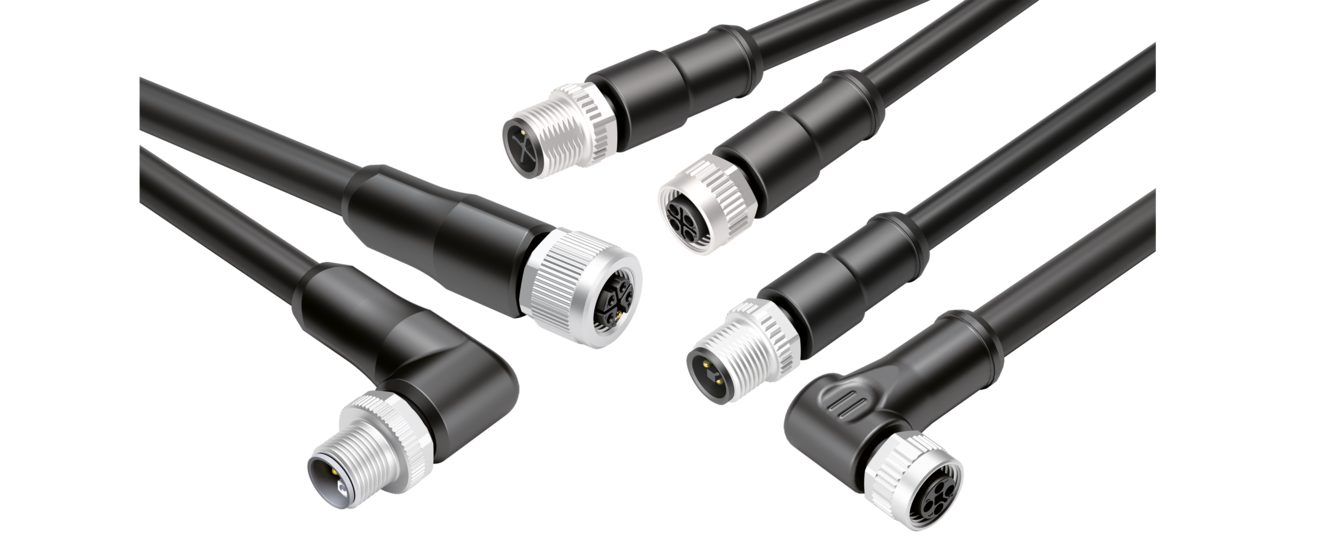

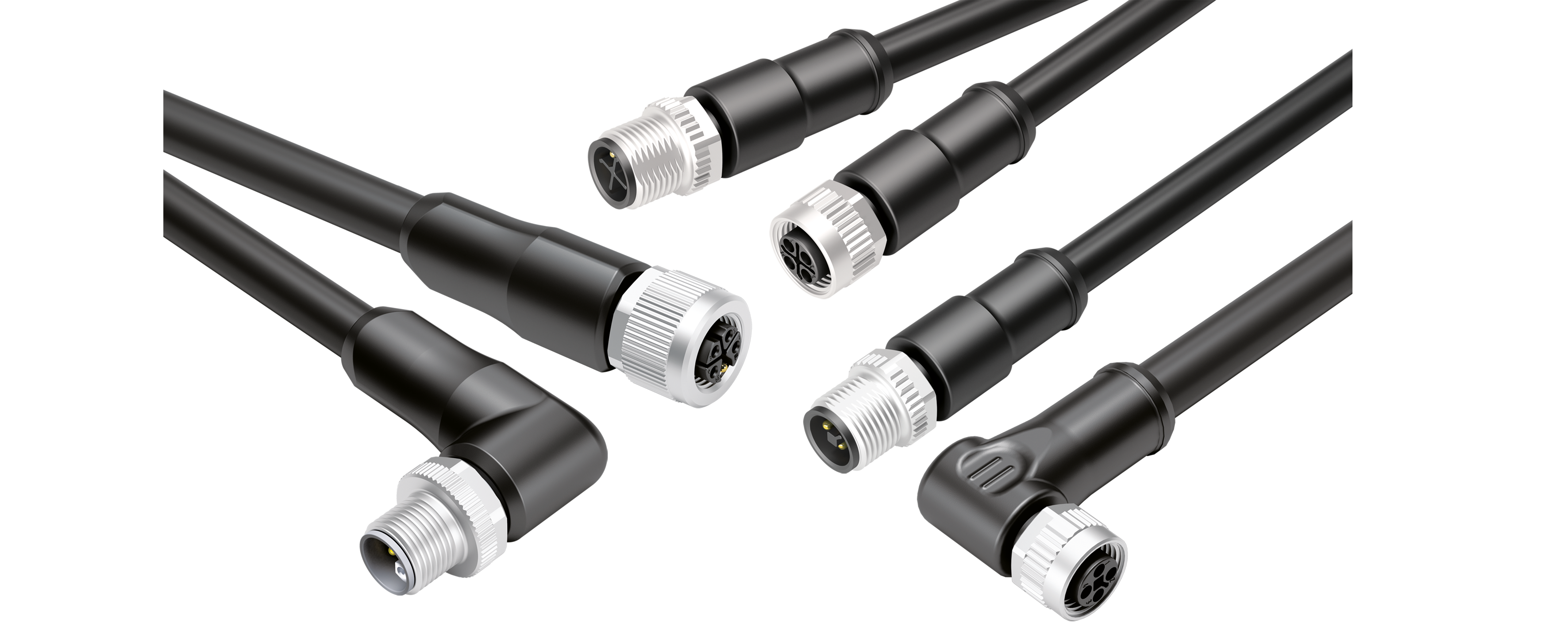

Pre-assembled M12 Cables
Factory-assembled M12 cables ensure fast installation, guaranteed quality, and minimized downtime. These plug-and-play solutions are available in various pin counts and codings to support both power and data applications. Pre-assembled cables also eliminate wiring errors and provide consistent performance under demanding industrial conditions, making them the preferred choice for automation engineers looking for reliability and efficiency.

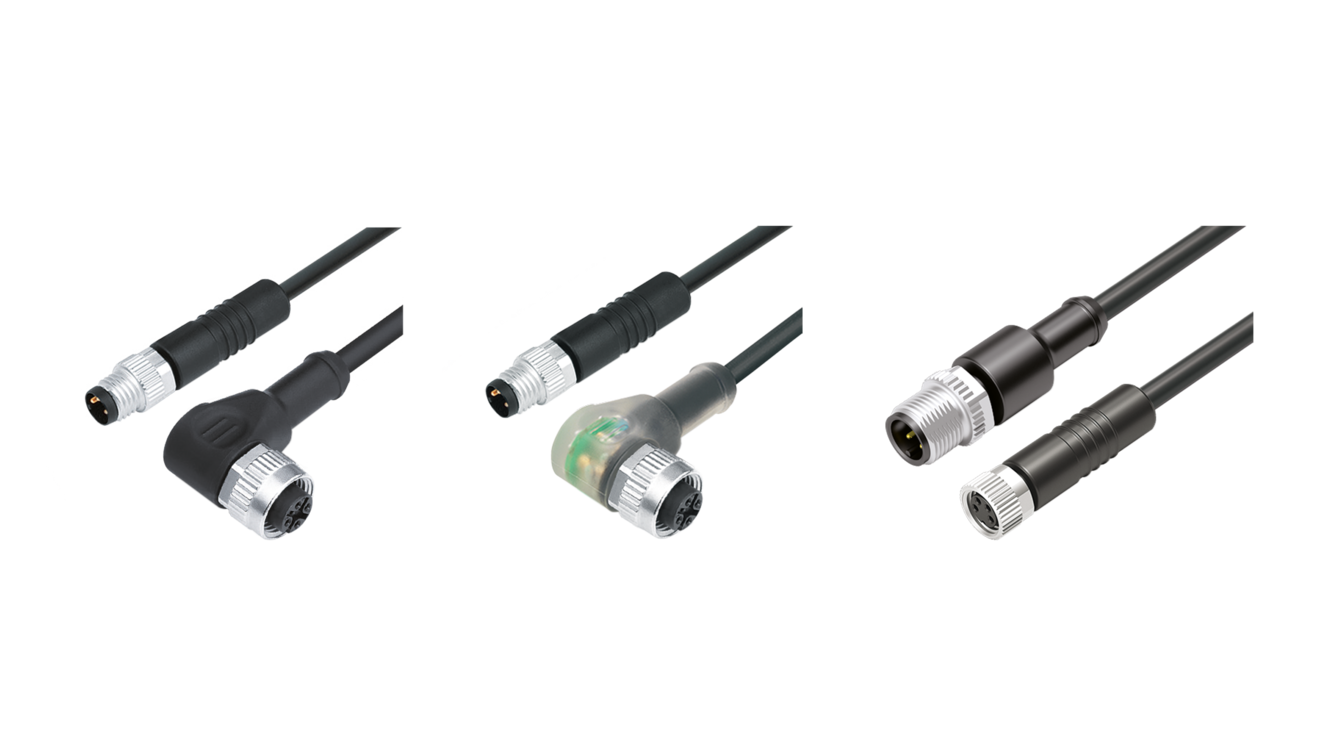

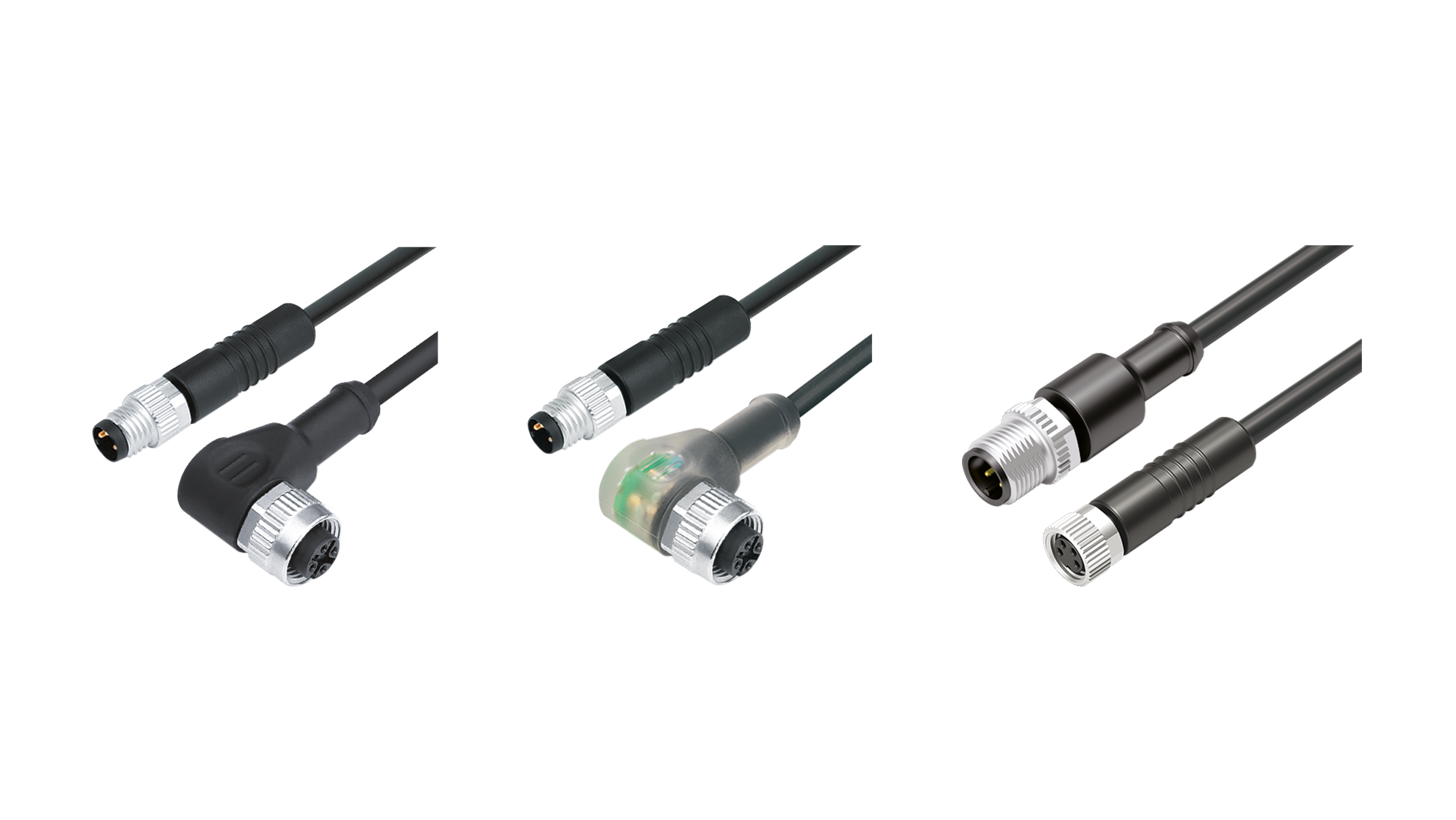

M12 to M8 Cables
An M12 to M8 cable (or M8 to M12 cable) is commonly used to connect devices with different interface standards. In automation systems, this allows compact sensors with M8 connectors to communicate seamlessly with controllers or devices using M12 connectors. Engineers value these hybrid solutions for their flexibility and ease of integration in mixed M8/M12 connector systems without the need for custom rewiring.

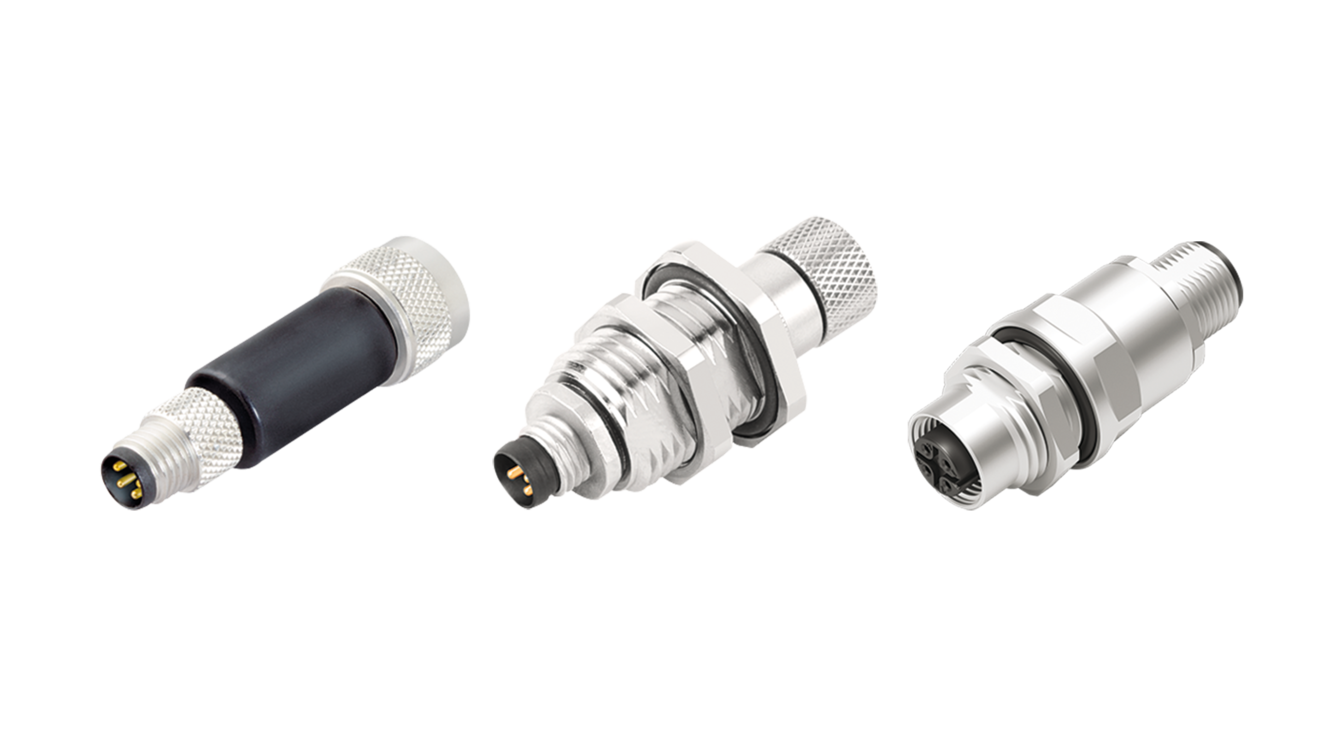

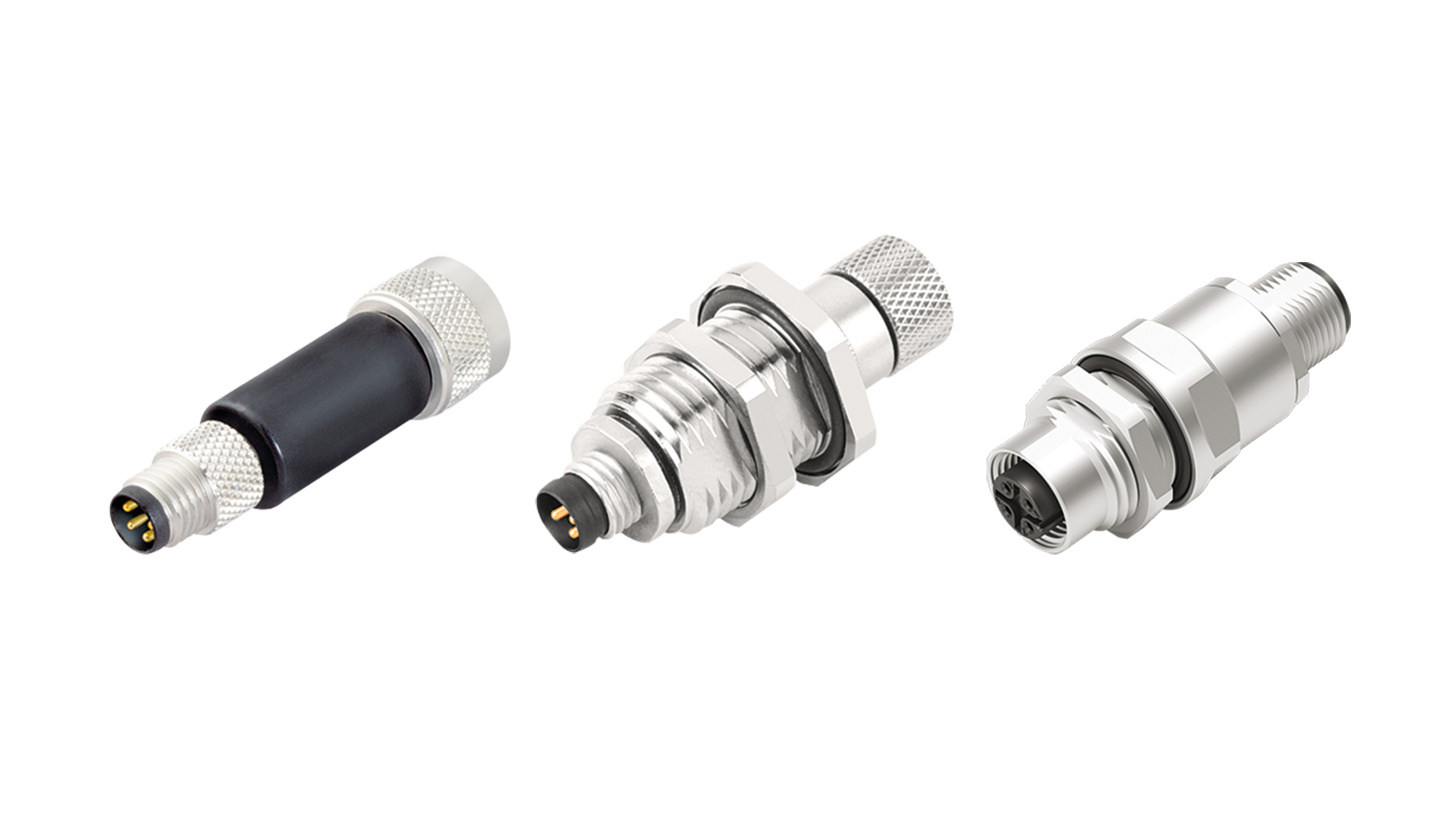

M12/M8 Adapters
An M12/M8 adapter (whether M12 to M8 adapter or M8 to M12 adapter) enables smooth transitions between connector standards. By reducing cabling complexity and minimizing the number of cable variants required in inventory, adapters ensure reliable M12 connections even in hybrid installations.

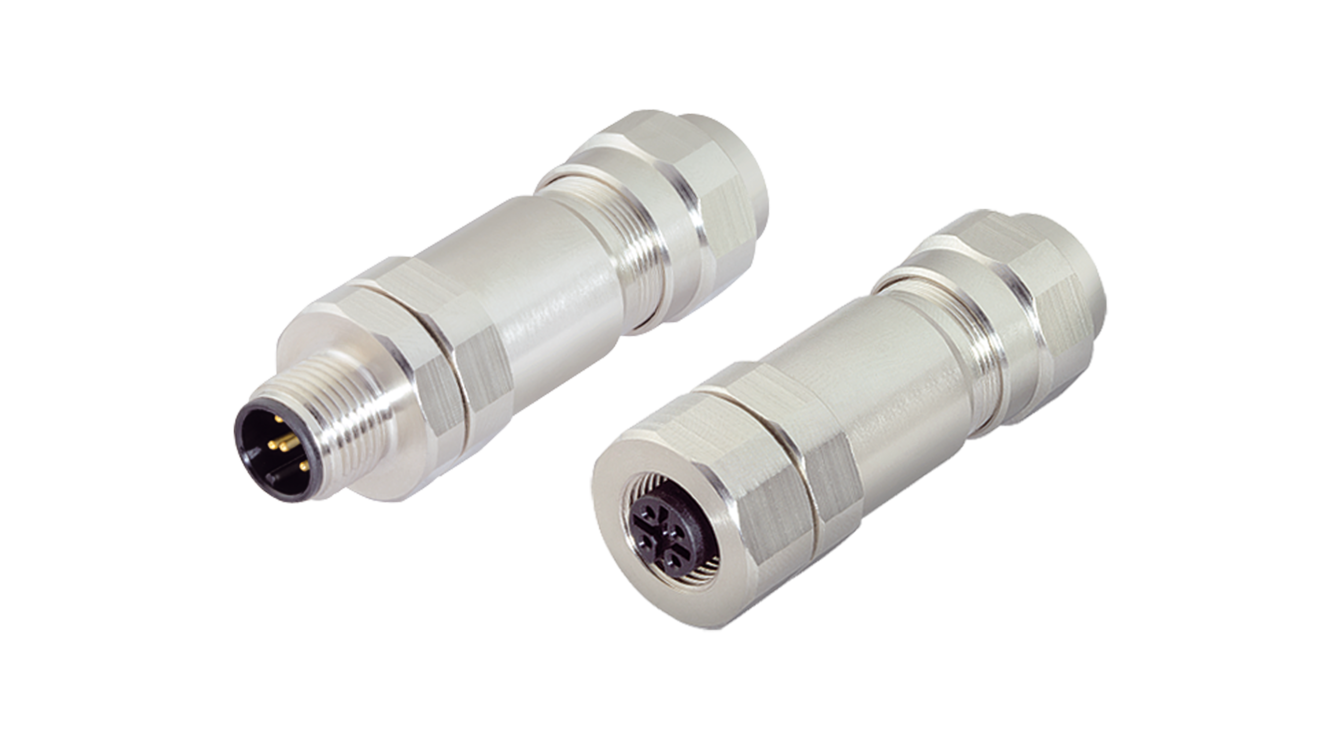

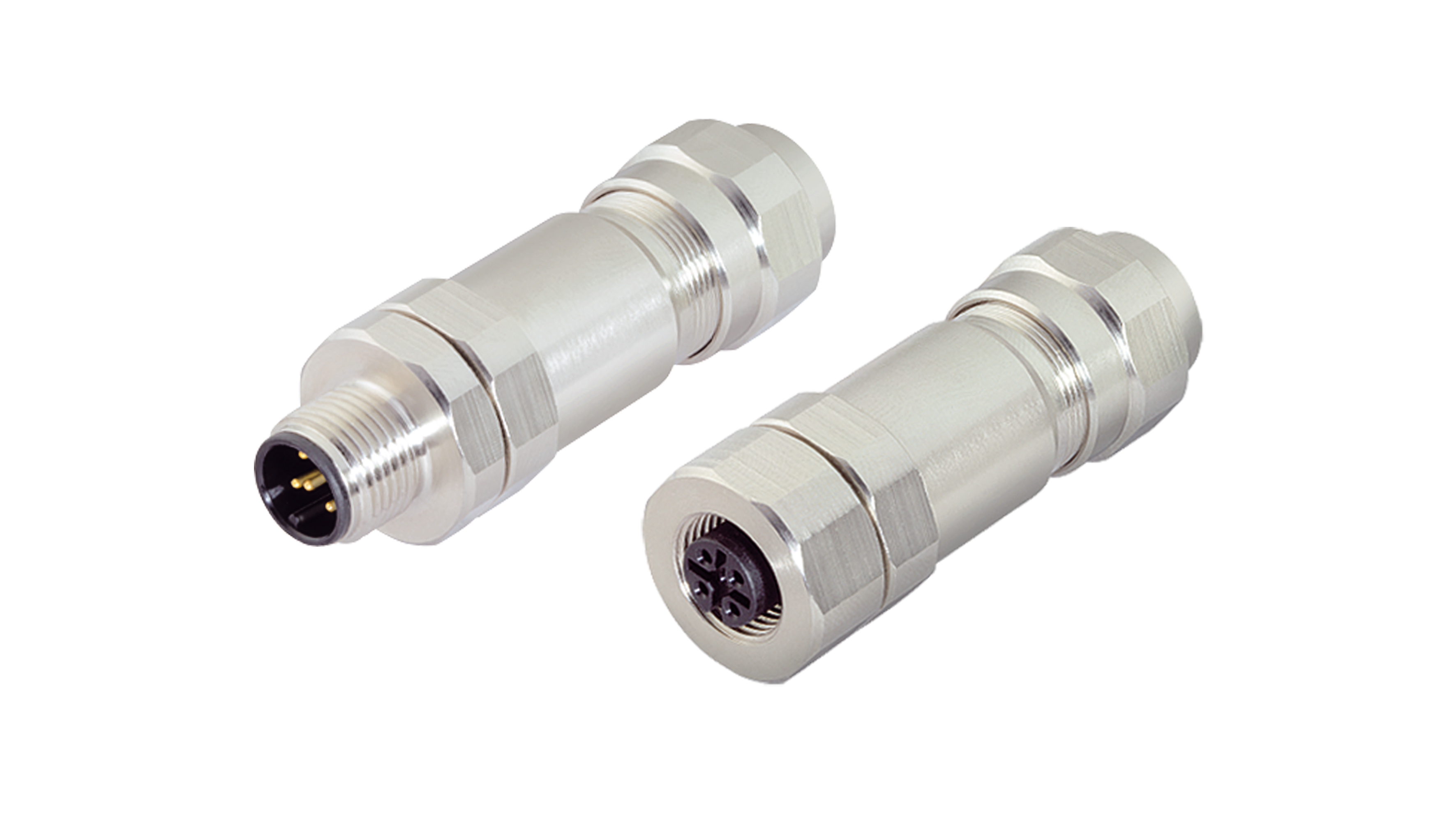

Field-Wireable Solutions
An M12 field-wireable connector is the ideal choice when custom cable lengths or on-site adjustments are necessary. Unlike pre-assembled M12 cables, field-wireable solutions allow engineers to tailor cabling exactly to their installation requirements while maintaining the robustness of the M12 interface. Available in straight and right-angle versions, these connectors provide maximum flexibility for retrofits, prototyping, and non-standard applications.

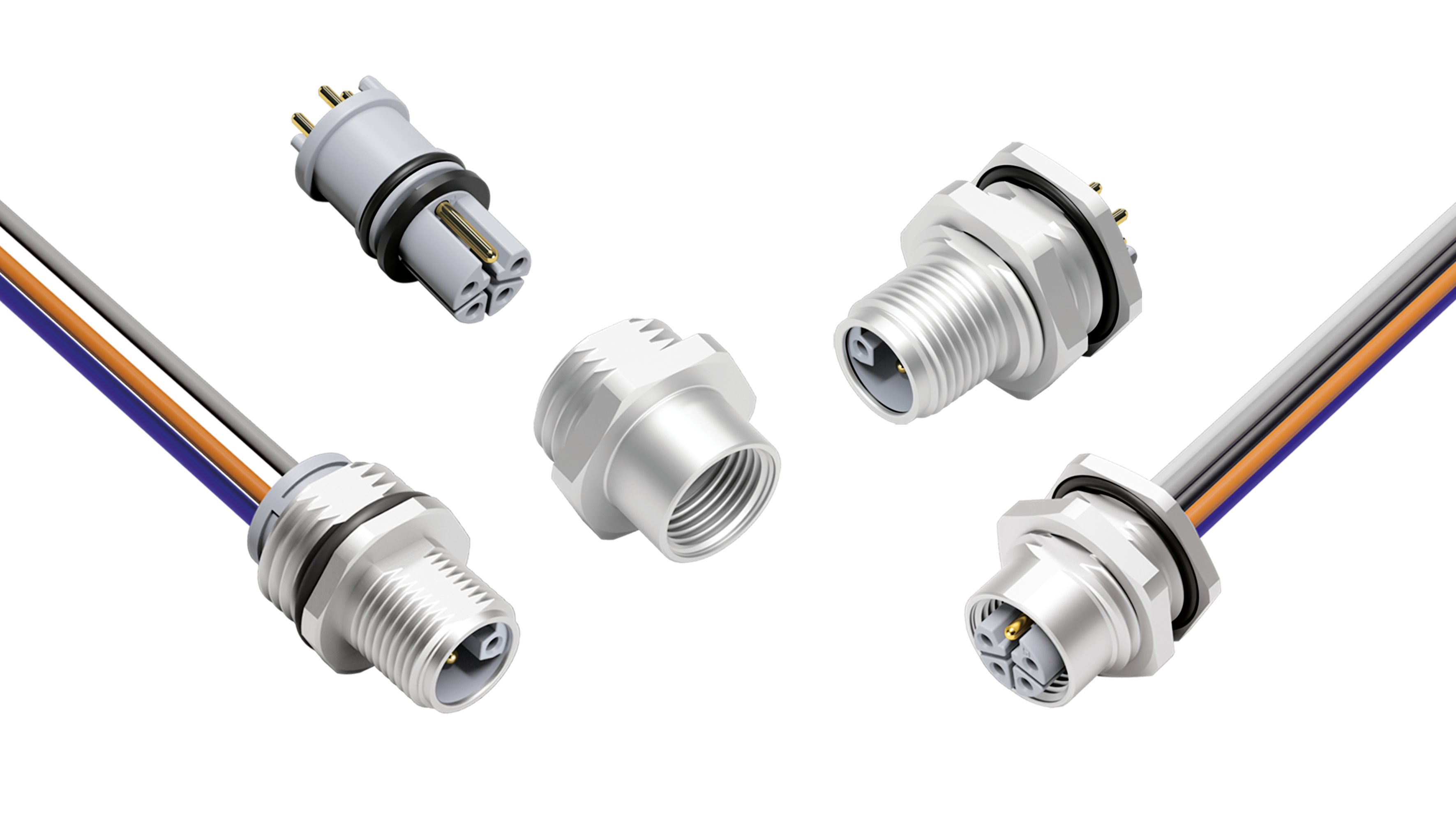

M12 Panel Mounts
An M12 panel mount integrates the connector directly into equipment housing, ensuring robust and permanent installation. Offered in both male and female configurations across most coding systems, panel mounts allow device manufacturers to embed the interface directly into enclosures. This provides a reliable and protected M12 circular connector interface with high resistance to dust, water, and mechanical stress. In special cases, such as the M12-X coded series, only female panel mounts are available to guarantee secure high-speed data transmission and prevent mis-mating.
