Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40

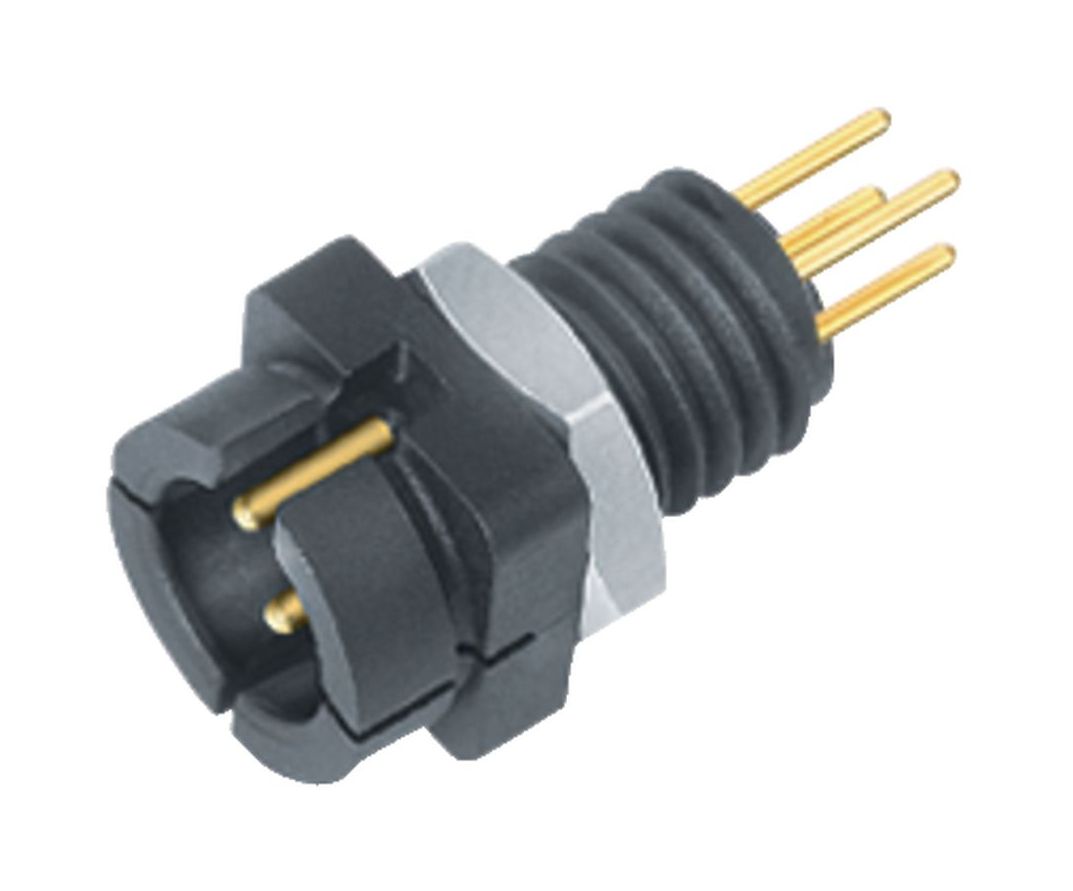

Illustration 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — Illustration

3D View 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — 3D View

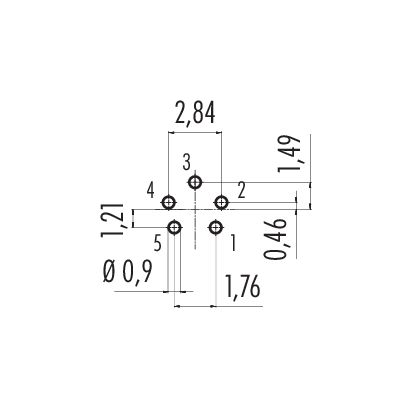

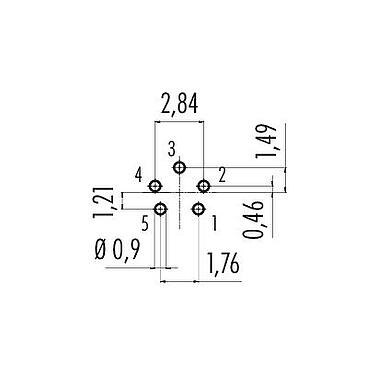

Conductor layout 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — Conductor layout

Component part drawing 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — Component part drawing

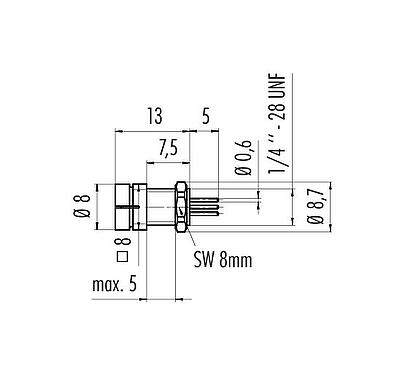

Scale drawing 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — Scale drawing

Assembly instructions / Panel cut-out 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) 09 9791 20 05 - Snap-In Male panel mount connector, Contacts: 5, unshielded, THT, IP40 — Contact arrangement (Plug-in side)

Part no.	09 9791 20 05
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	snap-in
Termination	THT
Degree of protection	IP40
Temperature range from/to	-25 °C / 70 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	1.32
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	800 V
Rated current	3,0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	c3203b35-c967-401c-b7fc-f02dfca62a87

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
