Male panel mount connector, Contacts: 4, unshielded, THT, IP40

Illustration 09 9765 20 04 - Male panel mount connector, Contacts: 4, unshielded, THT, IP40 — Illustration

3D View 09 9765 20 04 - Male panel mount connector, Contacts: 4, unshielded, THT, IP40 — 3D View

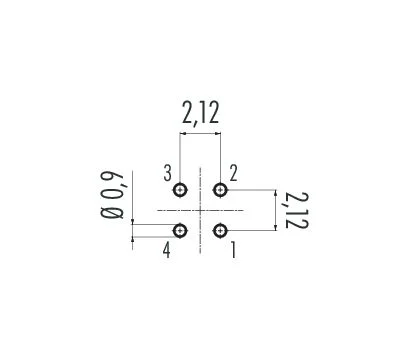

Component part drawing 09 9765 20 04 - Male panel mount connector, Contacts: 4, unshielded, THT, IP40 — Component part drawing

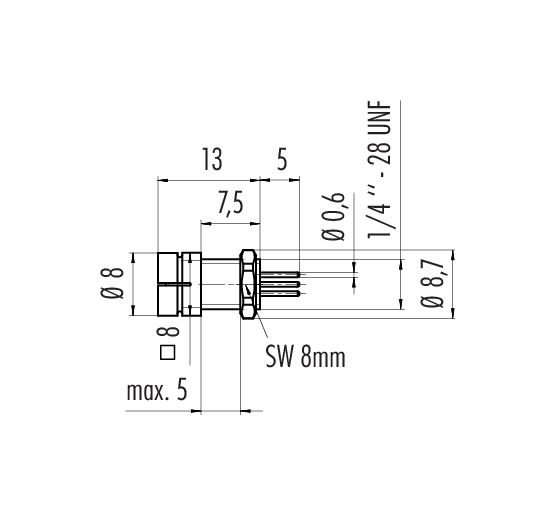

Scale drawing 09 9765 20 04 - Male panel mount connector, Contacts: 4, unshielded, THT, IP40 — Scale drawing

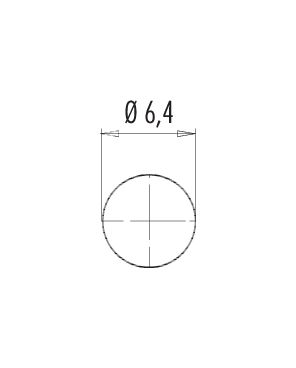

Assembly instructions / Panel cut-out 09 9765 20 04 - Male panel mount connector, Contacts: 4, unshielded, THT, IP40 — Assembly instructions / Panel cut-out

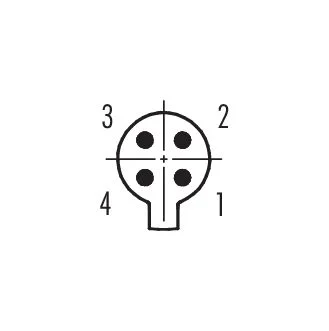

Contact arrangement (Plug-in side) 09 9765 20 04 - Male panel mount connector, Contacts: 4, unshielded, THT, IP40 — Contact arrangement (Plug-in side)

Part no.	09 9765 20 04
Connector design	Male panel mount connector
Version	Connector pin straight
Connector locking system	snap-in
Termination	THT
Degree of protection	IP40
Temperature range from/to	-25 °C / 70 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	1.22
Customs tariff number	85369010

Rated voltage	60 V
Rated impulse voltage	800 V
Rated current (40 °C)	3,0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	unshielded

Housing material	PA
Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	b998ffe3-5fdd-4ba6-acbe-fbd7a3ce07f7

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Report error on this page

Security notices

The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
