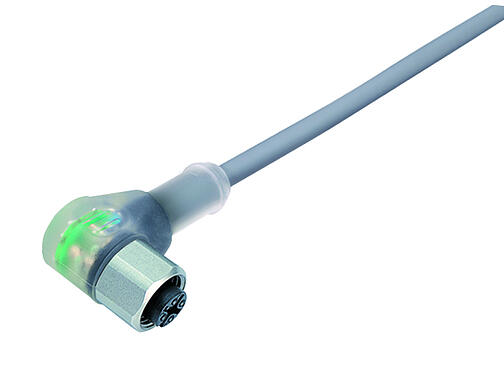

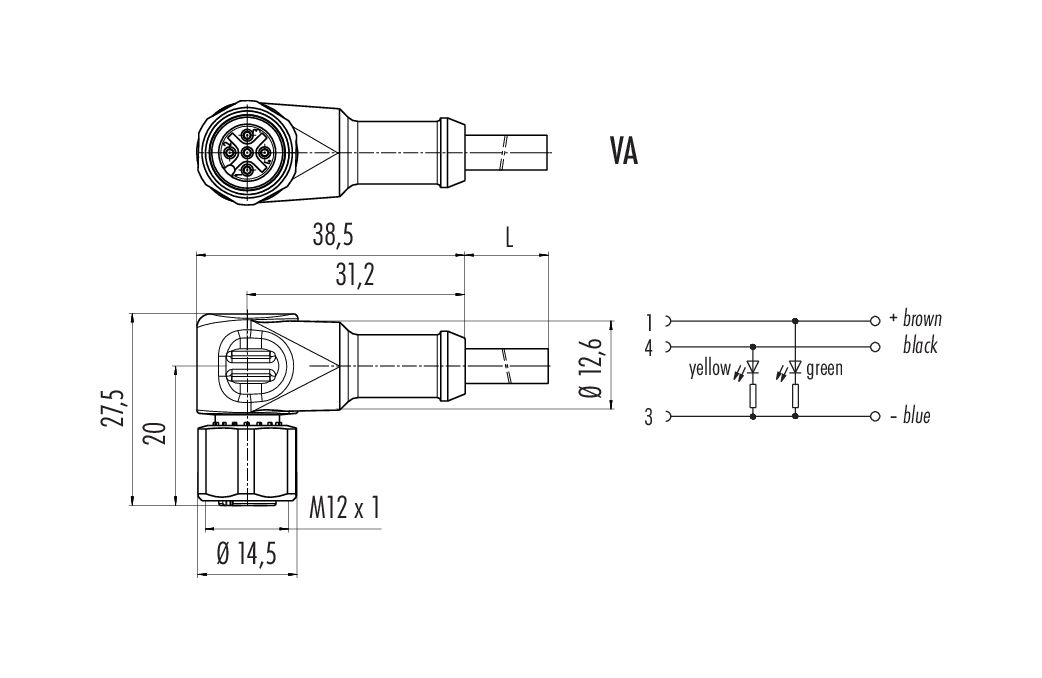

  4. M12 Female angled connector, Contacts: 4, unshielded, moulded on the cable, IP69K, PVC, grey, 4 x 0.34 mm², stainless steel, 5 m
Part no.: 77 3834 0000 20004-0500

M12 Female angled connector, Contacts: 4, unshielded, moulded on the cable, IP69K, PVC, grey, 4 x 0.34 mm², stainless steel, 5 m

M12-A, series 763, Automation Technology - Sensors and Actuators
Available numbers of contacts
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads
General features
Moreless
Part no. 77 3834 0000 20004-0500
Connector design Female angled connector
Type standard DIN EN 61076-2-101
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector socket angled
Connector locking system screw
Termination moulded on the cable
Degree of protection IP69K
Cross-sectional area 0.34 mm² / AWG 22
Temperature range from/to -25 °C / 90 °C
Mechanical operation > 100 Mating cycles
Additional information stainless steel
Weight (g) 175
Customs tariff number 85444290
Country of Origin DE
Rated voltage 10 - 30 V
Rated impulse voltage 500 V
Rated current 4.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PUR
Contact body material PUR
Contact material CuSn (bronze)
Contact plating Au (gold)
Locking material Stainless steel
REACH SVHC None (No pollutants)
SCIP number SCIP-number not available
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Cable data
Moreless
Structure of the cable
Cable diameter 4.8 mm
Cross section 4 x 0.34 mm²
Sheath material PVC
Single-lead insulation PVC
Single-lead structure 42 x 0.10 mm
Cable color grey
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles 2 million
Permitted acceleration 5 m/s²
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 2 m
Travel speed ≤ 200 m/min (5 m horizontal distance)
Thermal properties
Temperature range cable in move from/to -5 °C / 105 °C
Temperature range cable fixed from/to -40 °C / 105 °C
Other features
Halogen free no
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  4. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  5. To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 60 cNm).
