Part no.: 79 5474 100 04

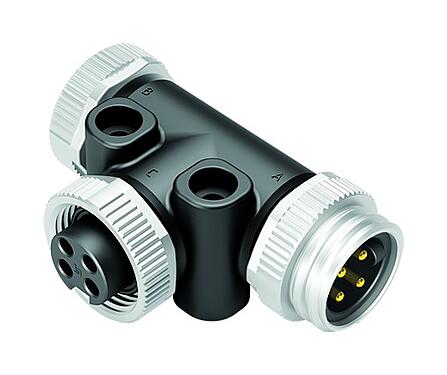

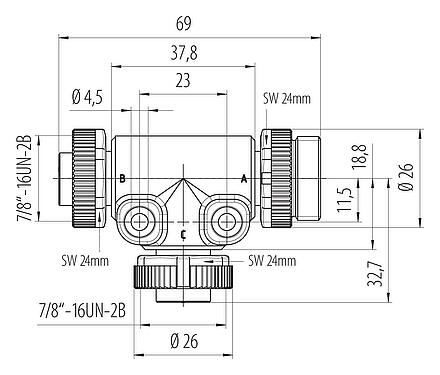

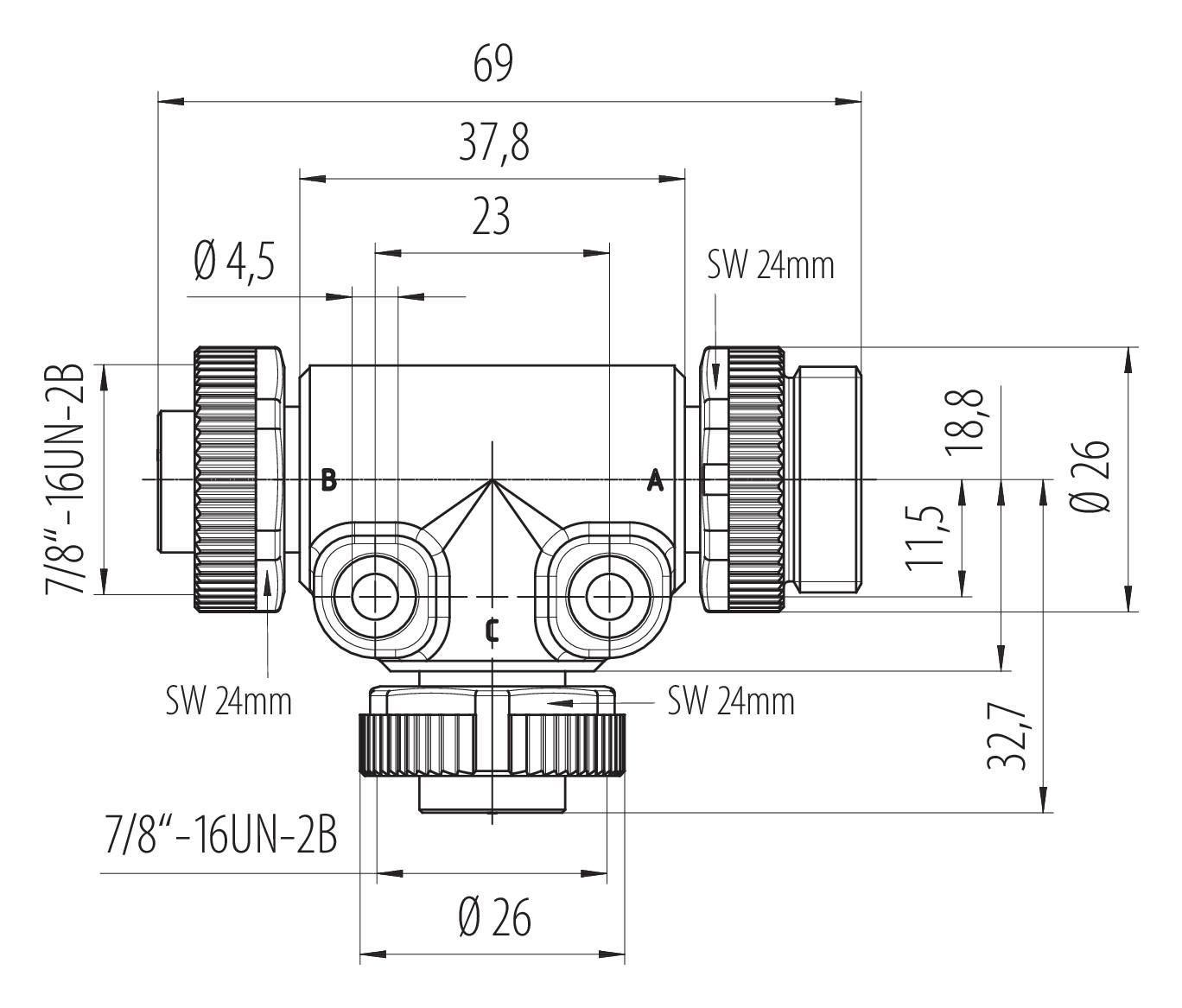

7/8" Twin distributor, Contacts: 4, unshielded, IP68
7/8", series 820/870, Automation Technology - Voltage and Power Supply
General features
Moreless| Part no. | 79 5474 100 04 |
| Connector design | Twin distributor |
| Version | T-Distributors |
| Connector locking system | screw |
| Degree of protection | IP68 |
| Temperature range from/to | -25 °C / 80 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 80.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 400 V |
| Rated impulse voltage | 4000 V |
| Rated current | 7.0 A |
| Insulation resistance | > 1010 Ω |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | I |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA |
| Contact body material | PUR |
| Contact material | CuSn (bronze) / CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | SCIP-number not available |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60529:1991 | 2014/35/EU;EN 60204-1:2018) |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
- To lock the cable connector to the device connector, we recommend tightening the threaded ring to 1.5 Nm. A suitable torque wrench is available as an accessory (order no. 07 0082 000).
