  2. Automation technology - Solenoid valve connectors
  3. Model A
  4. Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z10, with LED PNP, 5 m
Part no.: 31 5236 500 510

Female solenoid valve connector, Contacts: 2+2PE, unshielded, moulded on the cable, IP67, PUR, black, Circuit Z10, with LED PNP, 5 m

Size A, series 210, Automation Technology - Solenoid Valve Connectors
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
Downloads
General features
Moreless
Part no. 31 5236 500 510
Alternative part no.: 31 1313 500 510
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Female solenoid valve connector
Type standard DIN EN 175301-803
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Solenoid valve connector
Connector locking system Central bolt
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.75 mm² / AWG 18
Temperature range from/to -25 °C / 80 °C
Mechanical operation > 50 Mating cycles
Additional information Circuit Z10
with LED PNP
Weight (g) 300.00
Customs tariff number 85444290
Country of Origin CZ
Rated voltage 24 V
Rated impulse voltage 4000 V
Rated current 10.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 3
Overvoltage category III
Insulating material group I
EMC compliance unshielded

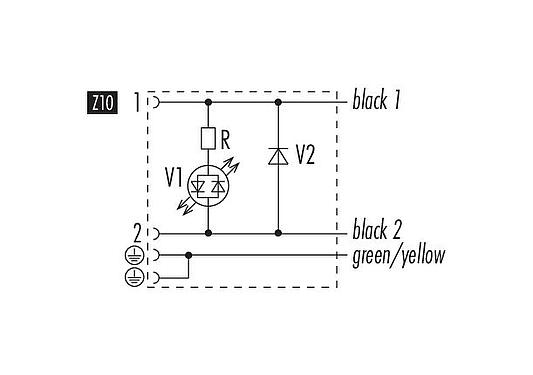

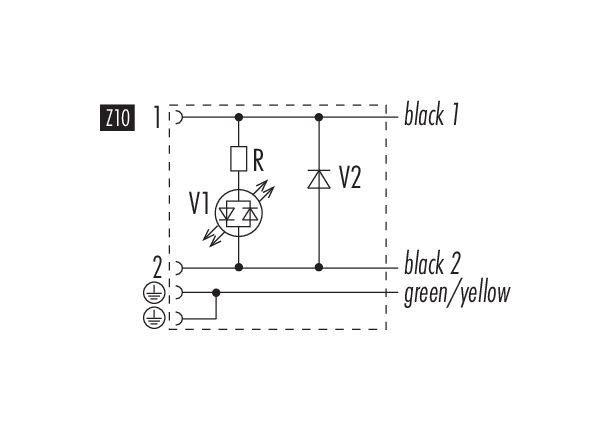

Wiring Z10
Housing material PBT
Contact body material PA
Contact material CuSn (bronze)
Contact plating Sn (tin)
REACH SVHC None (No pollutants)
SCIP number f138a0e3-90a4-4499-b813-b7e0e877de36
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 6.0 mm
Sheath material PUR
Single-lead structure 3 x 0.75 mm
Cable color black
Other features
Halogen free yes
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
