  4. Female panel mount connector, Contacts: 5, unshielded, solder, IP40
Part no.: 09 4916 025 05

Female panel mount connector, Contacts: 5, unshielded, solder, IP40

Push Pull, series 430

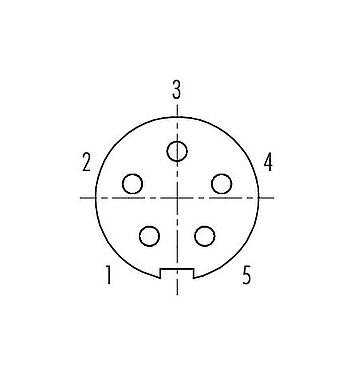

Available numbers of contacts
Compare product
General features
Part no. 09 4916 025 05
Connector design Female panel mount connector
Version Connector socket straight
Connector locking system Push-Pull
Termination solder
Degree of protection IP40
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.03
Customs tariff number 85369010
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current (40 °C) 3,0 A
Pollution degree 2
Overvoltage category I
Insulating material group II
EMC compliance unshielded
Contact body material PUR/PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 88c21f1b-5b7c-4b93-9357-6ef96e2cf0f9
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
