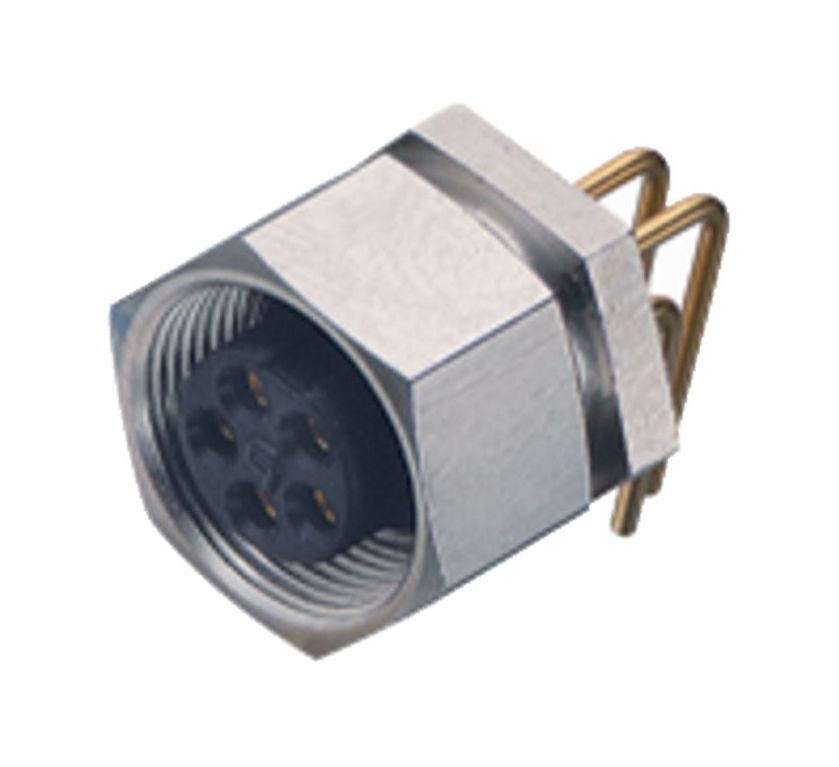

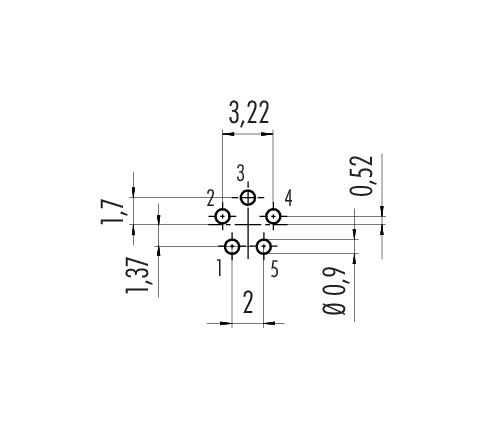

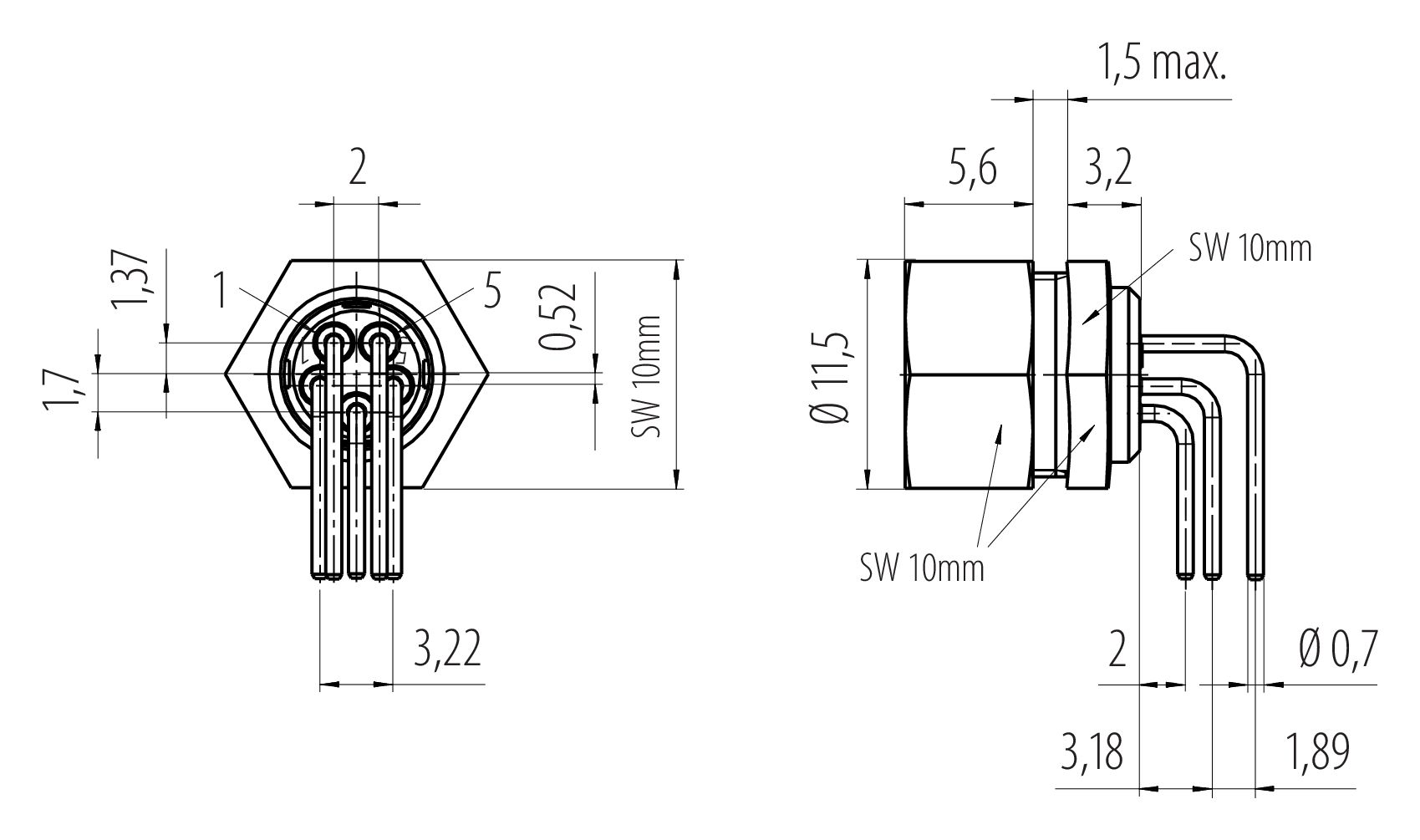

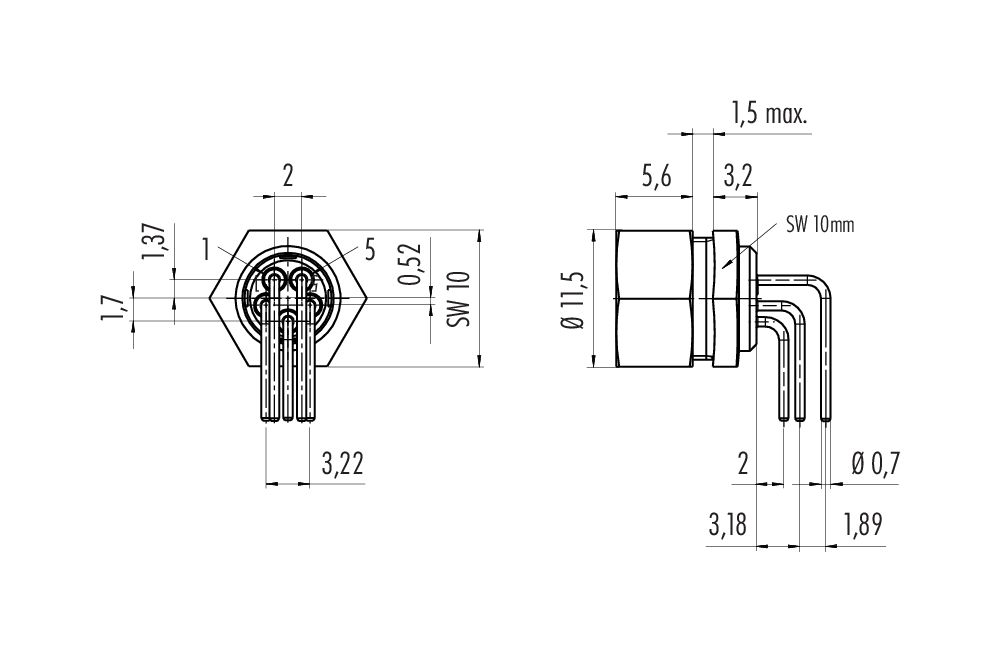

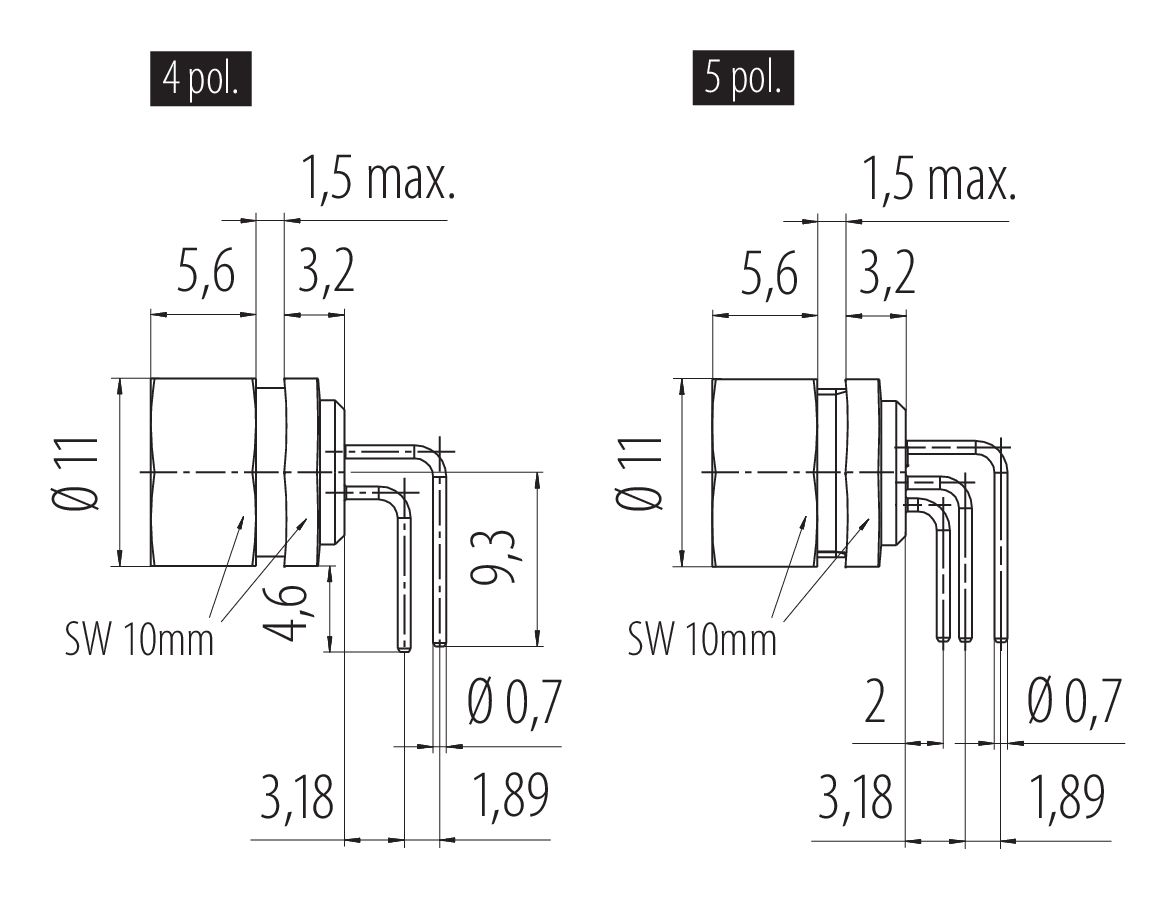

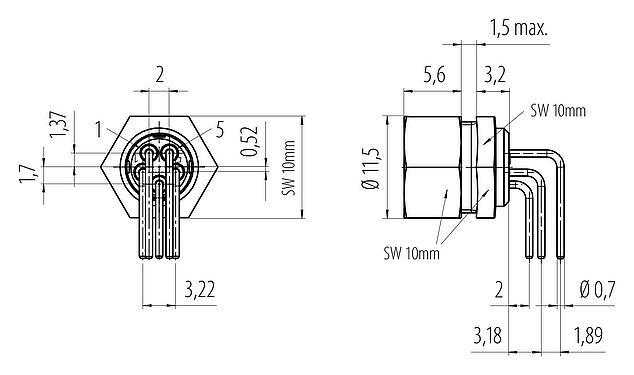

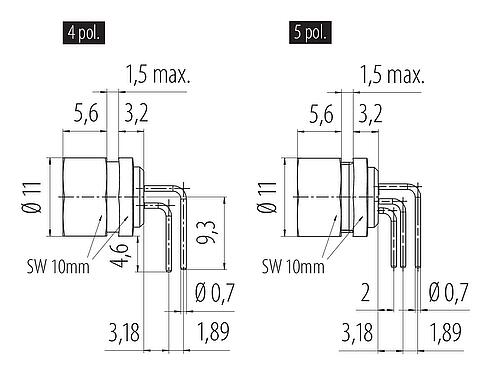

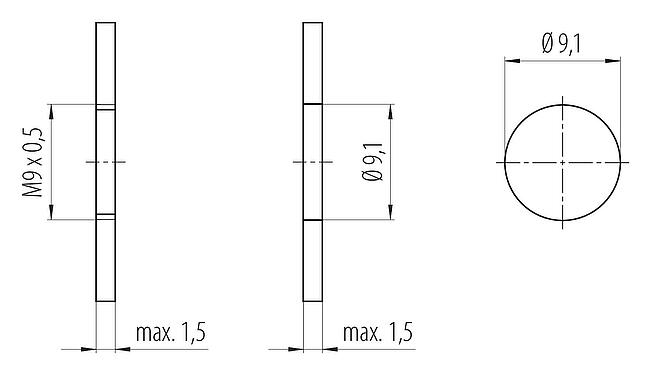

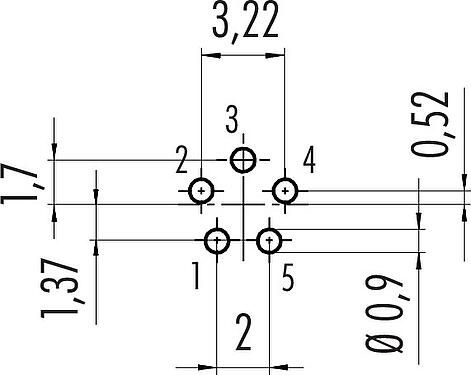

  4. M9 Female angled panel mount connector, Contacts: 5, unshielded, THT, IP40
Part no.: 09 0098 72 05

M9 Female angled panel mount connector, Contacts: 5, unshielded, THT, IP40

M9 IP40, series 711, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 09 0098 72 05
Connector design Female angled panel mount connector
Version Connector socket angled
Connector locking system screw
Termination THT
Degree of protection IP40
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 3.19
Customs tariff number 85369010
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 3,0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category II
Insulating material group III
EMC compliance unshielded
Contact body material PA (UL94 V-0)
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 2c78ce18-a4b1-4e1e-96cd-31340a9b523e
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
