  4. Snap-In 6-way distributor, Contacts: 3, unshielded, moulded on the cable, IP67, 3 x 0.75 mm²
Part no.: 72 9141 500 06

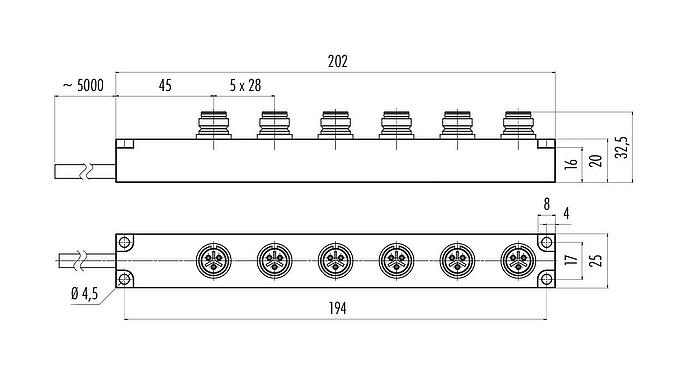

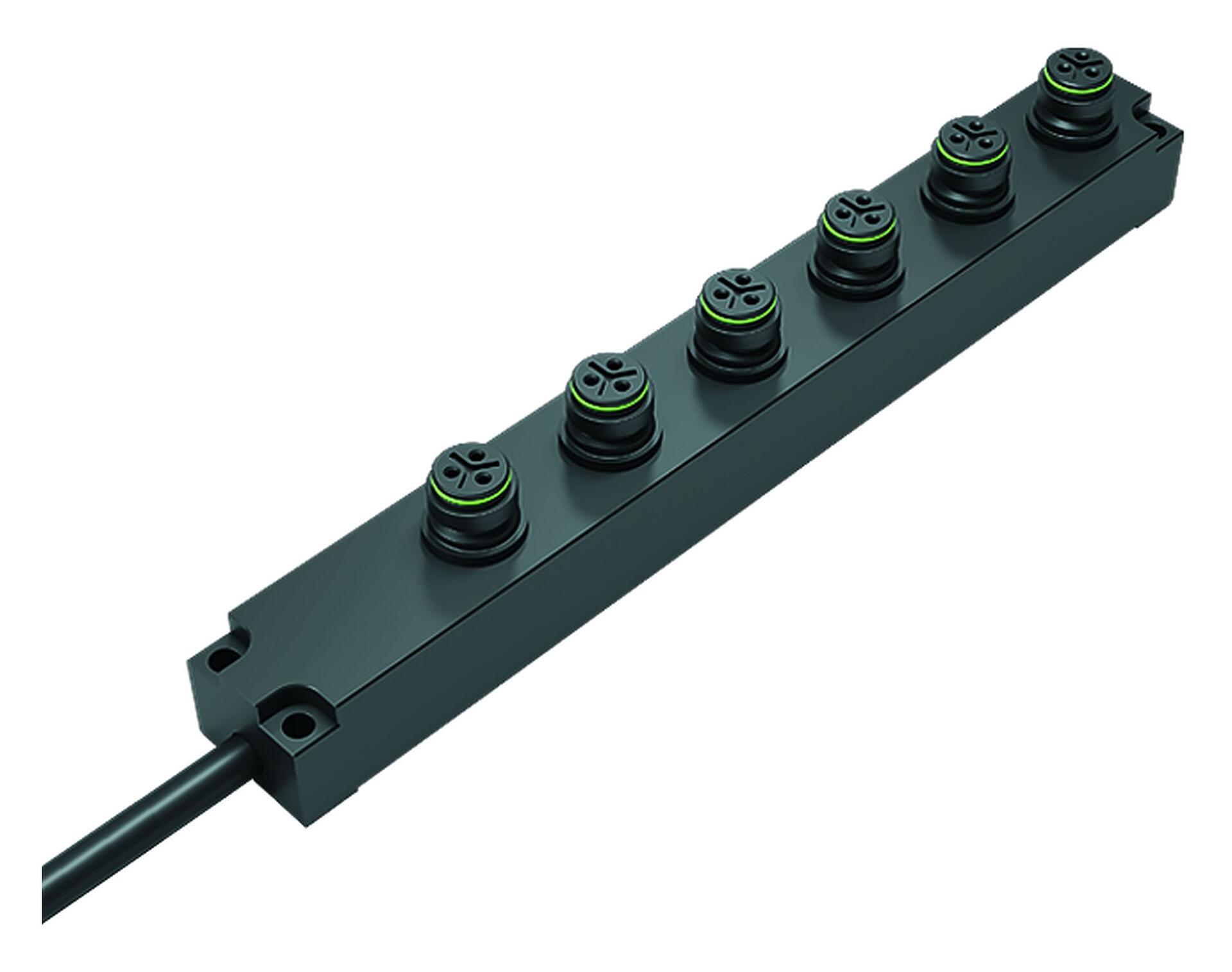

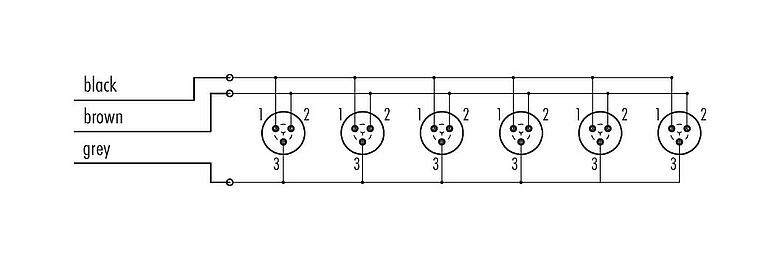

Snap-In 6-way distributor, Contacts: 3, unshielded, moulded on the cable, IP67, 3 x 0.75 mm²

Snap-In IP67, series 720, Miniature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 72 9141 500 06
Connector design 6-way distributor
Version Distribution Blocks
Connector locking system snap-in
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.75 mm²
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 489.46
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 2500 V
Rated current 7.0 A
Insulation resistance > 108 Ω
Pollution degree 2
Insulating material group II
EMC compliance unshielded
Housing material PA66 (UL94 HB)
Contact body material PA black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number a4ab4361-ef3f-4326-a0cf-d66c0b5cccc8
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
Cable data
Moreless
Structure of the cable
Cross section 3 x 0.75 mm²
