Part no.: 08 2433 000 001

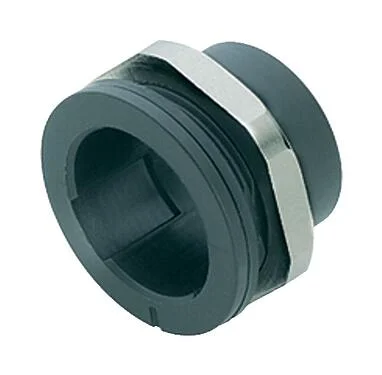

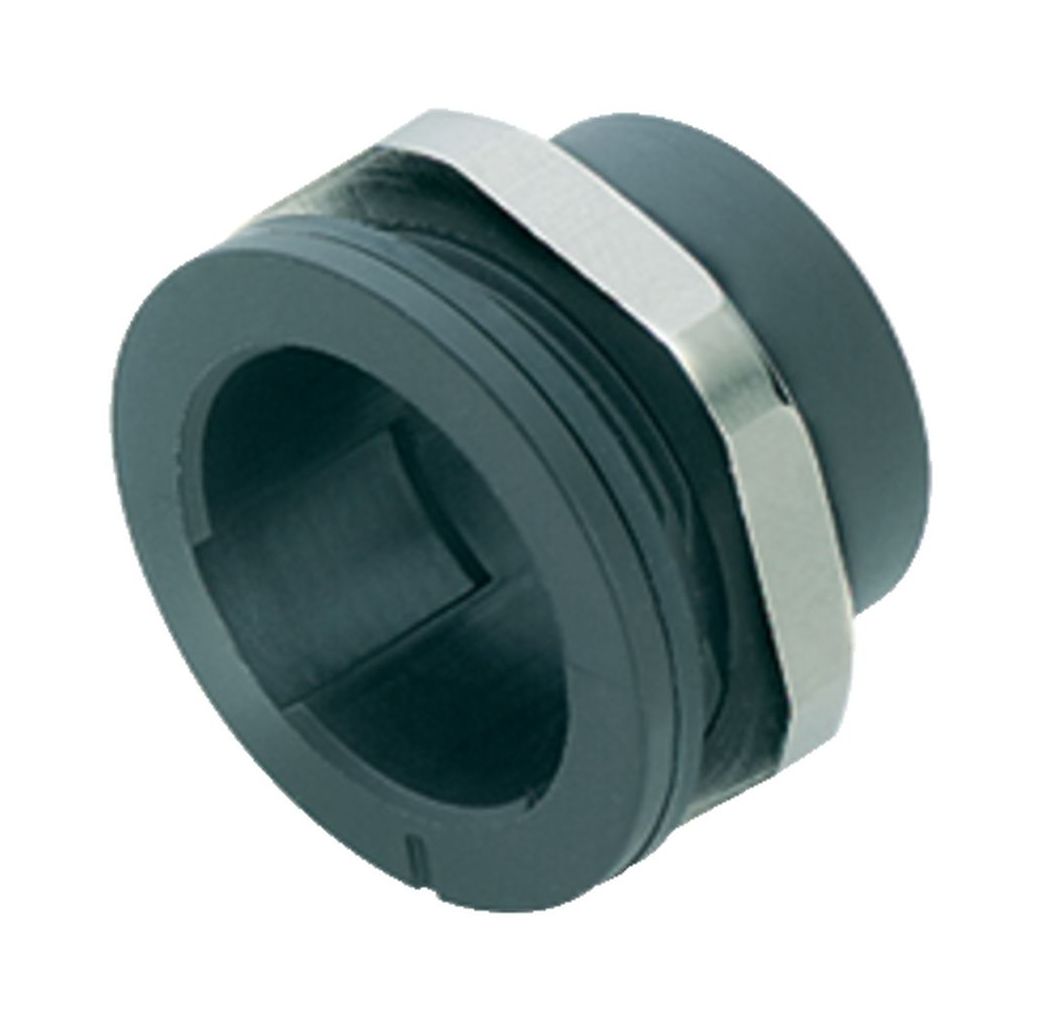

Snap-In Adapter, unshielded, VDE

Snap-In IP67, series 720, Miniature Connectors
Compare product
General features
Part no. 08 2433 000 001
Connector design Adapter
Version Adapter
Temperature range from/to -25 °C / 85 °C
Weight (g) 7.48
Customs tariff number 85366990
Country of Origin DE
Pollution degree 2
EMC compliance unshielded
Housing material PA
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number c0779a34-0b87-4637-ab95-fb90953dd199
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002638
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
