Push Pull Female cable connector, Contacts: 8, 4.0-8.0 mm, shieldable, solder, IP67

Illustration 99 4830 00 08 - Push Pull Female cable connector, Contacts: 8, 4.0-8.0 mm, shieldable, solder, IP67 — Illustration

Scale drawing 99 4830 00 08 - Push Pull Female cable connector, Contacts: 8, 4.0-8.0 mm, shieldable, solder, IP67 — Scale drawing

Assembly instructions 99 4830 00 08 - Push Pull Female cable connector, Contacts: 8, 4.0-8.0 mm, shieldable, solder, IP67 — Assembly instructions

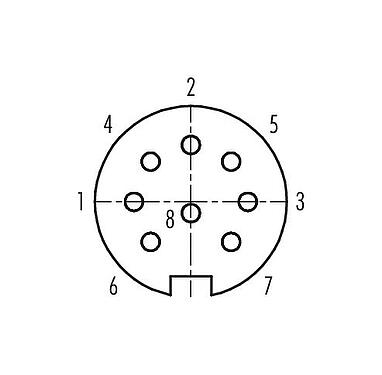

Contact arrangement (Plug-in side) 99 4830 00 08 - Push Pull Female cable connector, Contacts: 8, 4.0-8.0 mm, shieldable, solder, IP67 — Contact arrangement (Plug-in side)

Part no.	99 4830 00 08
Connector design	Female cable connector
Version	Connector socket straight
Connector locking system	Push-Pull
Termination	solder
Degree of protection	IP67
Connection cross-section	max. 0.75 mm² / AWG 18
Cable outlet	4.0-8.0 mm
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 1000 Mating cycles
Weight (g)	25.05
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	500 V
Rated current	5.0 A
Insulation resistance	≥ 10¹⁰ Ω
Pollution degree	1
Overvoltage category	I
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shield clamping

Housing material	PA GF 25
Contact body material	PBT (UL94 V-0)
Contact material	CuSn (bronze)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	0b2e90ed-1684-4c2d-a97b-b02ce269dcf5
PFAS present	yes

eCl@ss 11.1	27-44-01-02
ETIM 9.0	EC002635

Low Voltage Directive	2014/35/EU (EN 60529:1991 \| 2014/35/EU;EN 60204-1:2018)

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
