Part no.: 09 0473 782 08

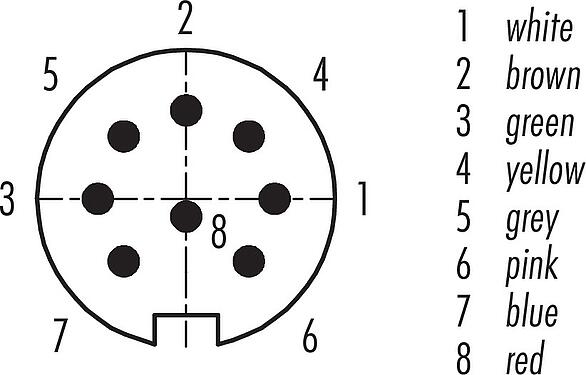

M16 IP40 Male panel mount connector, Contacts: 8 (08-a), unshielded, single wires, IP40
M16, series 680, Miniature Connectors
3D View(Click to activate)
General features
Moreless| Part no. | 09 0473 782 08 |
| Connector design | Male panel mount connector |
| Version | Connector pin straight |
| Connector locking system | screw |
| Termination | single wires |
| Degree of protection | IP40 |
| Cross-sectional area | AWG 22 |
| Temperature range from/to | -30 °C / 85 °C |
| Mechanical operation | > 500 Mating cycles |
| Weight (g) | 21.66 |
| Customs tariff number | 85369010 |
Electrical parameters
Moreless| Rated voltage | 100 V |
| Rated impulse voltage | 1200 V |
| Rated current (40 °C) | 5.0 A |
| Insulation resistance | ≥ 10¹⁰ Ω |
| Pollution degree | 1 |
| Overvoltage category | I |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Contact body material | PBT (UL94 V-0) |
| Contact material | CuSn (bronze) |
| Contact plating | Ag (silver) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | e82aaf54-c599-4678-a4c5-4218c897febc |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 7.0 | EC003569 |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
