  2. Miniature connectors
  3. M16 IP40

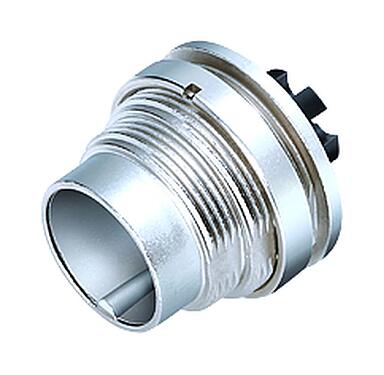

  4. M16 Male panel mount connector, Contacts: 6 (06-a), unshielded, crimping (Crimp contacts must be ordered separately), IP40, front fastened
Part no.: 09 0323 780 06

M16 Male panel mount connector, Contacts: 6 (06-a), unshielded, crimping (Crimp contacts must be ordered separately), IP40, front fastened

M16 IP40, series 680, Miniature Connectors
Compare product
Downloads
General features
Moreless
Part no. 09 0323 780 06
Connector design Male panel mount connector
Type standard DIN EN 61076-2-106
Version Connector pin straight
Connector locking system screw
Termination crimping (Crimp contacts must be ordered separately)
Degree of protection IP40
Cross-sectional area click here for more info
Temperature range from/to -40 °C / 85 °C
Mechanical operation > 500 Mating cycles
Weight (g) 10.48
Customs tariff number 85369010
Country of Origin DE
Rated voltage 250 V
Rated impulse voltage 1500 V
Rated current 5.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 1
Overvoltage category I
Insulating material group III
EMC compliance unshielded
Contact body material PBT (UL94 V-0)
Contact material depending on crimp contact (accessory)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 5f91bc9f-b10d-4e95-91e2-fcf11939c554
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
