Part no.: 09 0312 89 04

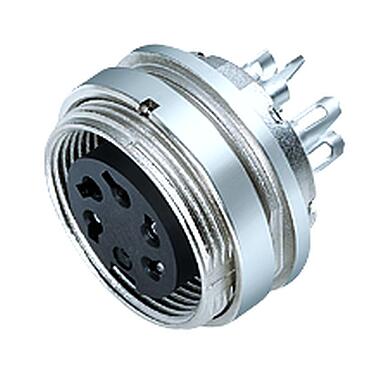

M16 IP40 Female panel mount connector, Contacts: 4 (04-a), unshielded, solder, IP40, front fastened
M16, series 680, Miniature Connectors
|Part no.||09 0312 89 04|
|Connector design||Female panel mount connector|
|Version||Connector socket straight|
|Connector locking system||screw|
|Degree of protection||IP40|
|Cross-sectional area||0.75 mm² / AWG 18|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||250 V|
|Rated impulse voltage||1500 V|
|Rated current (40 °C)||6.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||III|
|Housing material||Zinc die-cast nickel-plated|
|Contact body material||PBT (UL94 V-0)|
|Contact material||CuSn (bronze)|
|Contact plating||Au (gold)|
CAS 7439-92-1 (Lead)|
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
- The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
