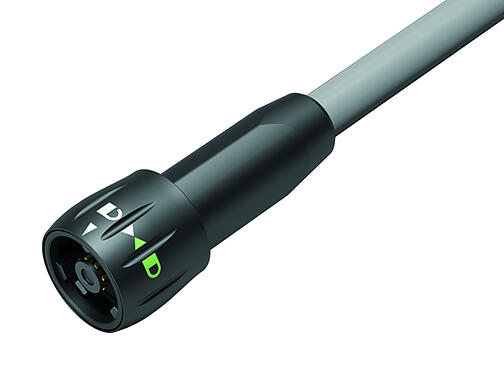

  4. Bayonet Male cable connector, Contacts: 8, unshielded, solder, IP67, PVC, grey, 8 x 0.25 mm², 5 m
Part no.: 77 6005 0000 20008-0500

Bayonet Male cable connector, Contacts: 8, unshielded, solder, IP67, PVC, grey, 8 x 0.25 mm², 5 m

Bayonet NCC, series 770, Miniature Connectors
(Standard 2 m and 5 m. Other lengths are available on request.)
Compare product
General features
Part no. 77 6005 0000 20008-0500
Connector design Male cable connector
Cable length 5 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector pin straight
Connector locking system Bayonet
Termination solder
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 5000 Mating cycles
Weight (g) 121.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 175 V
Rated impulse voltage 1750 V
Rated current 2.0 A
Insulation resistance ≥ 1010 Ω
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PUR
Contact body material PA
Contact material CuZn (brass)
Contact plating Au (gold)
Locking material PA
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 0f5a7a6b-06af-4024-8fc4-a4bd06b7b9ac
ETIM 9.0 EC002638
Cable data
Structure of the cable
Cable diameter 6.0 mm
Cross section 8 x 0.25 mm²
Sheath material PVC
Single-lead insulation PVC
Single-lead structure 32 x 0.10 mm
Cable color grey
Electrical properties
Cable Insulation resistance > 200 Ω/Km
Operating voltage ≤ 300 V
Conductor resistance 79 Ω/Km (20°C)
Mechanical properties
Bending radius, fixed cable ≥ 5 x Ø
Bending radius, moving cable ≥ 10 x Ø
Bending cycles > 2 million
Permitted acceleration max. 5 m/s² + 1 m/s²
Travel distance, horizontal at 5 m/s² -> 5 m
Travel distance, vertical at 5 m/s² -> 2 m
Travel speed at 5 m horizontal path -> 200 m/min
Thermal properties
Temperature range cable in move from/to -5 °C / 105 °C
Temperature range cable fixed from/to -40 °C / 105 °C
Other features
Halogen free no
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
