Part no.: 86 1031 1100 00005

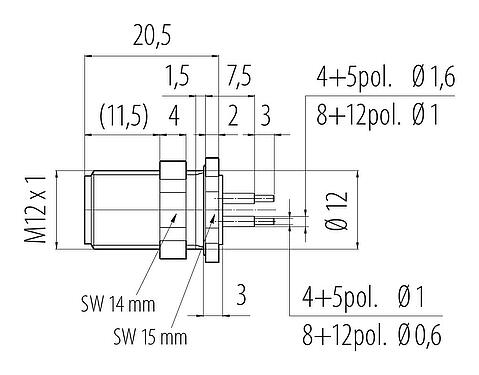

M12 Male panel mount connector, Contacts: 5, unshielded, THT, IP68, UL, M12x1.0, front fastened
M12-A, series 763, Automation Technology - Sensors and Actuators
86 1031 1100 00005
Alternative part no.: 09 3441 550 05
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.More
|Connector design||Male panel mount connector|
|Type standard||DIN EN 61076-2-101|
|Version||Connector pin straight|
|Connector locking system||screw|
|Degree of protection||IP68|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 100 Mating cycles|
|Customs tariff number||85369010|
|Country of Origin||DE|
|Rated voltage||60 V|
|Rated impulse voltage||1500 V|
|Rated current||4 A (3 A UL)|
|Insulation resistance||> 10⁸ Ω|
|Insulating material group||III|
|Housing material||Zinc die-cast nickel-plated|
|Contact body material||PA black|
|Contact material||CuZn (brass)|
|Contact plating||Au (gold)|
CAS 7439-92-1 (Lead)|
