M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0

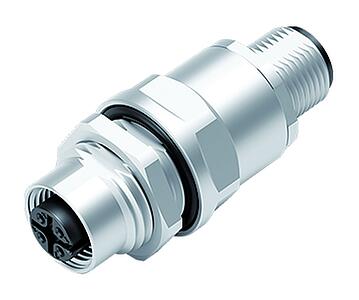

Illustration 09 5241 00 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0 — Illustration

3D View 09 5241 00 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0 — 3D View

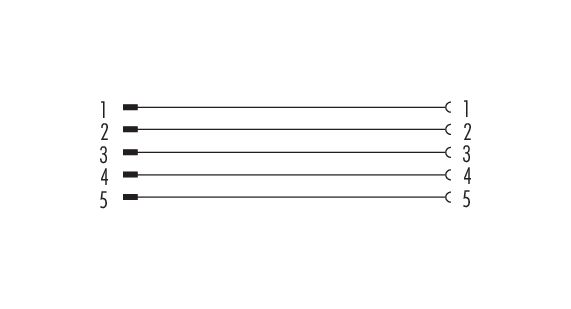

Pin assignment plans 09 5241 00 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0 — Pin assignment plans

Scale drawing 09 5241 00 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0 — Scale drawing

Assembly instructions / Panel cut-out 09 5241 00 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0 — Assembly instructions / Panel cut-out

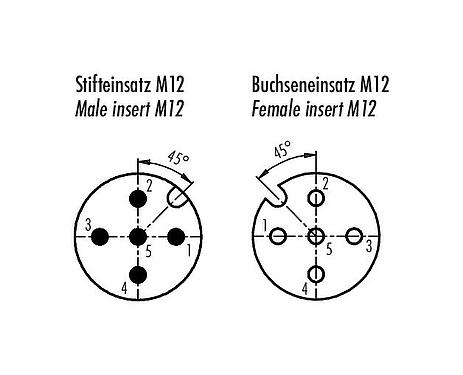

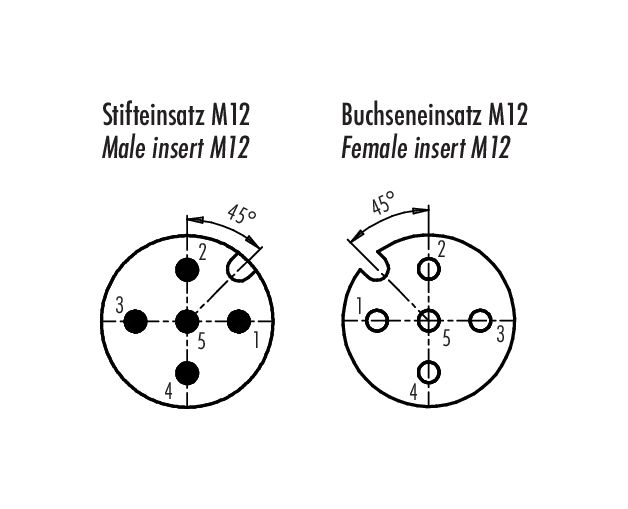

Contact arrangement (Plug-in side) 09 5241 00 05 - M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, M12x1.0 — Contact arrangement (Plug-in side)

There is a newer version of this article

Direct comparison old/new version

Automation Technology - Sensors and Actuators--Lead-through for control cabinet_763_2_SSDF_DS5pol

09 5241 10 05

M12 Lead-through for control cabinet, Contacts: 5, shielded, pluggable, IP67, UL 2238, M12x1.0

Automation Technology - Sensors and Actuators

Part no.	09 5241 00 05
Connector design	Lead-through for control cabinet
Version	Lead-through for control cabinets
Connector locking system	screw
Termination	pluggable
Degree of protection	IP67
Temperature range from/to	-25 °C / 85 °C
Mechanical operation	> 100 Mating cycles
Weight (g)	63.19
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	60 V
Rated impulse voltage	1500 V
Rated current	4.0 A
Pollution degree	3
Overvoltage category	II
Insulating material group	II
EMC compliance	shielded
Shield connection	Shield on the housing

Contact body material	PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
Locking material	Zinc die-cast nickel-plated
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	1f428ce1-5c14-4649-97ef-1ff6167df283

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Low Voltage Directive	2014/35/EU (EN 60204-1:2018 \| 2011/65/EU;EN 50581:2012 \| 2014/35/EU;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)
