Part no.: 79 5232 90 04

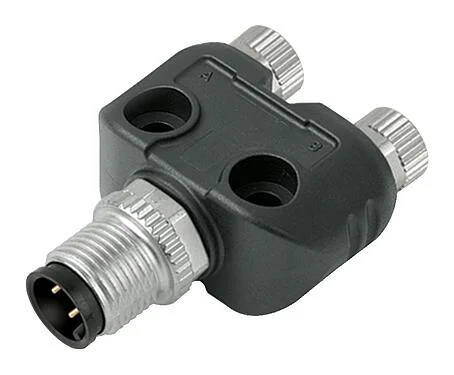

M8/M12 Twin distributors Y-distributor, male connector - 2 female connector, Contacts: 4/3, unshielded, pluggable, IP68, UL 2238
series 765, Automation Technology - Sensors and Actuators
3D View(Click to activate)
General features
Moreless| Part no. | 79 5232 90 04 |
| Connector design | Twin distributors Y-distributor, male connector - 2 female connector |
| Type standard |
DIN EN 61076-2-104 DIN EN 61076-2-101 |
| Version | Twin distributors |
| Connector locking system | screw |
| Termination | pluggable |
| Degree of protection | IP68 |
| Temperature range from/to | -25 °C / 80 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 23.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 30 V |
| Rated impulse voltage | 800 V |
| Rated current | 4.0 A |
| Pollution degree | 3 |
| Overvoltage category | II |
| Insulating material group | II |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PUR |
| Contact body material | PUR |
| Contact material | CuZn (brass) / CuSn (bronze) |
| Contact plating | Au (gold) |
| Locking material | Zinc die-cast nickel-plated |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | a1fa1cfe-6c73-4cc9-afb4-bdf7353ac193 |
Authorization/approvals
Moreless| Approvals | UL 2238 |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Declarations of conformity
Moreless| Low Voltage Directive | 2011/65/EU (EN 50581:2012) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
