  2. Subminiature connectors
  3. Snap-in IP67
  4. Snap-In Female cable connector, Contacts: 4, unshielded, moulded on the cable, IP67, PUR, black, 4 x 0.25 mm², 2 m
Part no.: 77 7406 0000 50004-0200

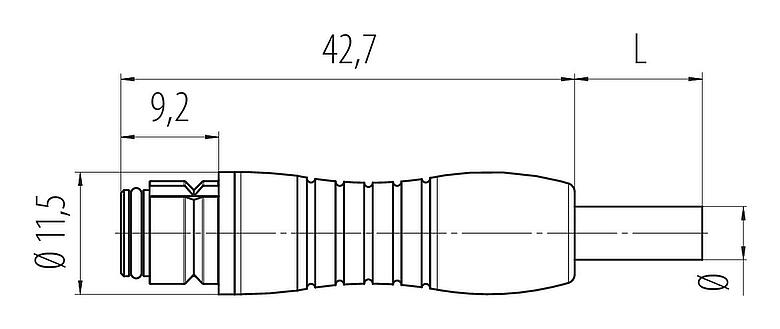

Snap-In Female cable connector, Contacts: 4, unshielded, moulded on the cable, IP67, PUR, black, 4 x 0.25 mm², 2 m

Snap-In IP67, series 620, Subminiature Connectors
Available numbers of contacts
Compare product
Downloads
General features
Moreless
Part no. 77 7406 0000 50004-0200
Alternative part no.: 79 9242 020 04
Notice
Please note that, due to the change from the old to the new order number, there may be deviations in the technical specifications. For questions about product details, please use the ‘Contact Customer Service’ form on the right.
More
Connector design Female cable connector
Cable length 2 m (Standard 2 m and 5 m. Other lengths are available on request.)
Version Connector socket straight
Connector locking system snap-in
Termination moulded on the cable
Degree of protection IP67
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 70 °C
Mechanical operation > 500 Mating cycles
Weight (g) 59.00
Customs tariff number 85444290
Country of Origin DE
Rated voltage 125 V
Rated impulse voltage 1500 V
Rated current 2.5 A
Insulation resistance ≤ 3 mΩ
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PUR
Contact body material PA (UL94 V-0) black
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 10e2cb4b-fd24-4554-8a82-d036624b3491
eCl@ss 11.1 27-06-03-11
ETIM 9.0 EC002638
Low Voltage Directive 2014/35/EU (EN 60204-1:2018;EN 60529:1991)
RoHS Directive 2011/65/EU (EN 50581:2012)
Cable data
Moreless
Structure of the cable
Cable diameter 4.5 mm
Cross section 4 x 0.25 mm²
Sheath material PUR
Single-lead insulation PP
Single-lead structure 32 x 0.10 mm
Cable color black
Mechanical properties
Bending radius, fixed cable 5 x Ø
Bending radius, moving cable 10 x Ø
Bending cycles > 2 million
Permitted acceleration 5 m/s²
Travel speed 195+5 m/min
Thermal properties
Temperature range cable in move from/to -25 °C / 90 °C
Temperature range cable fixed from/to -40 °C / 90 °C
Other features
Halogen free yes
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  6. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  7. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
