Part no.: 08 2629 000 001

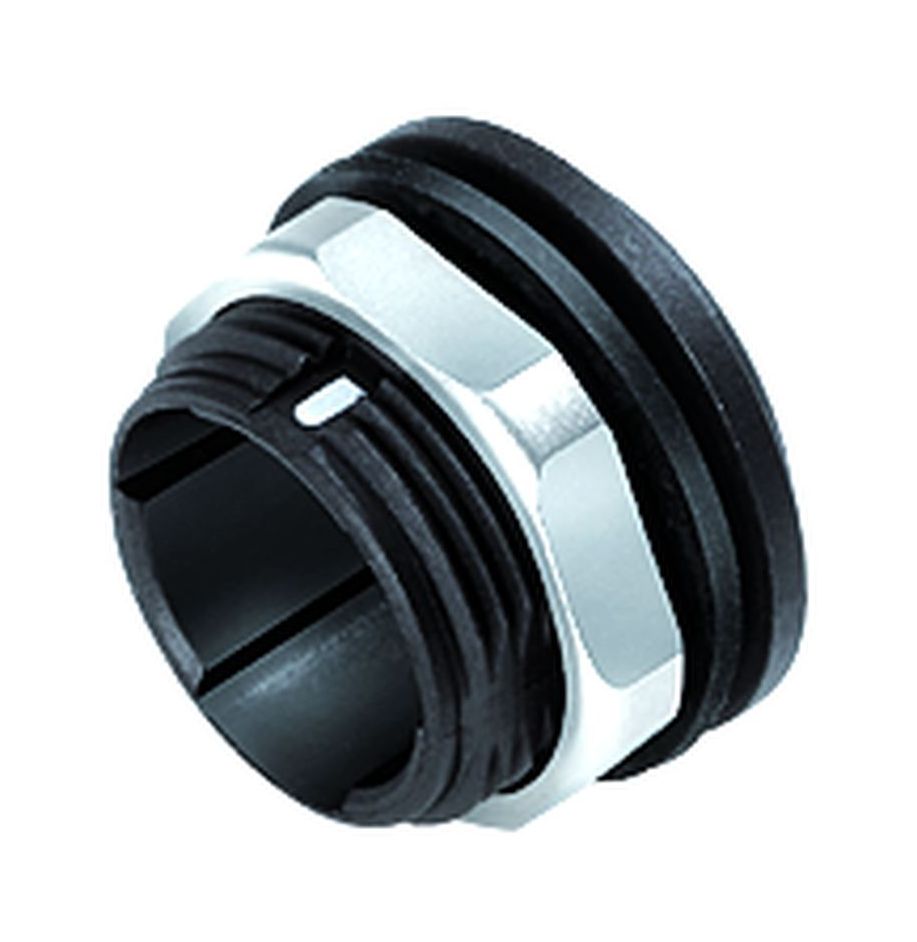

Snap-In Adapter, unshielded, screwable from the front

Snap-In IP67, series 620, Subminiature Connectors
Compare product
General features
Part no. 08 2629 000 001
Connector design Adapter
Version Adapter
Additional information screwable from the front
Weight (g) 4.02
Customs tariff number 85366990
Country of Origin DE
Pollution degree 2
EMC compliance unshielded
Contact body material PA (UL94 V-0)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number afa3e37b-2646-4be0-8d97-706c022b4b3b
eCl@ss 11.1 27-44-02-08
ETIM 9.0 EC002638
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
