Part no.: 77 7095 0000 10005-0500
Snap-In Male cable connector, Contacts: 5, unshielded, moulded on the cable, IP40, PVC, black, 5 x 0.25 mm², 5 m
Snap-In IP40, series 709, Subminiature Connectors
3D View(Click to activate)

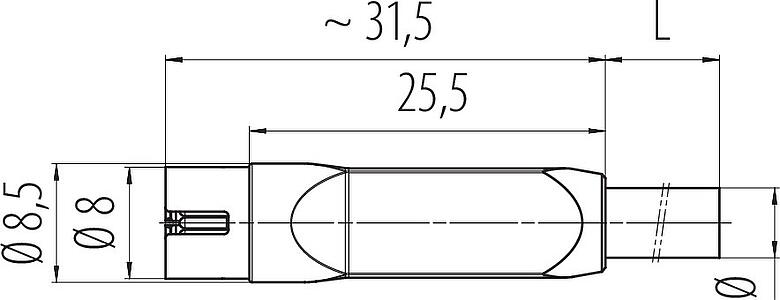

General features
Moreless| Part no. |
77 7095 0000 10005-0500
Alternative part no.: 79 9005 15 05
|
| Connector design | Male cable connector |
| Cable length | 5 m (Standard 2 m and 5 m. Other lengths are available on request.) |
| Version | Connector pin straight |
| Connector locking system | snap-in |
| Termination | moulded on the cable |
| Degree of protection | IP40 |
| Cross-sectional area | 0.25 mm² / AWG 24 |
| Temperature range from/to | -25 °C / 70 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 80.00 |
| Customs tariff number | 85444290 |
| Country of Origin | DE |
Electrical parameters
Moreless| Rated voltage | 60 V |
| Rated impulse voltage | 800 V |
| Rated current | 3,0 A |
| Insulation resistance | ≥ 1010 Ω |
| Pollution degree | 1 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PUR |
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 04591b44-755e-4b2a-bff6-1c476b808576 |
Classifications
Moreless| eCl@ss 11.1 | 27-06-03-11 |
| ETIM 9.0 | EC002638 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
| RoHS Directive | 2011/65/EU (EN 50581:2012) |
Cable data
Moreless| Structure of the cable | |
| Cable diameter | 5.0 mm |
| Cross section | 5 x 0.25 mm² |
| Sheath material | PVC |
| Single-lead insulation | PVC |
| Single-lead structure | 14 x 0.15 mm |
| Cable color | black |
| Electrical properties | |
| Conductor resistance | 79.9 Ω/Km (20°C) |
| Mechanical properties | |
| Bending radius, fixed cable | 5 x Ø |
| Bending radius, moving cable | 10 x Ø |
| Thermal properties | |
| Temperature range cable in move from/to | -5 °C / 70 °C |
| Temperature range cable fixed from/to | -25 °C / 70 °C |
| Other features | |
| Halogen free | no |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
