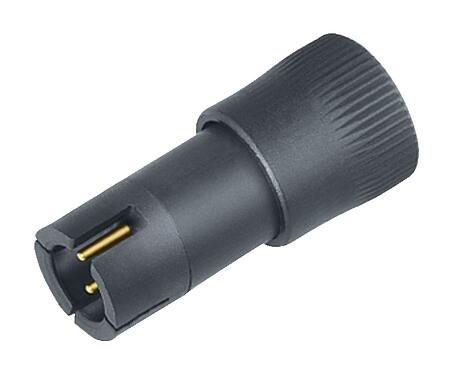

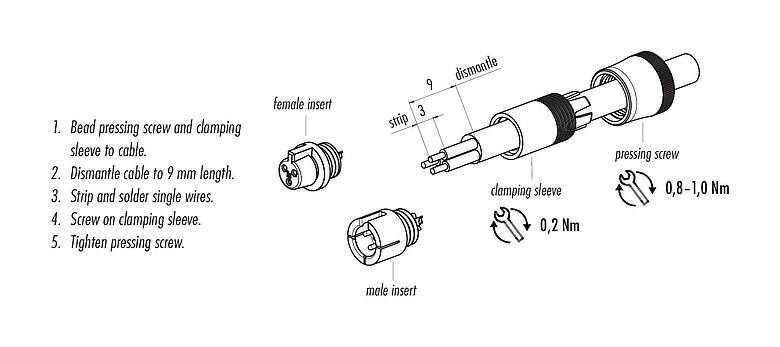

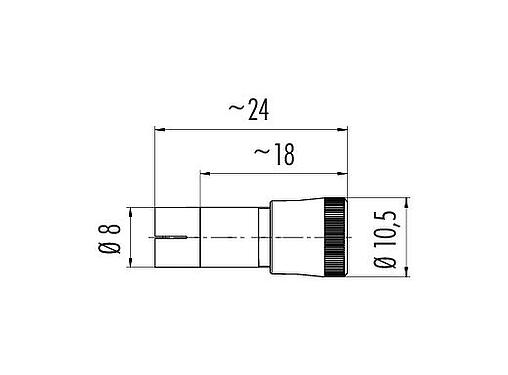

Part no.: 09 9747 71 03
Snap-In IP40 Male cable connector, Contacts: 3, 4.0-5.0 mm, unshielded, solder, IP40
Snap-In, series 719, Subminiature Connectors
3D View(Click to activate)
General features
Moreless| Part no. | 09 9747 71 03 |
| Connector design | Male cable connector |
| Version | Connector pin straight |
| Connector locking system | snap-in |
| Termination | solder |
| Degree of protection | IP40 |
| Cross-sectional area | 0.25 mm² / AWG 24 |
| Cable outlet | 4.0-5.0 mm |
| Temperature range from/to | -25 °C / 70 °C |
| Mechanical operation | > 100 Mating cycles |
| Weight (g) | 1.17 |
| Customs tariff number | 85369010 |
Electrical parameters
Moreless| Rated voltage | 60 V |
| Rated impulse voltage | 800 V |
| Rated current (40 °C) | 3,0 A |
| Insulation resistance | ≥ 10¹⁰ Ω |
| Pollution degree | 1 |
| Overvoltage category | II |
| Insulating material group | III |
| EMC compliance | unshielded |
Material
Moreless| Housing material | PA |
| Contact body material | PA |
| Contact material | CuZn (brass) |
| Contact plating | Au (gold) |
| REACH SVHC |
CAS 7439-92-1 (Lead) |
| SCIP number | 3da57232-c1ed-43b7-a9de-8c55cc237282 |
Classifications
Moreless| eCl@ss 11.1 | 27-44-01-09 |
| ETIM 9.0 | EC003569 |
Declarations of conformity
Moreless| Low Voltage Directive | 2014/35/EU (EN 60204-1:2018;EN 60529:1991) |
Security notices
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
