Part no.: 99 0421 70 07

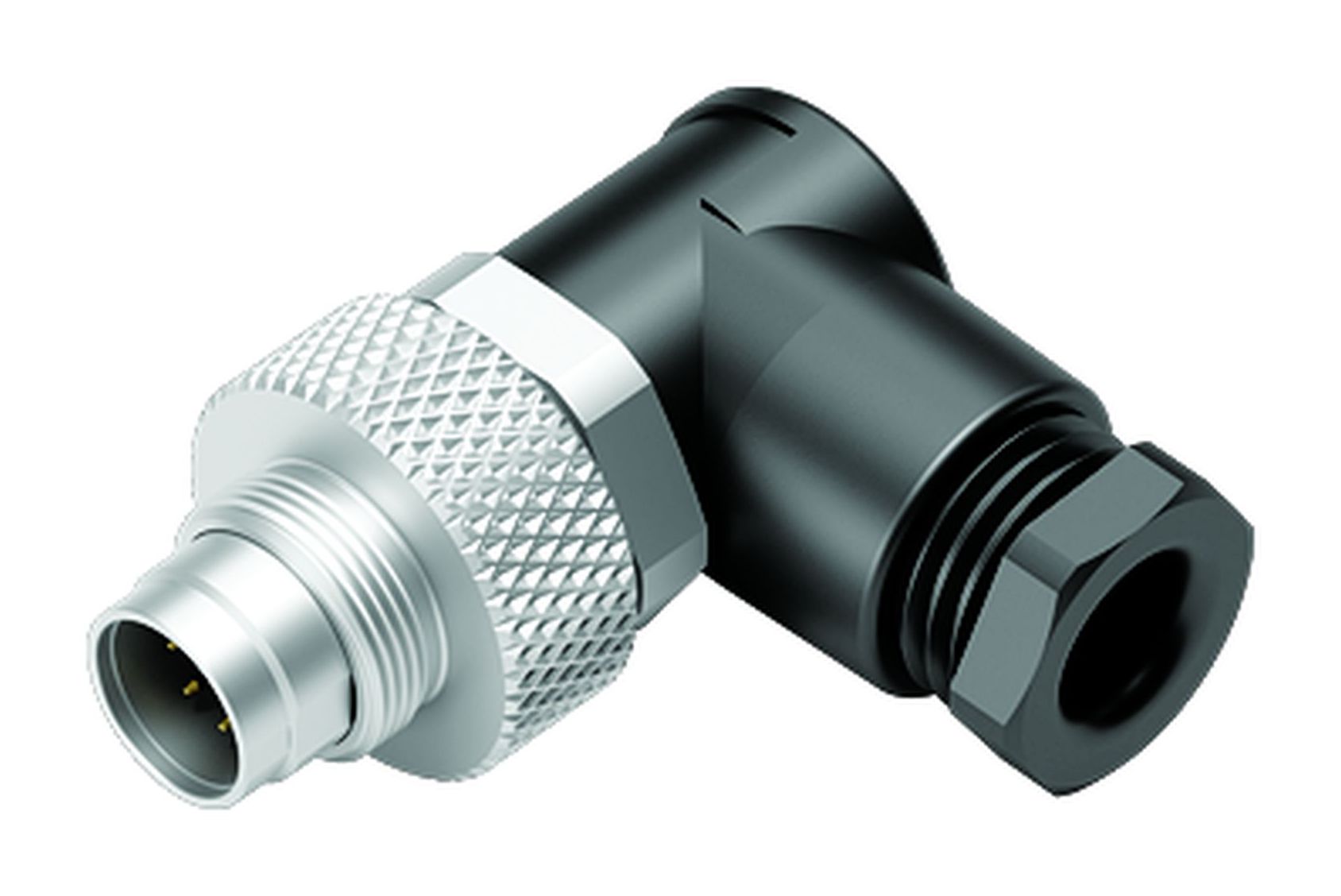

M9 IP67 Male angled connector, Contacts: 7, 3.5-5.0 mm, unshielded, solder, IP67
M9, series 712, Subminiature Connectors
|Part no.||99 0421 70 07|
|Connector design||Male angled connector|
|Version||Connector pin angled|
|Connector locking system||screw|
|Degree of protection||IP67|
|Cross-sectional area||max. 0.14 mm² / AWG 26|
|Cable outlet||3.5-5.0 mm|
|Twistability||180° (2 coding options)|
|Temperature range from/to||-40 °C / 85 °C|
|Mechanical operation||> 500 Mating cycles|
|Customs tariff number||85369010|
|Rated voltage||125 V|
|Rated impulse voltage||1500 V|
|Rated current (40 °C)||1.0 A|
|Insulation resistance||≥ 10¹⁰ Ω|
|Insulating material group||III|
|Housing material||PA/CuZn (Nickel-plated brass)|
|Contact body material||PBT (UL94 V-0)|
|Contact material||CuZn (brass)|
|Contact plating||Au (gold)|
|Locking material||CuZn (brass)|
CAS 7439-92-1 (Lead)|
Declarations of conformityMoreless
|Low Voltage Directive||2014/35/EU (EN 60204-1:2018;EN 60529:1991)|
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
- To lock the cable connector with the device connector, the threaded ring is tightened "hand-tight" (approx. 50 cNm).
