M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting

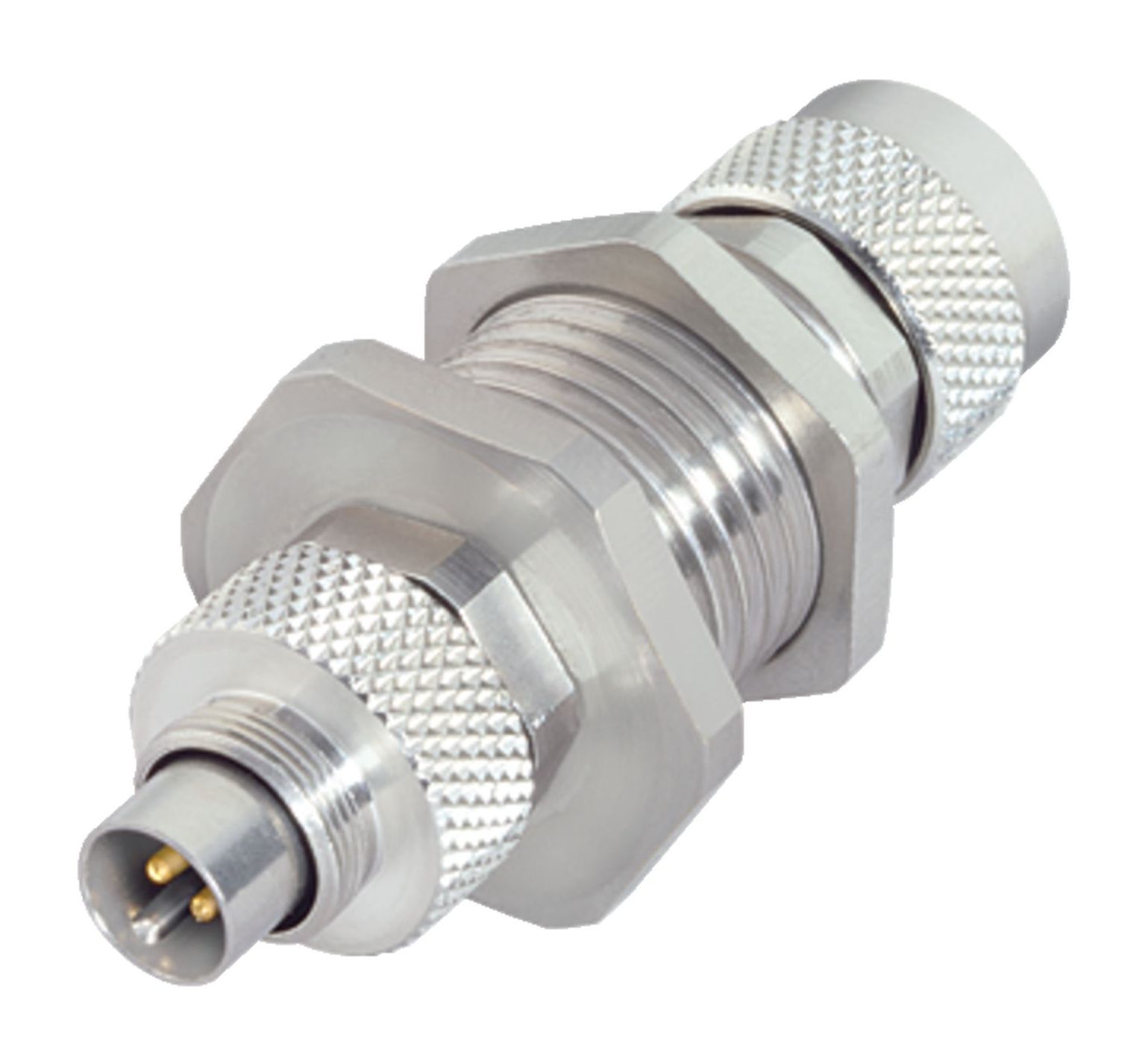

Illustration M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting — Illustration

3D View M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting — 3D View

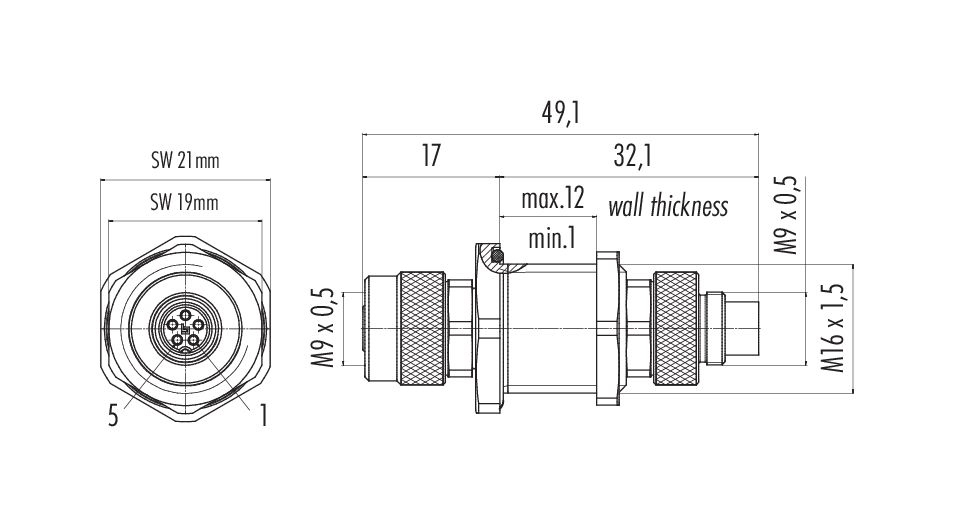

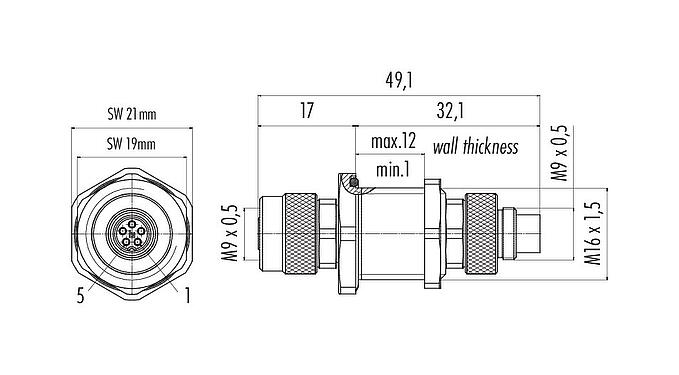

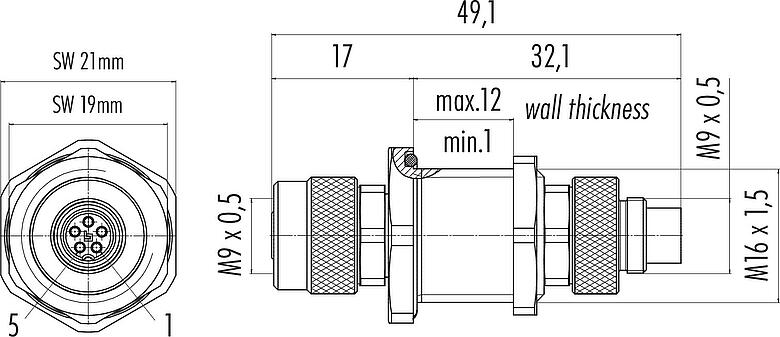

Scale drawing M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting — Scale drawing

Assembly instructions / Panel cut-out M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting — Assembly instructions / Panel cut-out

Contact arrangement (Plug-in side) M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting — Contact arrangement (Plug-in side)

Mounting orientation M9 Lead-through for control cabinet, Contacts: 5, shieldable, pluggable, IP67, Rear mounting — Mounting orientation

Part no.	09 9618 100 05
Connector design	Lead-through for control cabinet
Version	Lead-through for control cabinets
Connector locking system	screw
Termination	pluggable
Degree of protection	IP67
Temperature range from/to	-40 °C / 85 °C
Mechanical operation	> 500 Mating cycles
Weight (g)	43.43
Customs tariff number	85369010
Country of Origin	DE

Rated voltage	125 V
Rated impulse voltage	1500 V
Rated current	3,0 A
Insulation resistance	≥ 10⁸ Ω
Pollution degree	1
Overvoltage category	II
Insulating material group	III
EMC compliance	shieldable
Shield connection	Shielding ring

Housing material	CuZn (Brass nickel plated)
Contact body material	PBT/PA
Contact material	CuZn (brass)
Contact plating	Au (gold)
REACH SVHC	CAS 7439-92-1 (Lead)
SCIP number	6eab736a-a2a9-40b0-86bf-e24aad960fe7

eCl@ss 11.1	27-44-01-09
ETIM 9.0	EC003569

Low Voltage Directive	2014/35/EU (EN 60204-1:2018 \| 2011/65/EU;EN 50581:2012 \| 2014/35/EU;EN 60529:1991)
RoHS Directive	2011/65/EU (EN 50581:2012)

Report error on this page

Security notices

The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
