Part no.: 09 0423 90 07

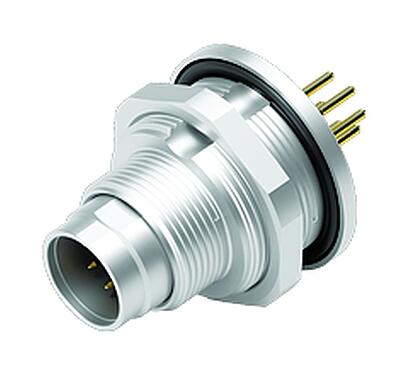

M9 Male panel mount connector, Contacts: 7, unshielded, THT, IP67, front fastened
M9 IP67, series 712, Subminiature Connectors
General features
MorelessPart no. | 09 0423 90 07 |
Connector design | Male panel mount connector |
Version | Connector pin straight |
Connector locking system | screw |
Termination | THT |
Degree of protection | IP67 |
Temperature range from/to | -40 °C / 85 °C |
Mechanical operation | > 500 Mating cycles |
Weight (g) | 6.00 |
Customs tariff number | 85369010 |
Country of Origin | DE |
Electrical parameters
MorelessRated voltage | 125 V |
Rated impulse voltage | 1500 V |
Rated current | 1.0 A |
Insulation resistance | ≥ 1010 Ω |
Pollution degree | 1 |
Overvoltage category | II |
Insulating material group | III |
EMC compliance | unshielded |
Material
MorelessContact body material | PA (UL94 V-0) |
Contact material | CuZn (brass) |
Contact plating | Au (gold) |
REACH SVHC |
CAS 7439-92-1 (Lead) |
SCIP number | 2d9a794b-1085-4b7d-84fc-af5073b9f3d3 |
Classifications
MorelesseCl@ss 11.1 | 27-44-01-09 |
ETIM 9.0 | EC003569 |
Security notices
- The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
- The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
- Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
