  4. Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged, front fastened
Part no.: 09 0762 180 05

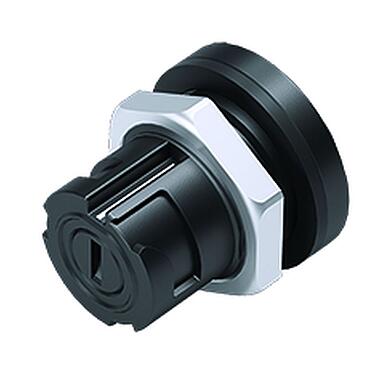

Bayonet NCC Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged, front fastened

Bayonet, series 670, Subminiature Connectors
Compare product
General features
Part no. 09 0762 180 05
Connector design Female panel mount connector
Version Connector pin straight
Connector locking system Bayonet
Termination solder
Degree of protection IP54 unplugged
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 3.90
Customs tariff number 85369010
Rated voltage 50 V
Rated impulse voltage 500 V
Rated current (40 °C) 2.0 A
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 056d8bfb-c51a-486a-9a6b-229c03f426ce
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569

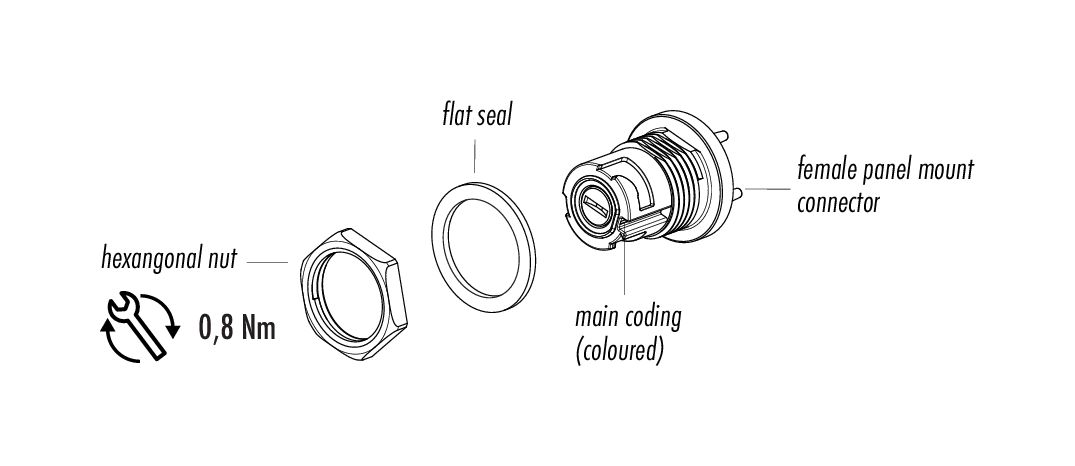

Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. To protect against unintentional opening of the connector, the thread between the housing and the connector head must be secured with a suitable cyanoacrylate adhesive when used in circuits with voltages dangerous to the touch. This does not apply to connectors used in SELV and PELV circuits according to IEC 61140 (EN 61140, VDE 0140-1).
  4. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".

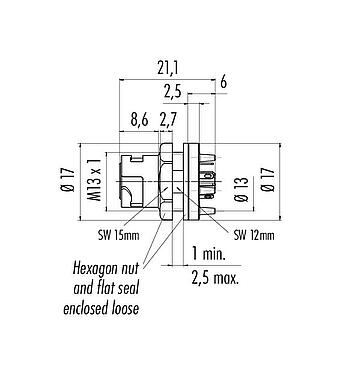

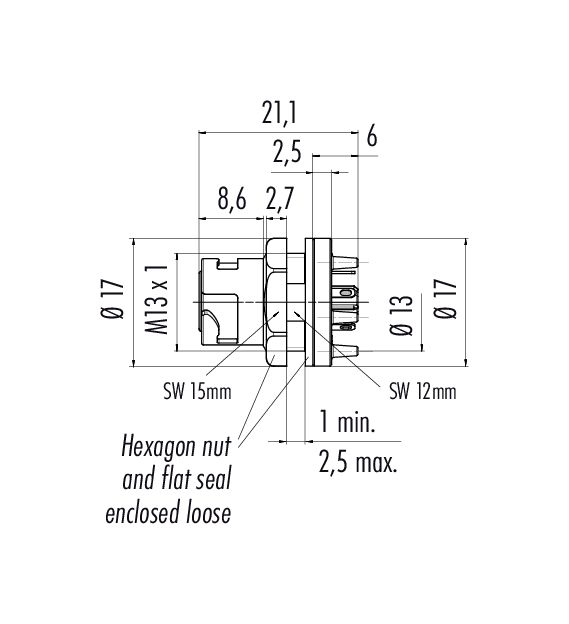

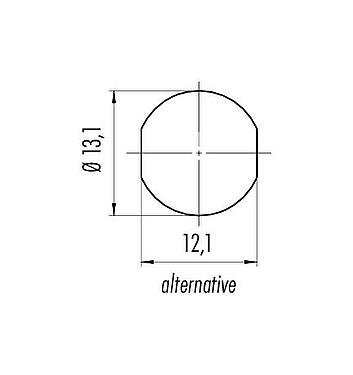

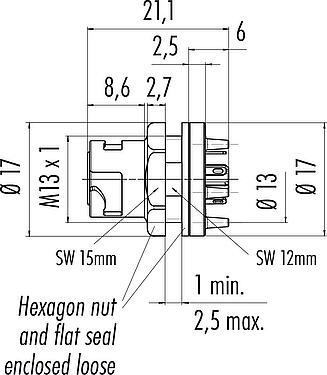

Data sheet
Data sheet 09 0762 180 05
09 0762 180 05
09 0762 180 05
