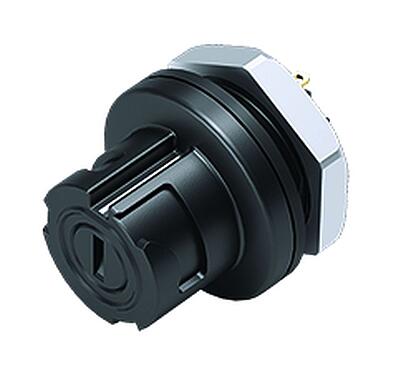

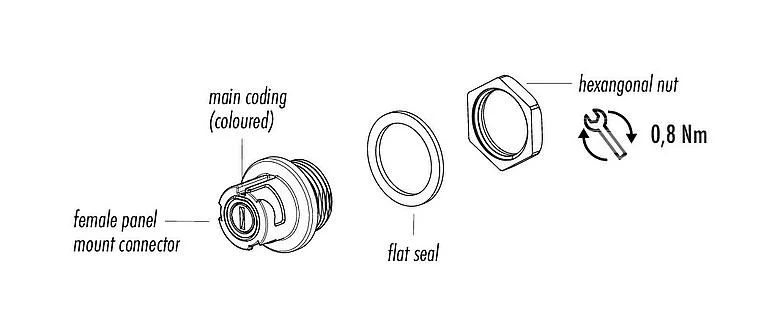

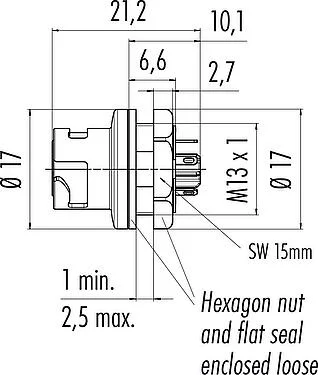

  4. Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged
Part no.: 09 0762 000 05

Bayonet Female panel mount connector, Contacts: 5, unshielded, solder, IP54 unplugged

Bayonet NCC, series 670, Subminiature Connectors
Compare product
General features
Part no. 09 0762 000 05
Connector design Female panel mount connector
Version Connector pin straight
Connector locking system Bayonet
Termination solder
Degree of protection IP54 unplugged
Cross-sectional area 0.25 mm² / AWG 24
Temperature range from/to -25 °C / 85 °C
Mechanical operation > 1000 Mating cycles
Weight (g) 3.85
Customs tariff number 85369010
Country of Origin DE
Rated voltage 50 V
Rated impulse voltage 500 V
Rated current 2.0 A
Pollution degree 2
Overvoltage category II
Insulating material group II
EMC compliance unshielded
Housing material PA
Contact body material PA
Contact material CuSn (bronze)
Contact plating Au (gold)
REACH SVHC CAS 7439-92-1 (Lead)
SCIP number 05251b99-7715-40aa-a9a5-24ebea3a0516
eCl@ss 11.1 27-44-01-09
ETIM 9.0 EC003569
Security notices
  1. The connector must not be plugged or unplugged under load. Non-observance and improper use can result in personal injury.
  2. The connectors have been developed for applications in plant engineering, control and electrical equipment construction. The user is responsible for checking whether the connectors can also be used in other areas of application.
  3. Connectors which are used in circuits with voltages dangerous to the touch may only be installed and used by, or under the supervision of, persons with electrical engineering training, taking into account the applicable regulations and standards.
  4. The user must take suitable safety precautions to ensure that the connector cannot be accidentally disconnected.
  5. Plug connectors with enclosure protection IP67 and IP68 are not suitable for use under water. When used outdoors, the plug connectors must be protected separately against corrosion. For further information on the IP protection classes, please refer to the "Technical Information" download centre.
  6. The plug connector is not suitable for mains voltages Please observe the pollution degree and the overvoltage category. For further information, please refer to the download center "Technical Information".
